Calculate the buoyancy factor from mud weight and pipe material (steel by default), plus the buoyed weight of drill pipe or casing in the fluid.
Related Calculators
- Hydrogen Lift Calculator
- Rock Density Calculator
- River Discharge Calculator
- Cylinder Mass calculator
- All Physics Calculators
Buoyancy Factor Formula
The following static formula gives the fraction of weight remaining for fully immersed material, or open pipe filled with the same fluid inside and outside. Air buoyancy is neglected; sealed or partly immersed objects require a different displacement model:
Variables:
- BF is the buoyancy factor (dimensionless)
- MW is the mud weight (i.e., fluid density)
- MD is the material density (i.e., object density)
To calculate the buoyancy factor, subtract the ratio of the mud weight (fluid density) to the material density (object density) from one. In common drilling practice for steel, a frequently used approximation is BF โ 1 โ (MW / 65.4 ppg).
What is a Buoyancy Factor?
The buoyancy factor is a dimensionless number used to estimate the apparent (buoyant) weight of an object submerged in a fluid. In typical drilling usage, it is the multiplier that converts weight in air to apparent weight in the drilling fluid:
Weight in fluid = BF ร weight in air
A lower buoyancy factor means a greater reduction in effective weight (more buoyant support). A buoyancy factor closer to 1 means less reduction.
How to Calculate Buoyancy Factor?
The following steps outline how to calculate the Buoyancy Factor:
- First, determine the mud weight (MW), i.e., the density of the fluid the object is submerged in.
- Next, determine the material density (MD) of the object (for example, steel is about 65.4 ppg).
- Use the formula BF = 1 – (MW / MD) to calculate the buoyancy factor.

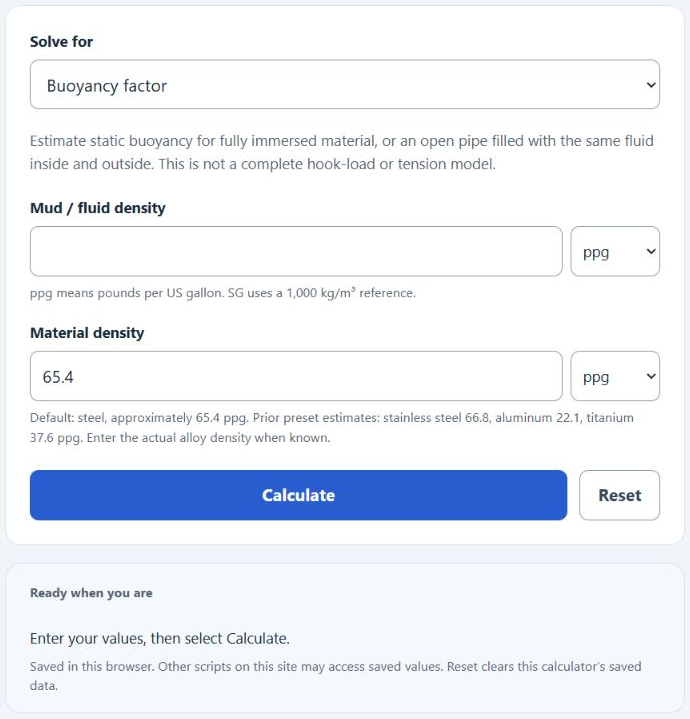

- Finally, choose a mode, enter the mud weight, pick a material (or Custom density) and, for apparent weight, the weight in air, then select Calculate. Steel defaults to approximately 65.4 ppg; use an actual alloy density when known. SG uses a 1,000 kg/mยณ reference. This calculator supports fluid density from zero through the material density; equal densities give neutral buoyancy.
Example Problem:
Use the following variables as an example problem to test your knowledge.
Mud weight (MW) = 12 ppg
Material density (MD) = 65.4 ppg (steel)
BF = 1 – (12 / 65.4) โ 0.8165
