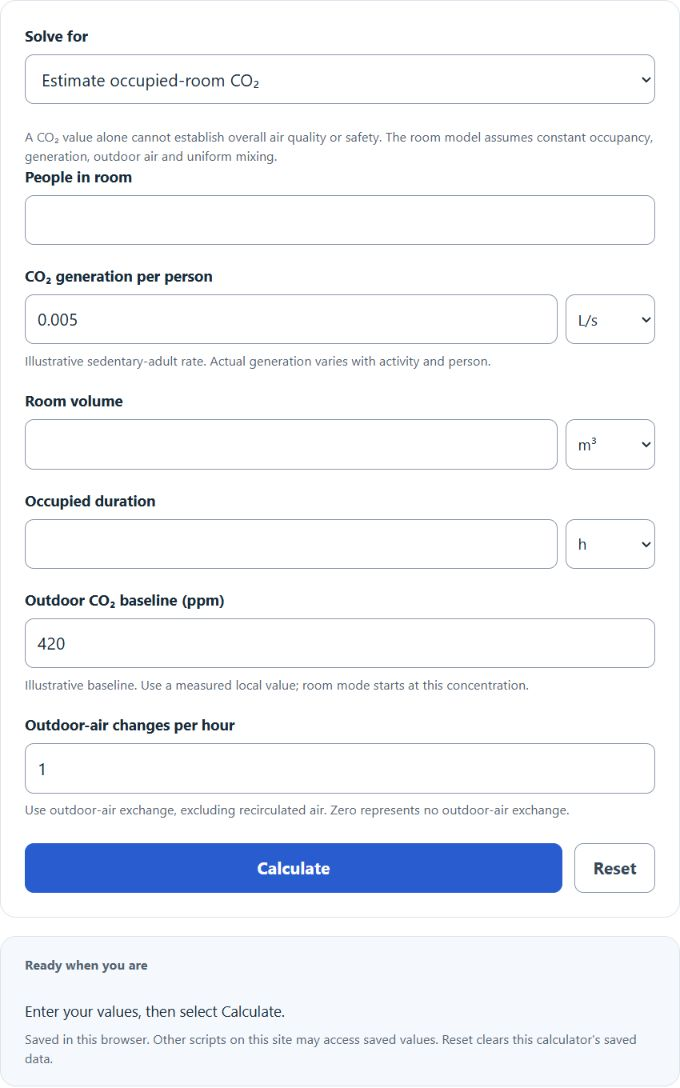

Enter the volume of CO2 produced and the total volume of air into the calculator to determine the CO2 PPM. The ventilation tab calculates the airflow or time required to bring a space to a target CO2 level.
CO2 PPM Formula
The following formula is used to calculate CO2 concentration in parts per million.
CO2 PPM = (Vc / Vt) * 10^6
Where Vc is the volume of CO2 produced and Vt is the total volume of air, both in the same unit (m³, ft³, or liters). Multiplying by 106 converts the dimensionless ratio into parts per million by volume (ppmv). At standard temperature and pressure (20°C, 1 atm), 1 ppm CO2 is equivalent to approximately 1.8 mg/m³.
What Is CO2 PPM?
CO2 PPM (parts per million) measures carbon dioxide concentration in air by expressing how many CO2 molecules exist per one million air molecules by volume. A reading of 1,000 ppm means CO2 comprises 0.1% of that air volume. The unit is used across atmospheric science, building ventilation, industrial safety, and climate research because it remains consistent regardless of temperature or pressure, unlike mass-per-volume measurements.
The outdoor atmospheric baseline as of 2024 to 2025 is approximately 422 to 430 ppm at Mauna Loa Observatory, up from roughly 280 ppm before industrialization. This outdoor value is the practical floor for any ventilated indoor space: no amount of ventilation can bring indoor CO2 below outdoor ambient. Indoors, the concentration rises above this baseline directly in proportion to occupancy, combustion sources, and the ratio of fresh air supply to room volume.
CO2 Concentration Reference Levels
The table below spans outdoor baseline through occupational exposure limits, covering both health guidelines and cognitive performance thresholds identified in controlled studies.
| CO2 Level (ppm) | Setting or Context | Significance |
|---|---|---|
| 280 | Pre-industrial atmosphere | Historical baseline; no longer achievable outdoors |
| 420 to 430 | Outdoor air (2024 to 2025) | Current global average; starting point for indoor ventilation calculations |
| Below 600 | Highly ventilated interior | Harvard COGfx Study found peak cognitive performance below this threshold |
| 600 to 800 | Well-ventilated office or classroom | California Public Health and newer IAQ researchers recommend staying below 800 ppm as the boundary between adequately and poorly ventilated spaces |
| 800 to 1,100 | Acceptable occupied space (ASHRAE guideline) | ASHRAE 62.1-2022 sets the limit at 700 ppm above outdoor air, translating to roughly 1,100 to 1,200 ppm under typical outdoor conditions |
| 1,000 to 2,000 | Crowded or under-ventilated space | Controlled studies show up to 165% drop in attention task scores; drowsiness and headache commonly reported |
| 2,000 to 5,000 | Poorly ventilated occupied room | OSHA concern threshold; nausea, elevated heart rate, and difficulty concentrating possible with sustained exposure |
| 5,000 | OSHA 8-hour permissible exposure limit (PEL) | Legal occupational ceiling for continuous 8-hour work shifts in the US |
| Above 40,000 | Confined space or industrial leak | IDLH (Immediately Dangerous to Life and Health); loss of consciousness risk |
How Occupancy Drives Indoor CO2 Buildup
Human respiration is the dominant indoor CO2 source in most occupied buildings. Measured emission rates vary by activity level: a seated adult at rest exhales roughly 12 to 20 liters of CO2 per hour, a person at light office work produces approximately 47 liters per hour, and someone sleeping generates about 9 liters per hour. These figures come from metabolic measurements published in peer-reviewed ventilation literature and form the basis of occupancy-based ventilation standards.
In a sealed 35 m³ bedroom starting at 420 ppm outdoor baseline, a single sleeping adult raises CO2 to roughly 900 ppm within 4 hours with no ventilation. A 200 m³ classroom holding 30 students at light activity can exceed 1,500 ppm within 30 to 60 minutes without adequate fresh air exchange. These buildup rates explain why CO2 sensors have become standard in school IAQ programs and post-pandemic ventilation upgrades.
The ventilation tab in the calculator above solves the exponential dilution decay equation: C(t) = C_out + (C_0 – C_out) x e^(-Qt/V), where Q is the volumetric fresh air supply rate and V is room volume. This model assumes well-mixed air, which holds reasonably in rooms with ceiling supply diffusers. Rooms with stratified air distribution or displacement ventilation require corrected effectiveness factors, but the well-mixed assumption provides a conservative, practical baseline for most applications.
Ventilation Standards and Monitoring Benchmarks
ASHRAE Standard 62.1-2022 is the primary US ventilation standard for non-residential buildings. Rather than specifying a fixed CO2 limit, it uses a 700 ppm differential above outdoor air as an indirect proxy for adequate per-person ventilation, targeting roughly 10 cubic feet per minute of outdoor air per person in typical office and educational settings. Under 2025 outdoor baselines, this translates to a steady-state indoor limit of approximately 1,120 to 1,130 ppm.
The WELL Building Standard, used in health-focused construction and certification, targets sustained indoor CO2 below 900 ppm during occupied hours. Several states have codified tighter classroom standards: California and Connecticut reference 1,100 ppm as an investigation threshold, and some newer school IAQ laws reference 800 ppm as the operational target. The direction of regulatory movement has been consistently toward lower thresholds as cognitive performance research has accumulated.
CO2 and Cognitive Performance: What the Research Shows
A landmark double-blind study by Allen et al. (2016, Environmental Health Perspectives, Harvard T.H. Chan School of Public Health) placed office workers in controlled environments at three CO2 levels and measured cognitive function across nine domains. Workers scored 15% lower at 945 ppm compared to 550 ppm conditions. At 1,400 ppm, overall cognitive scores dropped roughly 50% in crisis response and information usage dimensions. These were concentrations found routinely in real office buildings, not extreme industrial scenarios.
The mechanism behind this effect remains debated. Some researchers attribute impairment to direct CO2 effects on brain blood flow and pH regulation. Others argue the correlation reflects co-occurring pollutants (volatile organic compounds, particulates) that accumulate alongside CO2 in under-ventilated spaces, with CO2 functioning as a proxy rather than a direct cause. Either interpretation leads to the same practical conclusion: CO2 concentration is a real-time, low-cost indicator of ventilation quality that correlates with measurable performance outcomes in occupied buildings.
