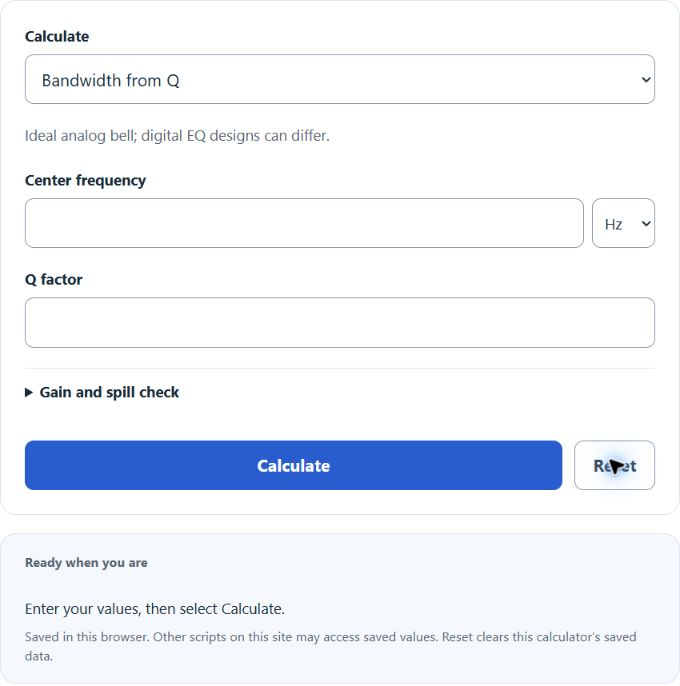

Calculate EQ Q factor, bandwidth in Hz, octave width and the lower and upper band edge frequencies from a center frequency, bandwidth, octaves or two edge frequencies.
- All Physics Calculators
- Bandpass Filter Calculator
- Resonant Frequency Calculator
- Corner Frequency Calculator
- Speaker Impedance Calculator
Eq Q Factor Formula
The Q factor of an EQ band is calculated as:
Q is dimensionless, f_c is the center frequency in Hz, and BW is the width in Hz. This calculator uses nominal half-gain edges of an ideal analog bell: G/2 dB for a nonzero gain G. A bandpass filter’s half-power edges use a different convention.
This can be rearranged to solve for any variable: BW = f_c / Q, or f_c = Q x BW.
What Is Q Factor in Audio EQ?
Q describes a band’s width relative to its center frequency. Here Q = f_c / BW at nominal half-gain edges. Higher Q is narrower; lower Q is wider. EQ designs can use different conventions.
The concept originates from electrical engineering, where Q described the energy storage efficiency of inductors and capacitors in resonant circuits. In audio, it was adopted as equalizers evolved from simple tone controls into parametric designs during the 1960s and 1970s. The term carries the same mathematical meaning: the ratio of stored energy to dissipated energy per cycle, which translates directly to the sharpness of a resonant peak.
In a parametric EQ, Q is one of three user-adjustable parameters alongside frequency and gain. The interplay between these three controls determines how an EQ band reshapes the frequency spectrum. When gain is set to boost, a high Q creates a resonant peak. When gain is set to cut, a high Q creates a narrow notch. This makes Q the primary tool for controlling whether an adjustment is surgical or musical in character.
Q Factor to Octave Bandwidth Reference Table
The relationship between Q and bandwidth in octaves is not a simple reciprocal. It follows a logarithmic conversion formula:
Where N is the bandwidth in octaves and Q is the quality factor. The inverse (octaves to Q) is:
The table below uses the ideal analog bell convention, with octave values calculated from the listed Q before rounding.
| Q Factor | Bandwidth (Octaves) | Typical Use |
|---|---|---|
| 0.5 | 2.54 | Very broad tone shaping |
| 0.67 | 1.99 | Very broad bell, about two octaves |
| 0.71 | 1.89 | Broad bell; low/high-pass Butterworth Q is a separate convention |
| 1.0 | 1.39 | Broad musical EQ moves |
| 1.4 | 1.01 | Approximately one-octave bell bandwidth |
| 2.0 | 0.71 | Moderate precision cuts or boosts |
| 2.87 | 0.50 | Half-octave bandwidth |
| 4.3 | 0.33 | Third-octave bandwidth (31-band graphic EQ) |
| 5.6 | 0.26 | Approximately quarter-octave bandwidth |
| 8.6 | 0.17 | Sixth-octave, tight notch filtering |
| 11.2 | 0.13 | Eighth-octave, feedback suppression |
| 22.4 | 0.06 | Sixteenth-octave, extreme precision |
| 45.0 | 0.03 | Ultra-narrow, test and measurement |
Exactly one octave gives Q = √2 ≈ 1.414214. The rounded setting Q = 1.4 gives about 1.009759 octaves. Q ≈ 4.318473 gives exactly one-third of an octave; Q = 4.3 is an approximation.
How Q Behaves Across Filter Types
Q does not function identically in every filter type. Understanding how Q interacts with each filter shape is essential for effective equalization.
Bell (Parametric/Peaking) Filters: This calculator models a constant-Q analog bell with gain-independent nominal half-gain width. Proportional-Q designs vary width with gain. Digital EQ can also introduce sampling-rate warping; check the device or plugin’s definition.
Notch Filters: Notch filters use very high Q values (typically 10 to 50) to create an extremely narrow rejection band. These are used to eliminate specific problem frequencies such as 50/60 Hz mains hum, monitor feedback frequencies in live sound, or resonant room modes. The depth of a notch filter can exceed -30 dB at its center while leaving frequencies just a few Hz away virtually untouched.
Shelving Filters: In shelving EQ bands, Q controls the steepness of the transition slope rather than a bandwidth in the traditional sense. A low Q shelf has a gradual slope that starts affecting frequencies well before the corner frequency. A high Q shelf creates a resonant bump (overshoot) near the corner frequency before settling to the shelf gain. Many classic analog EQs, such as the Pultec EQP-1A, exploit this resonant shelf behavior to simultaneously boost and cut at the corner frequency, producing a sought-after presence peak.
High-Pass and Low-Pass Filters: For pass filters, Q determines the resonance at the cutoff frequency. A Q of 0.707 (1/sqrt(2)) produces a Butterworth response with no resonant peak and a maximally flat passband. Values above 0.707 introduce a resonant bump at the cutoff, which can add emphasis or character. Values below 0.707 produce a Bessel-like response with a gentler rolloff. In synthesizer design, sweeping the cutoff frequency of a high-Q low-pass filter is the foundation of subtractive synthesis and the classic “filter sweep” sound.
Practical Q Values for Mixing and Mastering
Choosing the right Q value depends on whether the goal is corrective (removing problems) or creative (shaping tone). The following ranges serve as starting points for common mixing tasks:
| Q Range | Bandwidth | Application |
|---|---|---|
| 0.3 to 0.7 | Very wide (about 1.92–3.70 octaves) | Broad tonal tilts, mastering EQ, overall mix brightness or warmth adjustments |
| 0.7 to 1.5 | Wide (about 0.94–1.92 octaves) | Musical boosts and cuts, vocal presence, guitar body, drum tone shaping |
| 1.5 to 4.0 | Medium (about 0.36–0.94 octaves) | Targeted instrument shaping, midrange clarity, boxiness removal |
| 4.0 to 10.0 | Narrow (about 0.14–0.36 octaves) | Surgical problem frequency removal, resonance taming, de-harshness |
| 10.0 to 50.0 | Very narrow (about 0.03–0.14 octaves) | Feedback suppression, hum removal, single-frequency notching |
A widely used technique in mixing is the “sweep and destroy” method: set a narrow Q (around 8 to 12), boost the gain by 10 to 15 dB, then slowly sweep the frequency control across the spectrum. Problem resonances will become obvious as harsh, ringing tones. Once identified, reduce the gain to cut that frequency by 3 to 6 dB. The narrow Q ensures the cut removes only the problematic resonance without thinning out the surrounding frequency content.
In mastering, Q values rarely exceed 2.0. Broad, gentle adjustments preserve the balance and phase coherence of a completed mix. A mastering engineer might use a Q of 0.5 to add 1 dB of air above 10 kHz or a Q of 0.8 to reduce muddiness around 200 to 300 Hz by 1.5 dB. These moves are subtle but shift the overall tonal balance of the track.
Constant-Q vs. Proportional-Q EQ Designs
Not all equalizers handle Q the same way internally, and this distinction has significant practical consequences.
In this constant-Q bell model, fixed Q preserves the nominal half-gain width. Absolute ±3 dB reach changes with gain: it is absent below 3 dB, is the center only at 3 dB, and has two crossings above 3 dB. Zero gain is flat, so its response has no distinct measured band edges.
In a proportional-Q (also called reciprocal-Q or variable-Q) design, the bandwidth changes with the gain setting. At high gain values, the bandwidth is narrow. At low gain values, the bandwidth widens. Many classic analog EQs (such as the API 550 and Neve 1073) exhibit this behavior. The result is that small adjustments affect a wide range for gentle tonal shaping, while large boosts or cuts remain focused. This automatic interaction between gain and bandwidth is a key reason vintage EQs are described as sounding “musical.”
When comparing Q values between different EQ plugins or hardware units, always check whether the design is constant-Q or proportional-Q. A Q setting of 2.0 on one EQ may produce a very different bandwidth curve than the same setting on another, depending on the gain amount and the Q topology.
