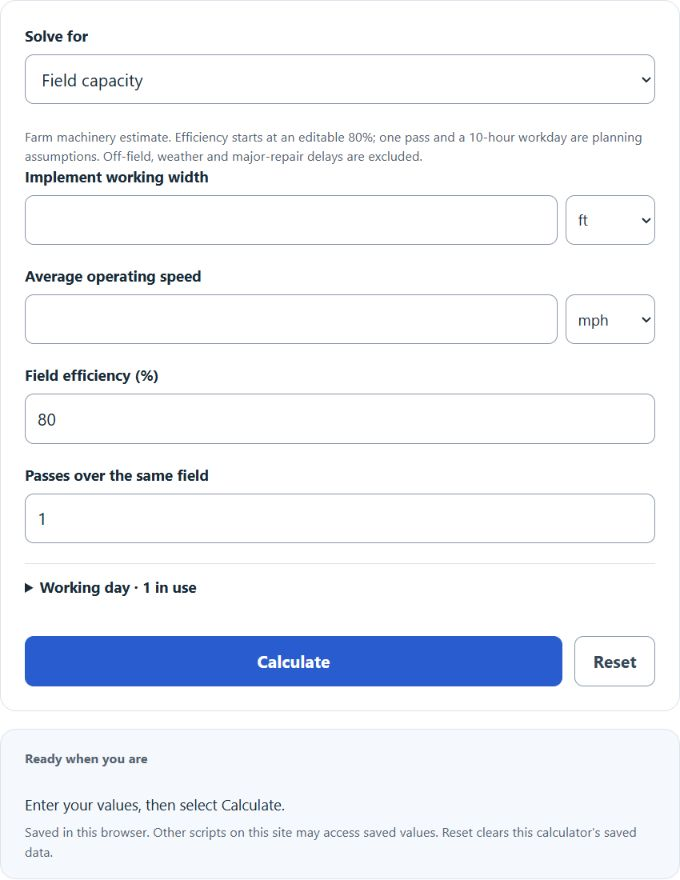

Use the Field Capacity Calculator to estimate how many acres or hectares a farm machine can cover per hour from implement width, travel speed, and field efficiency. You can also calculate the time required to complete a field or the acreage that can be completed within a set number of working hours.
Related Calculators
- Hectares Per Hour Calculator
- Acres Per Hour Calculator
- Bush Hog Acres Per Hour Calculator
- Cost Per Acre Calculator
Field Capacity Formula
In agricultural machinery management, field capacity describes how much land a machine can cover in a given amount of time. It is commonly expressed in acres per hour or hectares per hour.
There are two useful forms of field capacity: theoretical field capacity and effective field capacity.
Theoretical Field Capacity Formula
Theoretical field capacity represents the maximum area a machine could cover if it continuously traveled at the entered speed while using its full working width.
- TFC is theoretical field capacity in acres per hour
- W is implement working width in feet
- S is field speed in miles per hour
- 8.25 is the conversion factor between feet, miles, acres, and hours
The conversion factor comes from dividing 43,560 square feet per acre by 5,280 feet per mile.
Effective Field Capacity Formula
Real machinery cannot normally achieve theoretical capacity for an entire operation. Turning, overlap, filling, unloading, adjustments, and other in-field delays reduce the actual acreage completed per hour.
Combining the equations gives:
- EFC is effective field capacity in acres per hour
- W is working width in feet
- S is operating speed in miles per hour
- FE is field efficiency as a percentage
Metric Field Capacity Formula
When implement width is measured in meters and speed is measured in kilometers per hour, theoretical field capacity can be calculated directly in hectares per hour:
Effective metric field capacity is then:
What Is Field Capacity?
In farm machinery management, field capacity is the rate at which a machine or implement covers land while performing an agricultural operation. It is commonly used when planning tillage, planting, spraying, mowing, harvesting, and other fieldwork.
For example, a machine with an effective field capacity of 12 acres per hour can complete approximately 12 acres of a single-pass operation for each hour it operates under the conditions represented by the field-efficiency value.
Theoretical vs. Effective Field Capacity
Theoretical field capacity is the ideal maximum coverage rate produced by implement width and travel speed alone.
Effective field capacity is the actual estimated work rate after field efficiency is applied.
| Measurement | What It Represents |
|---|---|
| Theoretical field capacity | Maximum continuous coverage from width and speed |
| Field efficiency | Percentage of theoretical capacity achieved during actual field operation |
| Effective field capacity | Estimated actual acreage or hectares completed per hour |
What Is Field Efficiency?
Field efficiency compares a machine’s actual effective capacity with its theoretical maximum capacity.
Field efficiency accounts for time and capacity lost during normal field operation. Examples include turning at the ends of rows, overlap between passes, filling seed or fertilizer, unloading harvested material, clearing plugs, making adjustments, and similar in-field delays.
Because operating conditions and machinery differ, the appropriate field efficiency can vary from one job to another. The calculator therefore allows the efficiency percentage to be entered directly.
How to Calculate Field Capacity
- Determine the implement working width. Measure or obtain the operating width of the machine.
- Determine average field speed. Use the machine’s normal operating speed while performing the task.
- Estimate field efficiency. Account for turns, overlap, filling, unloading, and other normal in-field losses.
- Calculate theoretical capacity. Multiply width by speed and divide by 8.25 when using feet and mph.
- Calculate effective capacity. Multiply theoretical capacity by field efficiency expressed as a decimal.
Field Capacity Example
Suppose a 24-foot tandem disk operates at an average speed of 6 mph with an estimated field efficiency of 80%.
First calculate theoretical field capacity:
Next apply the 80% field efficiency:
The machine therefore has an estimated effective field capacity of approximately 14 acres per hour.
How to Calculate Time Required for a Field
Once effective field capacity is known, the amount of operating time required for a single pass is:
If the same operation must cover the field more than once, include the number of passes:
- T is total operating time in hours
- A is field area in acres
- P is the number of times over the field
- EFC is effective field capacity in acres per hour
Field Capacity With Multiple Passes
Some farming operations require the same field to be covered more than once. If a 100-acre field requires two passes, the machine must perform 200 acre-passes of work.
If its effective capacity is 10 acres per hour:
The machine still covers 10 machine-acres per hour, but only 5 acres of the complete two-pass operation are finished per hour.
How Many Acres Can Be Completed in a Set Time?
To determine the acreage a machine can cover during a known amount of operating time:
For an operation requiring multiple passes:
This is useful when the number of suitable field hours is limited and you want to estimate how many acres can be completely worked during that window.
How Implement Width Affects Field Capacity
At the same travel speed and field efficiency, field capacity is directly proportional to working width.
For example, doubling working width while keeping speed and efficiency unchanged doubles the calculated field capacity.
In practice, wider machinery can sometimes require slower operating speeds or experience different turning and field-efficiency losses, so the other inputs should also reflect actual operating conditions.
How Speed Affects Field Capacity
At a constant implement width and field efficiency, field capacity is also directly proportional to travel speed.
A machine traveling at 6 mph has 20% more theoretical coverage capacity than the same machine traveling at 5 mph. However, the speed entered should represent a practical operating speed that allows the machine to perform the field operation correctly.
Acres per Hour vs. Hectares per Hour
The calculator automatically reports field capacity in both acres per hour and hectares per hour.
- 1 hectare = approximately 2.47105 acres
- 1 acre = approximately 0.404686 hectare
The underlying machinery productivity is unchanged; the two values simply express the same coverage rate using different area units.
Factors That Reduce Actual Field Capacity
Theoretical field capacity rarely represents the long-term work rate of a machine because not every minute in the field is spent moving forward at full width.
Factors that can reduce effective field capacity include:
- Turning at headlands
- Overlap between passes
- Irregular field shape
- Filling planters or fertilizer equipment
- Unloading harvesting equipment
- Clearing plugged equipment
- Machine adjustments
- Operator stops while in the field
- Reduced speed in difficult field conditions
The field-efficiency input is designed to represent these normal in-field capacity losses.
Field Capacity vs. Soil Field Capacity
The term field capacity also has a separate meaning in soil science. Soil field capacity describes the amount of water remaining in soil after excess gravitational water has drained.
This calculator uses the farm machinery meaning of field capacity: the amount of land that agricultural equipment can work per unit of time.
FAQ
What is the formula for field capacity in acres per hour?
Theoretical field capacity is width in feet multiplied by speed in mph and divided by 8.25. For effective field capacity, multiply that result by field efficiency expressed as a decimal.
Why is 8.25 used in the field capacity formula?
The 8.25 conversion factor comes from 43,560 square feet in one acre divided by 5,280 feet in one mile.
What is effective field capacity?
Effective field capacity is the actual estimated area worked per hour after applying a field-efficiency factor to theoretical capacity.
What is theoretical field capacity?
Theoretical field capacity is the maximum coverage rate calculated from implement width and travel speed without allowing for turns, overlap, filling, unloading, adjustments, or similar delays.
What does field efficiency mean?
Field efficiency is the percentage of theoretical field capacity that is achieved during actual operation. It accounts for normal in-field losses such as turning, overlap, filling, unloading, and machine adjustments.
How do I calculate the number of hours needed for a field?
Divide field acreage by effective field capacity. If the machine must cover the field multiple times, multiply the acreage by the number of passes before dividing by field capacity.
How do I calculate acres covered in a day?
Multiply effective field capacity in acres per hour by the number of operating hours available during the day.
Does the calculator include multiple passes across a field?
Yes. Enter the number of times the machine must cover the field. The calculator uses that value when estimating total completion time or the acreage that can be completely finished within an available time.
Does field capacity include travel time to and from the farm?
No. Field efficiency is intended primarily for losses that occur while performing the field operation. Transportation, major repairs, weather delays, and other off-field downtime should be considered separately when building a complete work schedule.
Is this a soil-water field capacity calculator?
No. This calculator uses the agricultural machinery definition of field capacity measured in acres per hour or hectares per hour. Soil field capacity is a different concept describing soil water content after excess gravitational water has drained.
