Calculate gate weight or solve for width, height, or weight per area in metric and imperial units, with multiple leaves and hardware allowance.

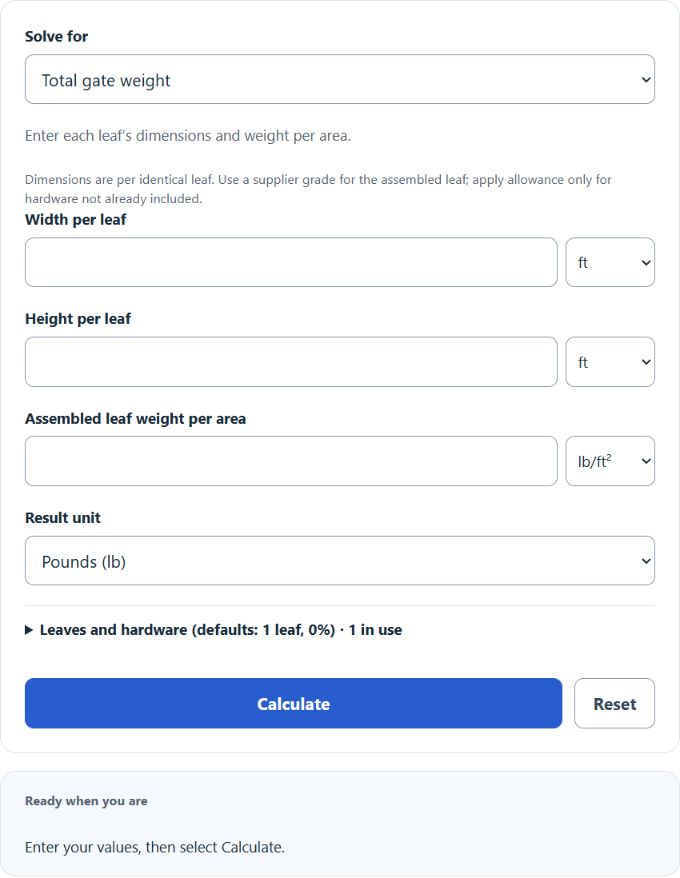

Enter each leaf’s dimensions and weight per area.

Dimensions are per identical leaf. Use a supplier grade for the assembled leaf; apply allowance only for hardware not already included.

Leaves and hardware (defaults: 1 leaf, 0%)

Gate Weight Formula

The gate weight formula estimates the total weight of a gate from its width, height, and weight grade. This supplies a mass estimate for planning; hinge capacity, post loading, track and roller selection, and operator sizing require manufacturer or engineering checks beyond this calculation.

GW = W × H × G × L × (1 + a / 100)

Find the area of one leaf, multiply by its assembled weight per area and identical leaf count L, then apply only additional hardware allowance a (%). The simplified formulas below apply to one leaf with zero allowance.

A = W × H
GW = A × G
Variable Meaning Common Units
GW Gate weight lb, kg
W Gate width ft, m, in, cm, yd
H Gate height ft, m, in, cm, yd
G Gate weight grade lb/ft², kg/m², g/cm²
A Gate area ft², m²

Rearranged Formulas

If you know the total gate weight and need to solve for one missing input, use these equivalent forms.

W = GW / (H × G)
H = GW / (W × G)
G = GW / (W × H)

How to Calculate Gate Weight

  1. Measure the actual gate leaf width.
  2. Measure the gate height.
  3. Determine the gate weight grade as weight per unit area.
  4. Keep all units consistent before calculating.
  5. Multiply width, height, grade, and identical leaf count, then multiply by (1 + additional hardware allowance / 100). Do not count hardware twice.

Choose the requested value from Solve for. Reverse modes use the same leaf count and hardware allowance as the total-weight mode.

Example

For a gate that is 6 ft wide, 3 ft high, with a weight grade of 20 lb/ft²:

GW = 6 × 3 × 20 = 360

The estimated gate weight is 360 lb.

What Gate Weight Grade Means

The weight grade is the average weight carried by each square unit of gate area. It is sometimes based on the complete gate assembly and sometimes based only on the panel or infill material, so it is important to know what is included.

  • If the grade includes the full gate assembly, the formula gives the total gate weight directly.
  • If the grade includes only mesh, pickets, boards, or sheet material, add the frame and hardware separately.
  • For hand calculations, do not mix feet with meters or lb/ft² with kg/m² unless you convert first.
  • Small errors in grade can create large differences in total weight on larger gates.
GWₜₒₜₐₗ = GWₚₐₙₑₗ + GWframe + GWhardware

Why Gate Weight Matters

  • Hinges: Helps verify the hardware can support the static load.
  • Posts and framing: Heavier gates create larger bending and support demands.
  • Rollers and tracks: Sliding systems must be sized for the full moving load.
  • Gate operators: Openers are commonly selected using both gate weight and gate length.
  • Installation planning: Heavier gates may require more labor or lifting equipment.

Common Input Mistakes

  • Entering total gate weight as the grade value.
  • Using the opening width instead of the actual gate width.
  • Leaving out frame members, braces, wheels, or accessories.
  • Using a grade that was estimated for a different material thickness.
  • Rounding the grade too aggressively for heavy steel or solid panel gates.

Practical Notes for Better Estimates

  • Swing gates transfer load mainly into hinges and posts, so accurate weight estimates are especially important.
  • Sliding gates reduce hinge loading, but total weight still controls roller, track, and operator demands.
  • Finishes, ornamental pieces, cladding, and automation hardware can increase the final installed weight.
  • If the gate will see wind or high-cycle operation, hardware selection should consider more than static weight alone.

Gate Weight FAQ

Can this formula be used for wood, aluminum, steel, or chain-link gates?

Yes. The material type does not change the formula. The only requirement is that the weight grade accurately represents the gate’s weight per unit area.

Does this give the exact installed load?

It gives an estimate based on the dimensions and weight grade you supply. The final hardware demand may be higher if accessories, operator forces, wind loading, or safety margins are considered separately.

What if I already know the gate weight and want the required grade?

For one leaf with zero allowance, divide weight by leaf area. With multiple identical leaves or an allowance, also divide by L × (1 + a/100); the calculator applies this factor.

Should I include hardware in the grade?

Include hardware only if your grade value was developed for the full assembly. If the grade is for the panel material alone, add frame and hardware weights separately.
