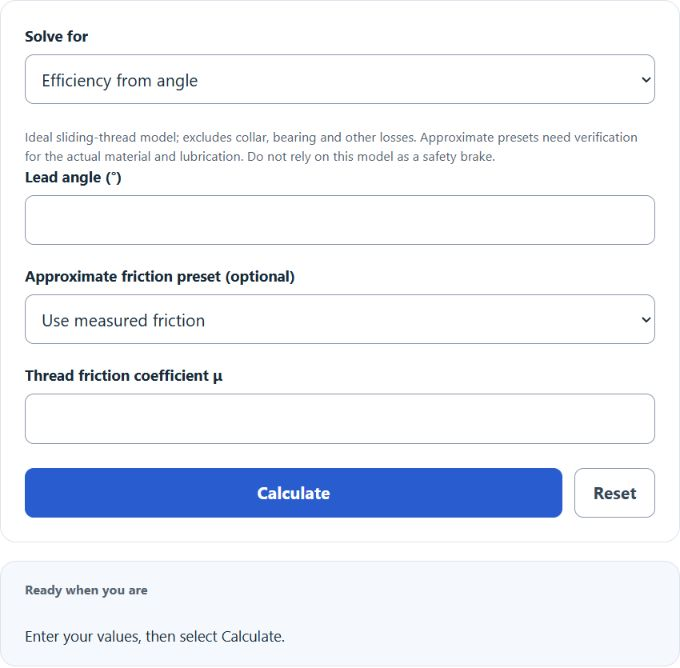

Calculate lead screw efficiency, helix angle, torque, and power from lead, mean diameter, friction, load, and thread form options.

Ideal sliding-thread model; excludes collar, bearing and other losses. Approximate presets need verification for the actual material and lubrication. Do not rely on this model as a safety brake.

Lead Screw Efficiency Formula

The following formula is used to calculate the square-thread Lead Screw Efficiency (raising), neglecting collar/thrust-bearing friction.

Elead = tan(ฮป) / tan(ฮป + arctan(ฮผ)) ร— 100
  • Where Elead is the Lead Screw Efficiency (%)
  • ฮป is the lead angle (sometimes called the helix angle in screw-efficiency formulas), in degrees
  • ฮผ is the coefficient of friction (dimensionless)

How to Calculate Lead Screw Efficiency?

The following example problem outlines how to calculate the Lead Screw Efficiency.

Example Problem #1:

  1. First, determine the lead (helix) angle ฮป (deg). In this example, the angle is given as 50.
  2. Next, determine the coefficient of friction. For this problem, the coefficient of friction is given as 0.65.
  3. Finally, calculate the Lead Screw Efficiency using the equation above:

Elead = tan(ฮป) / tan(ฮป + arctan(ฮผ)) ร— 100

Inserting the values from above and solving the equation (using degrees consistently):

ฯ† = arctan(0.65) โ‰ˆ 33.02ยฐ

Elead = tan(50ยฐ) / tan(50ยฐ + arctan(0.65)) ร— 100 โ‰ˆ 14.58 (%)

FAQ

What is a helix angle and why is it important in calculating lead screw efficiency?

In screw theory, the angle used in the standard efficiency equation is the lead angle (often denoted ฮป): the angle the thread makes with a plane perpendicular to the screw axis. Some references also call this the โ€œhelix angleโ€ in the context of power screws. Efficiency rises to a maximum and then falls as the lead angle increases for a fixed nonzero friction coefficient. Increasing the angle reduces ideal self-locking; actual back-driving also depends on the complete assembly.

If you are using a different convention where the helix angle is measured from the screw axis, that axis-based angle is complementary to the lead angle: ฮป = 90ยฐ โˆ’ ฮฒ.

How does the coefficient of friction affect lead screw efficiency?

The coefficient of friction represents the amount of resistance encountered when one surface slides over another. In the context of lead screws, a higher coefficient of friction means more resistance between the screw threads and the nut, leading to lower efficiency. Conversely, a lower coefficient of friction means less resistance and higher efficiency.

Can lead screw efficiency exceed 100%?

No, lead screw efficiency cannot exceed 100%. Efficiency over 100% would imply that the system produces more energy than it consumes, which violates the principle of conservation of energy. In practical terms, efficiencies will always be less than 100% due to inherent losses like friction.
