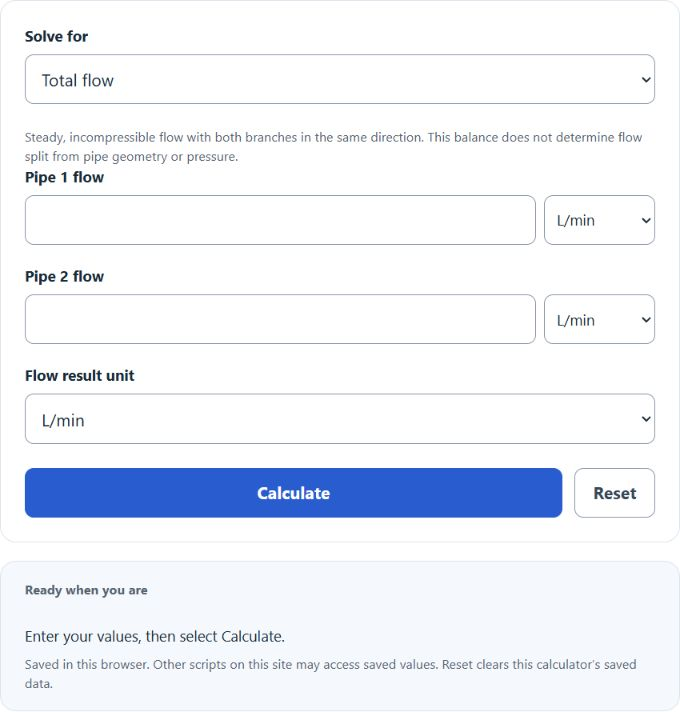

Enter the flow rates in two parallel pipes into the calculator to determine the total flow rate. This calculator helps in understanding the combined flow rate when two pipes are working in parallel.
Related Calculators
- Flow Time Calculator
- Bearing Oil Flow Calculator
- Water Volume Calculator
- Theoretical Velocity Calculator
- All Physics Calculators
Parallel Pipe Flow Formula
When two pipes carry fluid in parallel between the same upstream point and the same downstream point, the combined volumetric flow rate equals the sum of the branch flow rates.
Q_{total} = Q_1 + Q_2If you know the total flow and one branch flow, you can rearrange the equation to find the missing branch.
Q_1 = Q_{total} - Q_2Q_2 = Q_{total} - Q_1| Variable | Description |
|---|---|
| Total Flow Rate | The combined flow through all active parallel branches. |
| Flow Rate in Pipe 1 | The volumetric flow passing through the first branch. |
| Flow Rate in Pipe 2 | The volumetric flow passing through the second branch. |
This relationship works with any consistent flow unit, including gallons per minute, liters per minute, cubic feet per second, or cubic meters per hour.
How Parallel Pipe Flow Works
Parallel flow occurs when fluid has multiple paths between the same two hydraulic nodes. In that arrangement, each branch experiences the same overall head loss between the common inlet and outlet, while the actual branch flow can differ based on pipe resistance.
\Delta h_1 = \Delta h_2 = \cdots = \Delta h_n
The total system flow is the sum of the flows in all branches.
Q_{total} = \sum_{i=1}^{n} Q_iThis calculator uses the two-branch version of that rule. It is ideal when the flow in each pipe is already known and you want the combined flow rate quickly.
How to Use the Calculator
- Enter the flow rate for Pipe 1.
- Enter the flow rate for Pipe 2.
- Make sure both values use the same unit.
- Calculate the total flow rate.
- If solving for a branch flow instead, enter the total flow and the known branch flow, then solve for the missing value.
Example
If Pipe 1 carries 15 gallons per minute and Pipe 2 carries 20 gallons per minute, the total flow is:
Q_{total} = 15 + 20 = 35So the combined flow through the parallel section is 35 gallons per minute.
What This Calculator Does and Does Not Do
This calculator does: add known branch flows together or subtract one known flow from the total to find the other branch.
This calculator does not: determine how flow splits between branches from pipe diameter, length, roughness, valves, fittings, elevation change, or pump conditions. If those values are unknown, a full hydraulic analysis is needed.
Important Design Notes
- Branch flows are not automatically equal just because the pipes are in parallel.
- A larger diameter or shorter branch usually carries more flow because it offers less resistance.
- Valves, bends, tees, and fittings can materially change branch flow distribution.
- If one branch is closed, its flow is zero and the total becomes the flow in the open branch only.
- All entered flow rates should be nonnegative and expressed in matching units before calculation.
Common Applications
- Water distribution manifolds
- Irrigation laterals and branch lines
- Chilled water and hydronic piping systems
- Industrial process piping
- Parallel filtration or treatment trains
- Bypass and redundant piping arrangements
Common Mistakes
- Adding flow rates with different units without converting them first
- Assuming equal flow split in unequal branches
- Using the calculator to estimate branch flow when only pipe size is known
- Ignoring closed valves or partially restricted branches
- Confusing volumetric flow rate with fluid velocity
Frequently Asked Questions
Can this be used for more than two parallel pipes?
Yes. The same idea extends to any number of branches by summing all individual flow rates.
Q_{total} = Q_1 + Q_2 + Q_3 + \cdots + Q_nDo the pipes need to be identical?
No. The pipes can have different sizes, materials, and lengths. This calculator only requires the flow rate in each branch.
Can I use mass flow instead of volumetric flow?
Only if every value is expressed as mass flow in consistent units. Do not mix volumetric and mass flow values in the same calculation.
Why can total flow increase when pipes are added in parallel?
Adding another flow path reduces the overall resistance of the network, which can allow more fluid to pass through the system under the same driving conditions.
