Enter the height of the fluid column, the density of the fluid, and the acceleration due to gravity into the calculator to determine the pressure potential.

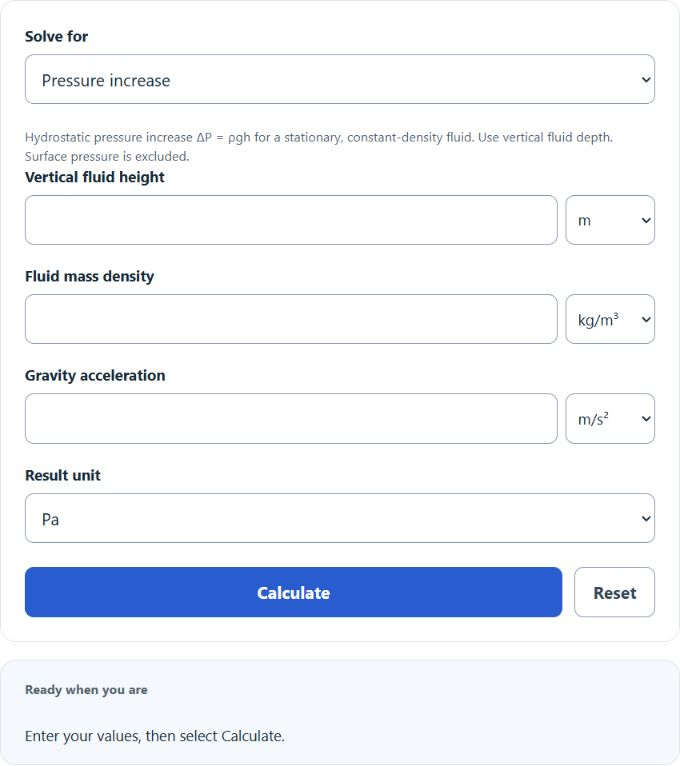

Pressure Potential Calculator

Enter any 3 values to calculate the missing variable

Pressure Potential Formula

In this calculator, pressure potential is the hydrostatic pressure created by the weight of a fluid column. For a stationary fluid with nearly constant density, the pressure depends on only three inputs: fluid density, gravitational acceleration, and the vertical height of the fluid.

PP = \rho \cdot g \cdot h

Where PP is pressure potential, ρ is fluid density, g is gravitational acceleration, and h is the height of the fluid column.

Rearranged Forms

If you know any three values, you can solve for the fourth variable by rearranging the same relationship:

h = \frac{PP}{\rho \cdot g}
\rho = \frac{PP}{g \cdot h}
g = \frac{PP}{\rho \cdot h}

Variable Reference

Symbol Meaning Typical SI Unit What It Changes
PP Pressure potential Pa The pressure generated by the fluid column
ρ Fluid density kg/m³ Higher density means higher pressure at the same height
g Acceleration due to gravity m/s² Higher gravity increases the pressure proportionally
h Vertical fluid height m Greater height produces greater hydrostatic pressure

What This Calculator Is Measuring

This formula gives the pressure caused by elevation head in a fluid. That means:

  • If the fluid column is taller, the pressure potential increases.
  • If the fluid is denser, the pressure potential increases.
  • If gravity is larger, the pressure potential increases.
  • If height is cut in half, the pressure potential is cut in half.

Because the relationship is linear, doubling ρ, g, or h doubles the resulting pressure potential.

How to Calculate Pressure Potential

  1. Determine the density of the fluid.
  2. Determine the local gravitational acceleration.
  3. Measure the vertical height of the fluid column.
  4. Multiply the three values together.
  5. Express the result in the desired pressure unit, such as Pa, psi, or bar.

If you are calculating by hand, keep units consistent. Using density in kg/m³, gravity in m/s², and height in m gives pressure in Pascals.

Example 1: Water Column

For water with density 1000 kg/m³, gravity 9.81 m/s², and height 10 m:

PP = \left(1000\right)\left(9.81\right)\left(10\right) = 98100

The pressure potential is 98,100 Pa, which is 0.981 bar or about 14.23 psi.

Example 2: Solve for Height

If a water column produces 60,000 Pa of pressure potential, the corresponding height is:

h = \frac{60000}{1000 \cdot 9.81} \approx 6.12

The required vertical height is about 6.12 m.

Common Uses

  • Estimating pressure at the bottom of tanks and reservoirs
  • Checking pressure created by standing liquid in a pipe or vessel
  • Comparing pressure differences between fluids of different densities
  • Analyzing manometers and simple hydraulic systems
  • Understanding how depth affects pressure in water, oil, and other liquids

Important Assumptions

  • The fluid is treated as static or nearly static.
  • The density is assumed to remain constant over the height considered.
  • The height used is the vertical distance, not pipe length or diagonal distance.
  • The result is the pressure caused by the fluid column itself, not necessarily the total absolute system pressure.

Common Mistakes

  • Using total fluid volume instead of vertical height
  • Mixing units without converting them first
  • Using the length of a sloped tube instead of the true height difference
  • Entering the wrong density for the fluid being analyzed
  • Confusing hydrostatic pressure with flow-related pressure losses

Quick Interpretation Guide

If this changes… Then pressure potential… Why
Height increases Increases More fluid weight acts above the point
Density increases Increases A denser fluid exerts more weight per unit volume
Gravity increases Increases The fluid column is effectively heavier
Height decreases Decreases There is less vertical fluid head

Frequently Asked Questions

Is pressure potential the same as hydrostatic pressure?

For this calculator, yes. It is the pressure generated by the weight of a stationary fluid column.

Does the shape of the container matter?

No. If the fluid density, gravity, and vertical height are the same, the hydrostatic pressure at a given depth is the same regardless of container shape.

Should I use depth or total pipe length?

Use the vertical height difference. A long pipe run does not increase hydrostatic pressure unless its elevation changes.

Can this formula be used for gases?

Only as a rough estimate over small height differences. Gases often change density with pressure and temperature, so the constant-density form is most reliable for liquids.

Why does the calculator allow different output units?

The physics is the same; only the display unit changes. The underlying calculation still follows the same hydrostatic relationship.
