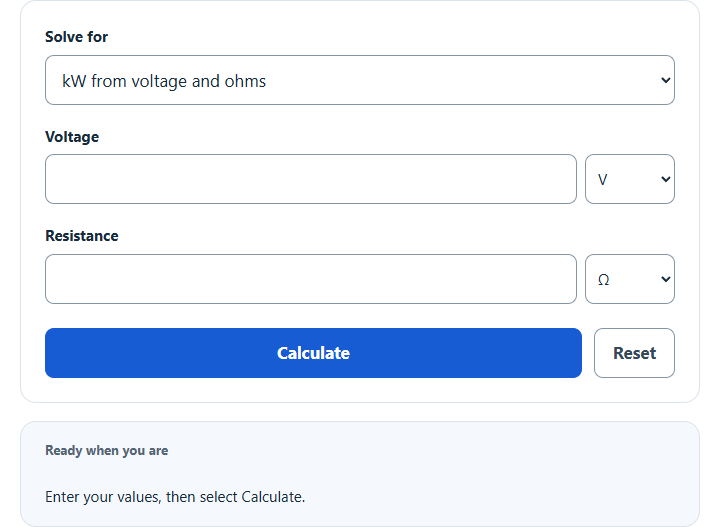

Enter the voltage and resistance into the calculator to determine the power in kilowatts. This calculator uses Ohm’s law to solve for any one of three variables (voltage, resistance, or power) when the other two are known, with full unit conversion support.
Related Calculators
- Applied Voltage Calculator
- Effective Voltage Calculator
- Half Wave Rectifier Voltage Calculator
- Parallel Impedance Calculator
- All Physics Calculators
Resistance to kW Formulas
There are two primary formulas for converting resistance to power, depending on whether you know the voltage or the current.
Using Voltage and Resistance
P (kW) = V^2 / R / 1000
Using Current and Resistance
P (kW) = I^2 \times R / 1000
Variables:
- P is the power in kilowatts (kW)
- V is the voltage in volts (V)
- I is the current in amperes (A)
- R is the resistance in ohms (Ohms)
Both formulas derive from combining Ohm’s law (V = I * R) with the power equation (P = V * I). The voltage-based formula is typically more practical because voltage is a fixed, known quantity in most circuits (120 V, 230 V, or 240 V for residential systems), while current varies depending on the load.
| Resistance (Ohms) | kW @ 120 V | kW @ 230 V | kW @ 240 V |
|---|---|---|---|
| 5 | 2.880 | 10.580 | 11.520 |
| 6 | 2.400 | 8.817 | 9.600 |
| 8 | 1.800 | 6.613 | 7.200 |
| 10 | 1.440 | 5.290 | 5.760 |
| 12 | 1.200 | 4.408 | 4.800 |
| 15 | 0.960 | 3.527 | 3.840 |
| 20 | 0.720 | 2.645 | 2.880 |
| 24 | 0.600 | 2.204 | 2.400 |
| 30 | 0.480 | 1.763 | 1.920 |
| 36 | 0.400 | 1.469 | 1.600 |
| 40 | 0.360 | 1.323 | 1.440 |
| 48 | 0.300 | 1.102 | 1.200 |
| 60 | 0.240 | 0.882 | 0.960 |
| 75 | 0.192 | 0.705 | 0.768 |
| 80 | 0.180 | 0.661 | 0.720 |
| 100 | 0.144 | 0.529 | 0.576 |
| 120 | 0.120 | 0.441 | 0.480 |
| 150 | 0.096 | 0.353 | 0.384 |
| 180 | 0.080 | 0.294 | 0.320 |
| 240 | 0.060 | 0.220 | 0.240 |
| Assumes single-phase resistive load. Formula: P = V squared / R. Results shown in kilowatts (kW) for 120 V, 230 V, and 240 V. | |||
Resistance and Power in Real Appliances
Every resistive electrical device, from a toaster to an industrial furnace, operates at a specific resistance that determines how much power it draws from the circuit. Measuring the resistance of a heating element with a multimeter is one of the most reliable ways to diagnose whether it is functioning correctly. A working element will show a finite resistance value that corresponds to its rated wattage, while a failed element typically reads as open circuit (infinite resistance) or near zero ohms (shorted).
| Appliance | Typical Voltage | Typical Wattage | Expected Resistance (Ohms) | Power (kW) |
|---|---|---|---|---|
| Portable Space Heater | 120 V | 1,500 W | 9.6 | 1.50 |
| Electric Water Heater | 240 V | 4,500 W | 12.8 | 4.50 |
| Oven Bake Element | 240 V | 2,500 W | 23.0 | 2.50 |
| Oven Broil Element | 240 V | 3,400 W | 16.9 | 3.40 |
| Electric Dryer Element | 240 V | 5,400 W | 10.7 | 5.40 |
| Toaster (2-Slice) | 120 V | 850 W | 16.9 | 0.85 |
| Hair Dryer (High) | 120 V | 1,875 W | 7.7 | 1.88 |
| Baseboard Heater (6 ft) | 240 V | 1,500 W | 38.4 | 1.50 |
| Clothes Iron | 120 V | 1,200 W | 12.0 | 1.20 |
| Tankless Water Heater | 240 V | 11,000 W | 5.2 | 11.00 |
| Electric Furnace | 240 V | 20,000 W | 2.9 | 20.00 |
| Immersion Heater | 120 V | 1,500 W | 9.6 | 1.50 |
| Resistance values are approximate and measured at room temperature. Actual values may vary by 10 to 15% due to manufacturing tolerances and temperature effects. | ||||
The pattern in this data reveals an important practical insight: high-wattage appliances on 240 V circuits have surprisingly low resistance values. An electric furnace pulling 20 kW operates at just 2.9 ohms, while a portable space heater at 120 V needs 9.6 ohms for 1.5 kW. This inverse relationship between resistance and power is why high-power appliances are wired to 240 V circuits. Doubling the voltage quadruples the power for the same resistance, allowing thinner wires and lower current draws.
DC Circuits vs. AC Circuits
The formulas P = V squared / R and P = I squared * R calculate true power dissipation in purely resistive DC circuits. In AC circuits, these same formulas apply only to the resistive component of the load. Most real AC loads contain some combination of resistance, inductance, and capacitance, which changes the power calculation.
In AC circuits, the relationship between resistance and power depends on the power factor (PF), a value between 0 and 1 that represents how much of the apparent power actually does useful work. For purely resistive loads like heating elements, the power factor is 1.0, so the DC formulas apply directly. For motors, transformers, and fluorescent lighting, the power factor can range from 0.5 to 0.95, meaning the actual (real) power consumed is less than what the simple resistance formula predicts.
The corrected formula for real power in a single-phase AC circuit is: P (kW) = V * I * PF / 1000. For three-phase systems, this becomes: P (kW) = V * I * PF * 1.732 / 1000, where 1.732 is the square root of 3. The resistance to kW calculator above is accurate for all DC circuits and for AC circuits with purely resistive loads (heating elements, incandescent bulbs, resistive cooking appliances).
| Load Type | Power Factor | Real Power as % of Apparent Power |
|---|---|---|
| Resistive heater / incandescent bulb | 1.00 | 100% |
| LED driver (high quality) | 0.95 to 0.99 | 95 to 99% |
| Induction motor (full load) | 0.80 to 0.90 | 80 to 90% |
| Induction motor (half load) | 0.60 to 0.75 | 60 to 75% |
| Fluorescent lamp (magnetic ballast) | 0.50 to 0.60 | 50 to 60% |
| Arc welder | 0.55 to 0.70 | 55 to 70% |
| Uncompensated induction furnace | 0.60 to 0.70 | 60 to 70% |
| Power factor of 1.0 means the load is purely resistive and the resistance to kW formula applies directly. Lower values indicate reactive components in the circuit. | ||
Joule Heating: Why Resistance Produces Power
When electric current flows through a material with resistance, the moving electrons collide with the atomic lattice of the conductor, transferring kinetic energy that manifests as heat. This process, known as Joule heating (or resistive heating, or I squared R losses), is the physical mechanism behind every electric heater, toaster, and incandescent light bulb. James Prescott Joule first quantified this relationship in 1841, establishing that the heat produced is proportional to the square of the current multiplied by the resistance and the time: Q = I squared * R * t, where Q is the thermal energy in joules and t is time in seconds.
The squared relationship with current is critical to understand. Doubling the current through a fixed resistance produces four times the heat, not twice. This is why overloaded circuits are dangerous: a circuit rated for 15 amps that carries 30 amps does not produce double the heat in the wiring. It produces four times the heat, which can rapidly exceed the insulation’s thermal rating and cause a fire. Circuit breakers and fuses are sized to interrupt the circuit before this happens.
Heating Element Materials and Resistivity
The resistance of a heating element depends on four properties: the material’s resistivity, the wire length, the wire cross-sectional area, and the operating temperature. Different alloys are engineered for different temperature ranges and applications, and the choice of material determines the element’s resistance per unit length, its maximum operating temperature, and its service life.
| Alloy | Composition | Resistivity (micro-ohm cm) | Max Temp (C) | Typical Use |
|---|---|---|---|---|
| Nichrome 80/20 | 80% Ni, 20% Cr | 108 | 1,150 | Toasters, hair dryers, industrial heaters |
| Kanthal A1 (FeCrAl) | Fe, 22% Cr, 5.8% Al | 145 | 1,400 | Kilns, furnaces, high-temp industrial |
| Kanthal D | Fe, 22% Cr, 4.8% Al | 135 | 1,300 | Heat treatment furnaces |
| Copper | Cu (99.9%+) | 1.72 | 200 | Wiring, bus bars (not used as heater) |
| Constantan | 55% Cu, 45% Ni | 49 | 500 | Thermocouples, precision resistors |
| Tungsten | W (99.9%+) | 5.6 | 2,500+ | Incandescent filaments, vacuum furnaces |
| Silicon Carbide (SiC) | Ceramic compound | 100 to 200 | 1,600 | High-temp industrial kilns |
| Molybdenum Disilicide | Ceramic compound | Variable | 1,800 | Glass melting, sintering furnaces |
| Resistivity values at 20 C. Actual resistance increases with temperature for metallic alloys. Nichrome 80/20 is the most widely used alloy for consumer and light industrial heating elements. | ||||
Nichrome 80/20 dominates consumer heating applications because its resistivity (108 micro-ohm cm) is roughly 63 times higher than copper. This means a nichrome wire can achieve the same resistance in a much shorter length compared to copper, making it practical to build compact heating elements. Additionally, nichrome forms a thin, protective chromium oxide layer when heated, which prevents further oxidation and gives the element a long service life even at temperatures above 1,000 C.
For applications requiring even higher temperatures, iron-chromium-aluminum alloys (sold under the Kanthal brand) offer maximum operating temperatures up to 1,400 C. These are standard in ceramic kilns, heat treatment furnaces, and glass manufacturing. At temperatures above 1,600 C, metallic elements cannot survive, and manufacturers switch to ceramic elements like silicon carbide or molybdenum disilicide.
Temperature Effects on Resistance
The resistance of all conductors changes with temperature, which directly affects the power calculation. Metals have a positive temperature coefficient, meaning their resistance increases as they heat up. This is described by the formula: R(T) = R(20) * (1 + alpha * (T – 20)), where R(20) is the resistance at 20 C and alpha is the temperature coefficient per degree C.
For copper wiring (alpha = 0.00393 per degree C), a wire that measures 1.000 ohms at 20 C will measure 1.118 ohms at 50 C, an increase of nearly 12%. This matters in power distribution because the same wiring dissipates more heat as it warms up, creating a positive feedback loop. Proper wire gauge selection accounts for this by rating conductors for their maximum expected operating temperature, typically 60 C, 75 C, or 90 C depending on insulation type.
Nichrome and other heating element alloys are specifically designed to have a low temperature coefficient (around 0.0001 to 0.0004 per degree C), which means their resistance stays relatively stable across their full operating range. A nichrome element that reads 10 ohms cold will measure approximately 10.3 ohms at 800 C. This stability is what makes them predictable and safe for use in thermostatic heating systems.
Wire Gauge, Resistance, and Power Loss
In power distribution (as opposed to heating elements), resistance in wiring represents wasted energy. Every foot of copper wire between the power source and the load has a small resistance that converts some electrical energy to heat. This is called line loss or I squared R loss, and it determines the minimum wire gauge required for a given circuit.
| AWG Gauge | Diameter (mm) | Resistance (ohms/1,000 ft) | Ampacity (60 C insulation) | Power Loss per 100 ft at Rated Amps (W) |
|---|---|---|---|---|
| 14 | 1.63 | 2.525 | 15 A | 56.8 |
| 12 | 2.05 | 1.588 | 20 A | 63.5 |
| 10 | 2.59 | 0.999 | 30 A | 89.9 |
| 8 | 3.26 | 0.628 | 40 A | 100.5 |
| 6 | 4.11 | 0.395 | 55 A | 119.6 |
| 4 | 5.19 | 0.249 | 70 A | 122.0 |
| 2 | 6.54 | 0.156 | 95 A | 140.6 |
| 1/0 | 8.25 | 0.098 | 125 A | 153.1 |
| 2/0 | 9.27 | 0.078 | 145 A | 164.0 |
| 4/0 | 11.68 | 0.049 | 195 A | 186.4 |
| Ampacity values based on NEC Table 310.16 for 60 C rated copper conductors. Power loss calculated as I squared * R for 100 ft of wire (one way). Actual circuit loss includes both conductors, so double for total round-trip loss. | ||||
The AWG system follows a logarithmic scale where every decrease of 3 gauge numbers roughly doubles the wire’s cross-sectional area and halves its resistance. Going from 14 AWG (2.525 ohms per 1,000 ft) to 8 AWG (0.628 ohms per 1,000 ft) reduces resistance by a factor of four. For long wire runs, especially to detached buildings or well pumps, upsizing the wire gauge by one or two steps is common practice to keep voltage drop below the recommended 3% to 5% threshold.
The Complete Ohm’s Law Power Wheel
The resistance to kW conversion is one of twelve relationships in the Ohm’s law power wheel, which combines Ohm’s law (V = I * R) with the power equation (P = V * I) to produce every possible formula relating voltage, current, resistance, and power.
| Solve For | Given V and I | Given V and R | Given I and R |
|---|---|---|---|
| Power (P) | P = V * I | P = V squared / R | P = I squared * R |
| Voltage (V) | (known) | (known) | V = I * R |
| Current (I) | (known) | I = V / R | (known) |
| Resistance (R) | R = V / I | (known) | (known) |
| Additional derived formulas: V = P / I, V = sqrt(P * R), I = P / V, I = sqrt(P / R), R = V squared / P, R = P / I squared. All assume DC or purely resistive AC loads. | |||
Memorizing the full wheel is not necessary. The two foundational equations (V = I * R and P = V * I) can be algebraically rearranged to derive any of the twelve formulas. The calculator at the top of this page handles the three most common cases involving resistance: solving for power, voltage, or resistance when two of the three are known.
