Surfboard Volume Calculator

Surfboard Volume and Litres Formula

V (L) = length (in) × width (in) × thickness (in) × shape factor × 0.016387064.

What This Estimate Represents

Multiplying maximum length, width, and thickness gives a rectangular bounding box. A shaped surfboard occupies only part of that box. The chosen shape factor specifies the fraction included in the estimate. The formula therefore describes a simplified volume model, not a measurement of rails, rocker, concaves, foil, or the complete three-dimensional surface. Use the manufacturer’s stated volume or a measured design volume when available.

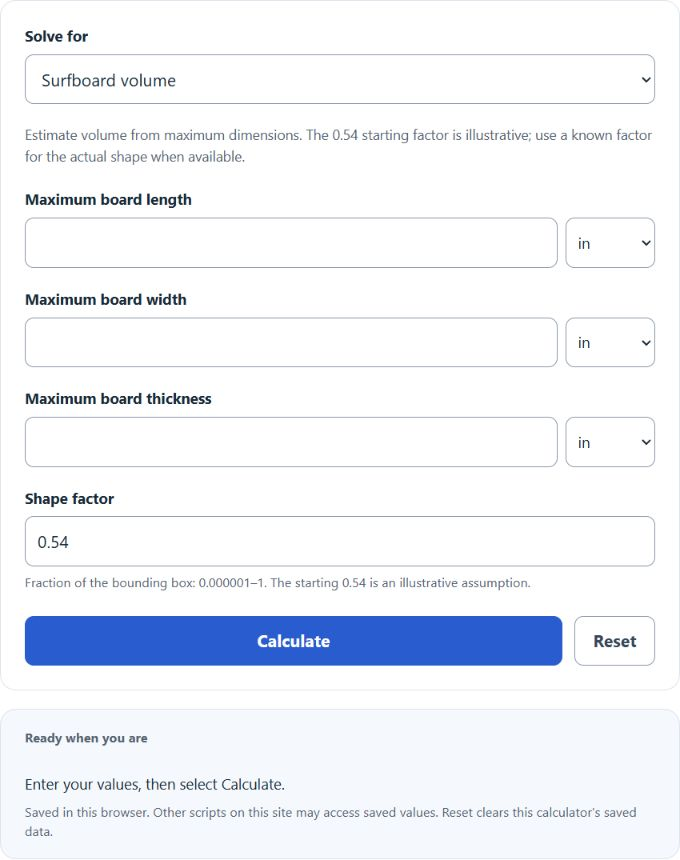

Choose the Missing Value

Select volume, length, width, thickness, or shape factor. Enter the other four quantities. Each dimension has its own unit selector and known volume can be entered in liters or the listed cubic units. Requested dimensions are reported in inches with centimeter equivalents in the detail rows. Requested volume is reported in liters. This keeps the final answers comparable even when source dimensions use different units.

Rearranging the Relationship

A missing dimension equals known liters divided by the other two dimensions, the factor, and 0.016387064, after converting those dimensions to inches. Shape factor equals known liters divided by the bounding-box liters. The latter can help check whether a proposed factor is consistent with a listed volume. An inferred factor greater than one means the stated volume is larger than the maximum-dimension box and the inputs need checking.

Worked Volume and Inverse Example

For 72 in length, 20 in width, 2.5 in thickness, and an illustrative factor of 0.54, the adjusted volume is 1,944 cubic inches. Multiplying by 0.016387064 gives 31.856452416 L, displayed as 31.86 L. Supplying that unrounded volume with the same width, thickness, and factor in length mode returns 72 inches. Using only the rounded 31.86 L input can produce a small inverse difference because the original precision has been lost.

Choosing and Comparing Shape Factors

The 0.54 default is an illustrative starting input, not a universally validated factor for a board type. A known volume and known maximum dimensions can establish the implied factor for that particular board. The result also compares factors 0.05 below and above the chosen factor, bounded at 0 and 1. A zero sensitivity endpoint is an arithmetic comparison, not a positive-volume board factor. Only that factor changes. This comparison shows sensitivity and is not an accuracy interval, confidence interval, or measured minimum and maximum volume.

Units and Geometric Checks

One inch is exactly 2.54 cm. One cubic inch is 0.016387064 L, one cubic foot is 28.316846592 L, and one liter is 1,000 cm³. Convert all three dimensions before multiplying; converting only one dimension cannot produce the correct volume unit. Dimensions and known volume must be positive. This model supports each entered or calculated dimension from 0.000001 to 10,000 inches and a factor from 0.000001 to 1. Width cannot exceed length, and thickness cannot exceed width in this board model.

Interpreting Board Volume

Liters and litres are two spellings of the same unit. More estimated volume does not identify the best board for a particular surfer, nor does it determine a rated carrying weight. Two boards can share maximum dimensions and have different actual volumes because their shapes differ. Likewise, two equal-volume boards can handle differently. Compare this estimate with the shaper’s information and treat dimension-only estimates as approximate.

Reference Table

Sources

Calculator Academy, retained Surfboard Volume and Surfboard Litres bounding-box models, reviewed 2026. Firewire Surfboards, FAQ: What Is Volume?, accessed 2026. Shape3D, Shape3D X User Manual, version 9, accessed 2026.
