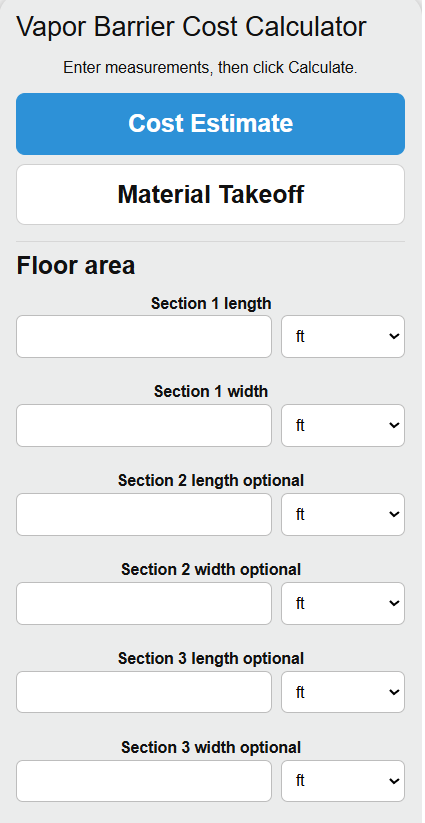

Estimate vapor barrier cost from your own quote or dimensions, and plan area-based membrane rolls, tape, termination bars and optional sealant from your entered layout and product sizes.

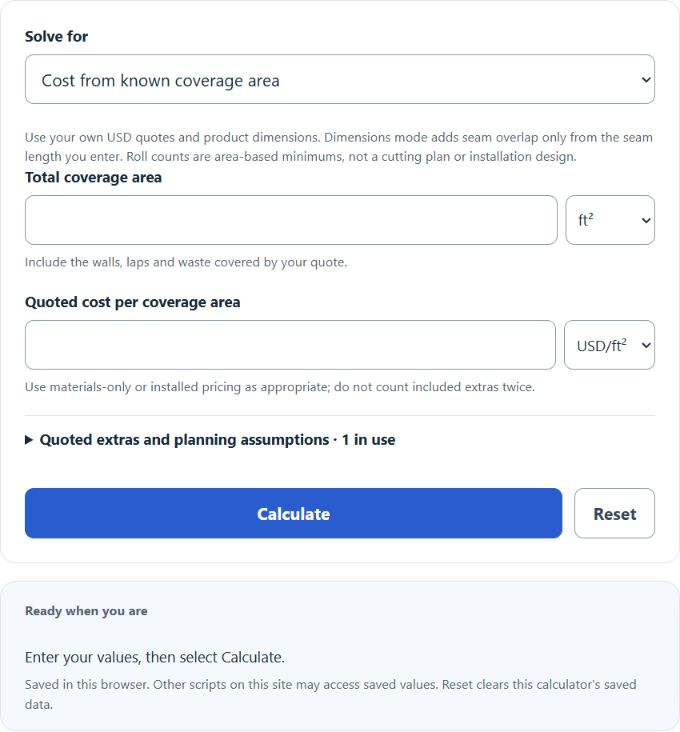

Use your own USD quotes and product dimensions. Dimensions mode adds seam overlap only from the seam length you enter. Roll counts are area-based minimums, not a cutting plan or installation design.

Include the walls, laps and waste covered by your quote.

Use materials-only or installed pricing as appropriate; do not count included extras twice.

Quoted extras and planning assumptions

1 means no adjustment; use only an agreed access or regional factor.

Blank omits duration. Use your installer’s expected productivity.

Related Calculators

Vapor Barrier Cost Formula

The following formula calculates area-based cost from an entered quote. The calculator can also add quoted fixed extras, a deliberate adjustment multiplier and a quoted minimum job charge. No current market price is assumed.

TC = A × C

Variables:

  • TC is the total cost ($)
  • A is the planned coverage area, including any walls, laps and waste within the quote’s scope (square feet)
  • C is the user-entered cost per square foot (USD/ft²), either materials-only or installed according to the quote

Multiply coverage by the quoted rate. With dimensions, coverage = (floor area + outer perimeter × wall height + planned seam length × overlap width) × (1 + waste/100). Enter the measured outer perimeter for multiple sections; shared edges cannot be inferred. Seam length comes from the planned sheet layout, not from perimeter or area divided by roll width. Whole-roll quantities are area-based minimums and require a cutting-layout check.

What is a Vapor Barrier?

A vapor barrier or retarder limits water-vapor movement. A crawl-space ground membrane must be selected and detailed for the project, including laps, penetrations, wall attachment and drainage. It does not by itself prevent all moisture or mold problems. Follow the manufacturer’s instructions and applicable local requirements; this cost and takeoff calculator does not establish an installation design.

How to Calculate Vapor Barrier Cost?

The following steps outline how to calculate the total cost of installing a vapor barrier.

  1. First, select known coverage area, cost from dimensions, or material takeoff. Use non-overlapping floor sections and account for the wall and lap area covered by your quote.
  2. Next, enter your quoted cost per area in USD. For takeoff, enter the actual roll and accessory sizes, planned seam/sealing lengths and any prices you know. Blank prices are omitted from the subtotal.
  3. Next, gather the formula from above = TC = A * C.
  4. Finally, calculate the total cost (TC) in dollars.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

Area to be covered (A) = 500 square feet

Cost per square foot (C) = $0.50. With no extras, multiplier 1 and no minimum charge, 500 × $0.50 = $250. This is an arithmetic example, not a current market quote.
