GC Solvent Vapor Volume Formula

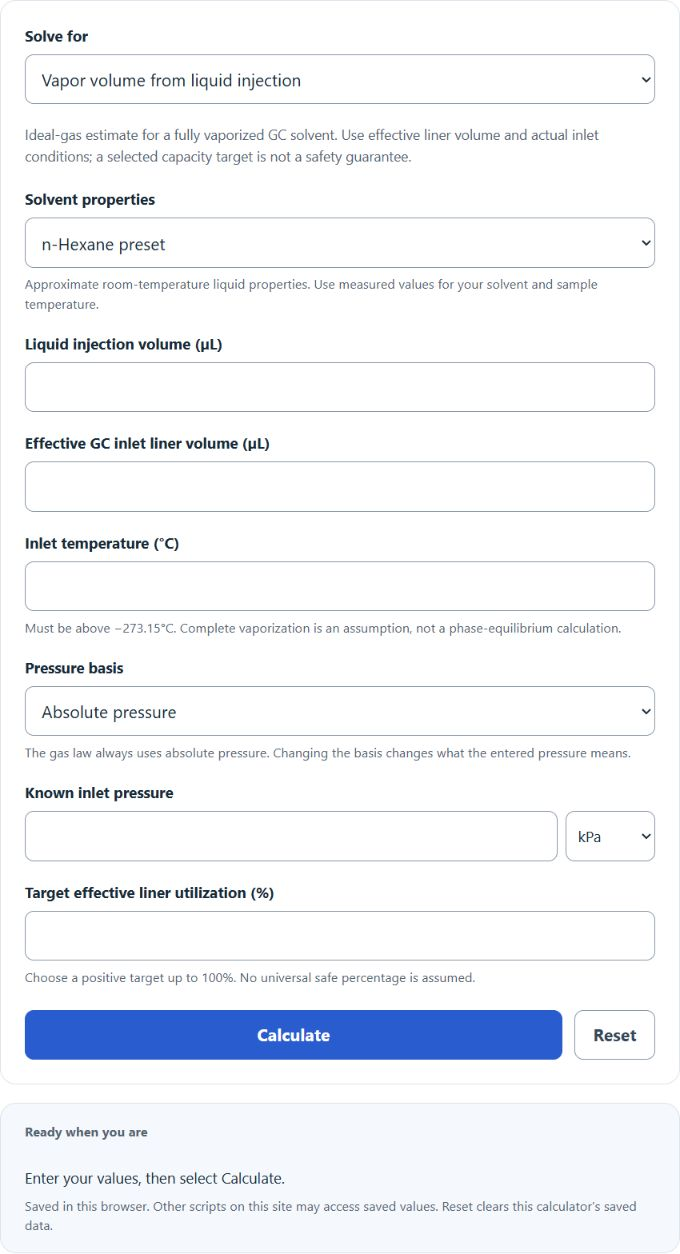

The calculator above uses the ideal-gas equation V = nRT/P. Convert liquid injection from microliters to milliliters, multiply by liquid density to get mass, and divide by molar mass to get moles. Temperature must be in kelvin and pressure must be absolute. Injection and pressure modes rearrange this same equation for the selected effective-liner target.
The estimate assumes complete solvent vaporization. Effective liner capacity, sample composition and actual inlet behavior must be considered when assessing backflash; meeting a selected percentage does not establish safe operation. See Agilent’s backflash method note.
Related gas-temperature scaling at constant pressure

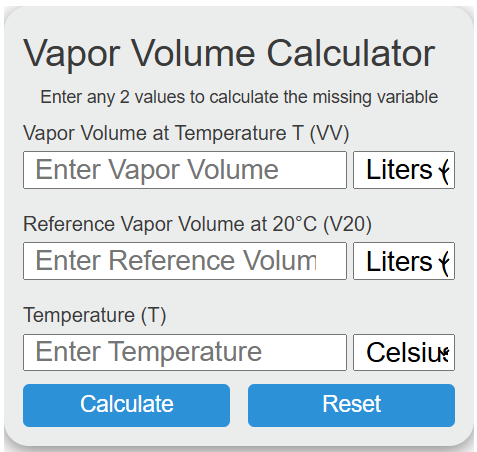

The following formula calculates the vapor (gas) volume at temperature T from a known reference gas volume measured at 20°C, assuming constant pressure and ideal-gas behavior (Charles's law).
VV = V20 × (T + 273.15) ÷ 293.15
Variables:
- VV is the vapor (gas) volume at temperature T (liters)
- V20 is the vapor (gas) volume at the reference temperature 20°C (liters)
- T is the temperature (°C)
This is a direct application of Charles's Law: V/T = constant (at fixed pressure and moles). The denominator 293.15 is simply 20 + 273.15, the reference temperature expressed in kelvin. To use a different reference temperature, substitute the appropriate kelvin value in the denominator. For example, a 0°C reference uses 273.15; a 15°C reference uses 288.15.
What is Vapor Volume?
Vapor volume is the space occupied by a substance in its gas phase at a specified temperature and pressure. The calculator estimates the expansion of an injected GC solvent using liquid density, molar mass and PV = nRT. The separate gas-temperature scaling example above describes a fixed amount of gas already in the vapor phase at constant pressure; it does not by itself calculate liquid-to-vapor expansion.
For a gas already in vapor phase, the volume scales linearly with absolute temperature. At 100°C, a gas occupies 373.15/293.15 = 1.273 times its volume at 20°C -- a 27.3% increase. At -40°C, the same gas contracts to 233.15/293.15 = 0.795 of its 20°C volume -- a 20.5% reduction. These ratios are independent of the specific gas identity as long as ideal behavior holds.
Reference Temperature Standards by Industry
Reference conditions must be stated with the reported gas volume. The examples below distinguish a temperature reference from a complete standard, which also specifies pressure and may specify humidity. IUPAC’s standard conditions for gases use 0°C and 100 kPa. ISO 13443 addresses reference conditions for natural gas.
| Reference Temperature | Standard / Body | Primary Application |
|---|---|---|
| 0°C (273.15 K) | IUPAC STP: 100 kPa absolute | Laboratory chemistry, textbooks |
| 15°C (288.15 K) | ISO 13443 natural gas | Natural gas, with the specified pressure and humidity basis |
| 20°C (293.15 K) | Explicit 20°C reference | This page’s constant-pressure scaling example |
| 25°C (298.15 K) | Explicit 25°C reference | Use when specified by the source or measurement method |
| 60°F (15.6°C) | Contract or method reference | Confirm absolute pressure and dry/wet basis |
For the same amount of ideal gas at fixed pressure, its volume at 20°C is approximately 1.7% larger than its volume at 15°C (293.15/288.15 = 1.017). Confirm both reference temperature and pressure before converting a reported volume.
Temperature-Volume Scaling: Key Reference Points
The following values show the Charles's law multiplier relative to a 20°C reference for temperatures commonly encountered in industrial and laboratory settings. Multiply any gas volume measured at 20°C by the factor shown to obtain the volume at the target temperature (at the same pressure).
| Temperature | Kelvin | Multiplier vs. 20°C | Volume Change |
|---|---|---|---|
| -196°C (liquid N2 boiling point) | 77.15 K | 0.263 | -73.7% |
| -40°C | 233.15 K | 0.795 | -20.5% |
| 0°C | 273.15 K | 0.932 | -6.8% |
| 20°C (reference) | 293.15 K | 1.000 | -- |
| 37°C (body temperature) | 310.15 K | 1.058 | +5.8% |
| 100°C | 373.15 K | 1.273 | +27.3% |
| 200°C | 473.15 K | 1.614 | +61.4% |
| 500°C | 773.15 K | 2.637 | +163.7% |
| 1000°C | 1273.15 K | 4.343 | +334.3% |
Real-World Applications
HVAC and ventilation design. Duct sizing and fan selection depend on the volumetric flow rate at the operating temperature of the air stream, not at a laboratory reference. A 1,000 L/min airflow at 20°C becomes approximately 1,273 L/min when the air is heated to 100°C in a drying oven. Undersizing ductwork for the actual operating temperature creates pressure drop problems and energy waste.
Natural gas custody transfer. Gas meters measure volume at the meter’s temperature and pressure. Converting that volume to a specified reference basis requires both conditions and, where relevant, compressibility and humidity corrections. At the same pressure, the same quantity of ideal gas has a smaller volume at −20°C than at a warmer reference temperature.
Compressed gas cylinder management. Industrial cylinders are rated by their contents at standard conditions. As ambient temperature changes, the cylinder pressure changes (governed by Gay-Lussac's law for rigid containers) but the moles of gas are constant. When gas is released and expands at ambient temperature, the volume delivered per unit pressure drop depends on the ambient temperature, which matters for flow rate consistency in laboratory and medical gas applications.
Concentration and ventilation measurements. Conversions involving gas volume or mass concentration depend on temperature, absolute pressure and the stated reference conditions. Use the conditions required by the applicable measurement method; a temperature-only correction is insufficient when pressure also changes.
Liquefied-gas release modeling. A liquid can produce a much larger vapor volume after vaporization. Estimating a release also requires substance properties, phase behavior, pressure and environmental conditions. This GC solvent calculator is not a release or dispersion hazard model.
When Charles's Law Is Accurate and When It Is Not
Ideal-gas temperature scaling is a model rather than a universal accuracy guarantee. Its suitability depends on the substance, temperature, absolute pressure and whether the material remains a single gas phase. Important limitations include the following.
High pressure. Real-gas volumes can differ from ideal predictions. The compressibility factor can be below or above 1 depending on the gas and conditions. Use suitable property data or a validated equation of state when ideal-gas error matters.
Near the critical point or saturation curve. Real-gas behavior and phase changes can invalidate simple temperature scaling. Use suitable property tables or an equation of state for the specified substance and conditions, especially near condensation or critical regions.
Polar and associating vapors at moderate conditions. Water vapor, ammonia, and hydrogen fluoride exhibit significant intermolecular hydrogen bonding that reduces their effective volume relative to ideal predictions at temperatures closer to their boiling points. For engineering calculations involving these substances at low temperatures or high concentrations, real-gas equations of state should be used.
Use the ideal-gas results as estimates. Validate the model and effective liner volume for the GC method, and use appropriate property data when real-gas or phase-equilibrium effects are material.
