Enter the current and the resistance into the calculator to determine the voltage loss in a circuit. This calculator helps in estimating the voltage drop across a component or section of a circuit.

Voltage Loss Calculator

Enter any 2 values to calculate the missing variable

Related Calculators

Voltage Loss Formula

Voltage loss, also called voltage drop, is the amount of electrical potential that is lost as current moves through a resistance. For a purely resistive path, it is calculated directly from Ohm’s Law:

V_{loss} = I \times R

Where:

  • Vloss = voltage loss in volts
  • I = current in amperes
  • R = resistance in ohms

If you need to solve for a different variable, the same relationship can be rearranged:

I = \frac{V_{loss}}{R}
R = \frac{V_{loss}}{I}

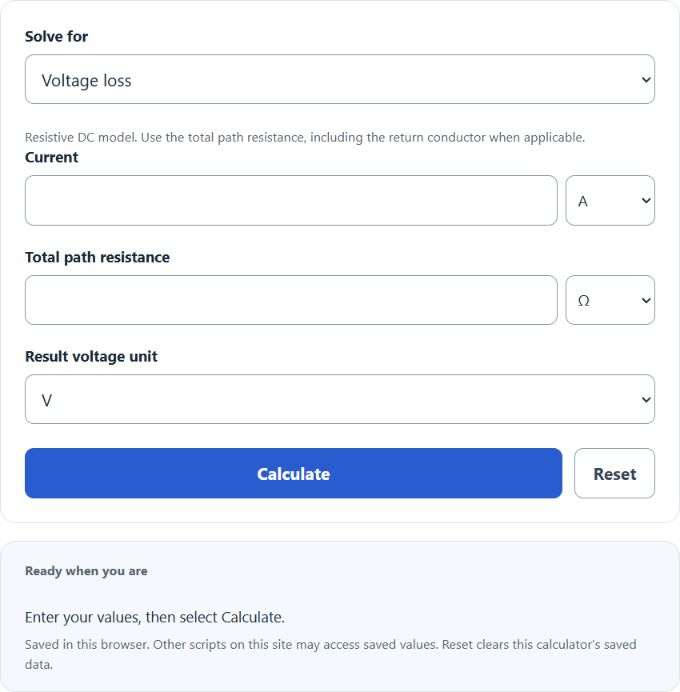

How to Use the Voltage Loss Calculator

  1. Enter any two known values: current, resistance, or voltage loss.
  2. Select the correct units for each value.
  3. Click Calculate to solve for the missing variable.
  4. Review the result and confirm that the units match your circuit analysis.

This calculator is most useful for simple DC circuits, resistive loads, test setups, wiring checks, and quick Ohm’s Law verification.

What Voltage Loss Means in a Circuit

Whenever current flows through a conductor, resistor, connector, fuse, or trace, some voltage is dropped across that resistance. That lost voltage is no longer available to the load. As voltage loss increases, the load receives less operating voltage, which can reduce performance, cause dim lights, slow motors, create heat, or lead to improper equipment operation.

If the supply voltage is known, the voltage at the load can be estimated by subtracting the drop:

V_{load} = V_{source} - V_{loss}

When evaluating system efficiency, it is often helpful to express the drop as a percentage of the source voltage:

\%\,Loss = \frac{V_{loss}}{V_{source}} \times 100

Example Calculation

If a circuit carries 5 A of current through 2 Ω of resistance, the voltage loss is:

V_{loss} = 5 \times 2 = 10 \, V

That means 10 V is dropped across the resistive path. If the source voltage were 24 V, the load would receive:

V_{load} = 24 - 10 = 14 \, V

So even a moderate resistance can create a large voltage drop when current is high.

What Increases Voltage Loss?

  • Higher current: More current produces a larger drop across the same resistance.
  • Higher resistance: Longer wires, smaller wire sizes, and poor connections increase resistance.
  • Long cable runs: As conductor length increases, total resistance rises.
  • Undersized conductors: Smaller cross-sectional area means greater resistance.
  • Heat: Many conductors increase in resistance as temperature rises.

How to Reduce Voltage Loss

  • Use a larger wire gauge to reduce resistance.
  • Shorten the conductor length where possible.
  • Lower the current demand by redistributing loads.
  • Improve terminations, splices, and connector quality.
  • Use appropriate system voltage and design margins for long runs.

Practical Notes

This calculator applies the basic resistive form of Ohm’s Law. In real systems, actual voltage loss may also be affected by connector quality, temperature, material type, and in AC circuits, impedance rather than resistance alone. For highly accurate power-distribution design, those factors should be considered in addition to this simplified calculation.

Common Unit Relationships

  • 1 kΩ = 1,000 Ω
  • 1 MΩ = 1,000,000 Ω
  • 1 kA = 1,000 A
  • 1 V = 1,000 mV

Frequently Asked Questions

Is voltage loss the same as voltage drop?

Yes. In most circuit discussions, the terms are used interchangeably to describe the reduction in voltage across a resistance or impedance.

Why does current matter so much?

Because voltage loss is directly proportional to current. If resistance stays constant and current doubles, the voltage loss also doubles.

Can this be used for wire runs?

Yes, as long as you know the total resistance of the wire path. For long conductors, remember that the complete path often includes both outgoing and return conductors.

Does a higher resistance always mean a larger drop?

Yes, when current is present. With no current flow, the voltage loss across a resistance is zero.

Is this suitable for AC circuits?

It can be used as a simple estimate for resistive AC situations, but full AC voltage drop analysis may require impedance, power factor, and reactance.
