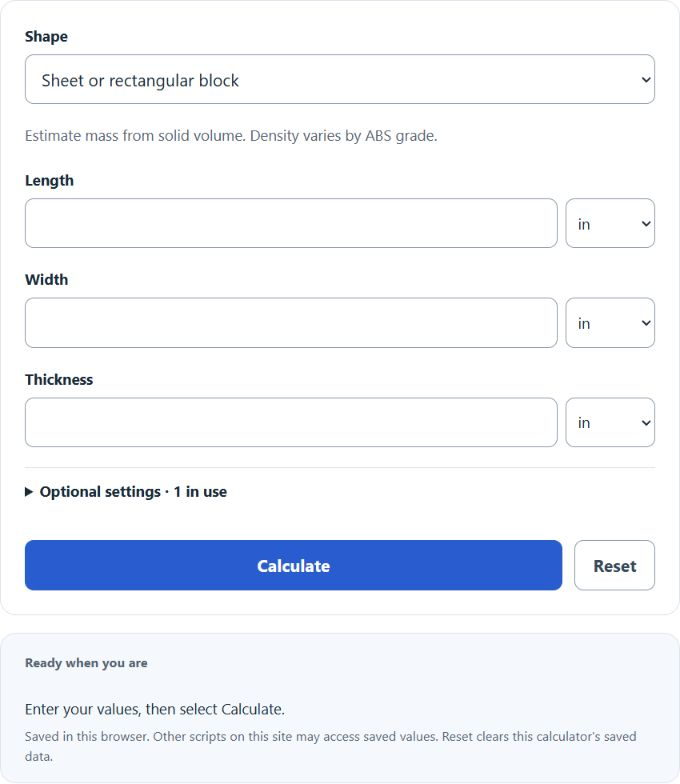

Select the shape of the ABS and enter the required variables. The calculator will evaluate and display the ABS weight.
- All Chemistry Calculators
- All Weight Calculators
- Nylon Weight Calculator
- Acetal Weight Calculator
- Polycarbonate (PC) Weight Calculator
ABS Weight Formulas
The following formulas are used to calculate the weight of ABS in different shapes.
ABS Flat Sheet Weight Formula = L * W * T * d
ABS Round Bar Weight Formula = pi * D^2/4 * L * d
ABS Square Hollow Tube Weight Formula = [W^2-(W-2T)^2] * L * d
ABS Round Hollow Tube Weight Formula = pi * (R^2-r^2) * L * d
ABS Square Angle Weight Formula = (2*W*T – T^2) * L * d
ABS T bar Weight Formula = (W*T + (H-T)*T) * L * d
ABS C Channel Weight Formula = (2*W*T1 + (H + 2*T1)*T2) * L * d
Variables used in these equations:
- L is the length
- W is the width
- H is the height (for T‑bar). For C channel, H is the inner height (clear opening between flanges).
- d is the density
- D is the diameter
- T is the thickness
- R is the outer radius
- r is the inner radius
- T1 is the channel flange thickness (thickness along the width)
- T2 is the channel web thickness (thickness along the height)
The calculator converts all lengths to inches and density to lb/in³ internally. You can enter lengths in inches, millimeters, or centimeters, and density in lb/in³, g/cm³, or kg/m³.
What is the density of ABS?
A typical density of ABS is 0.03793366 lbs/in^3.
