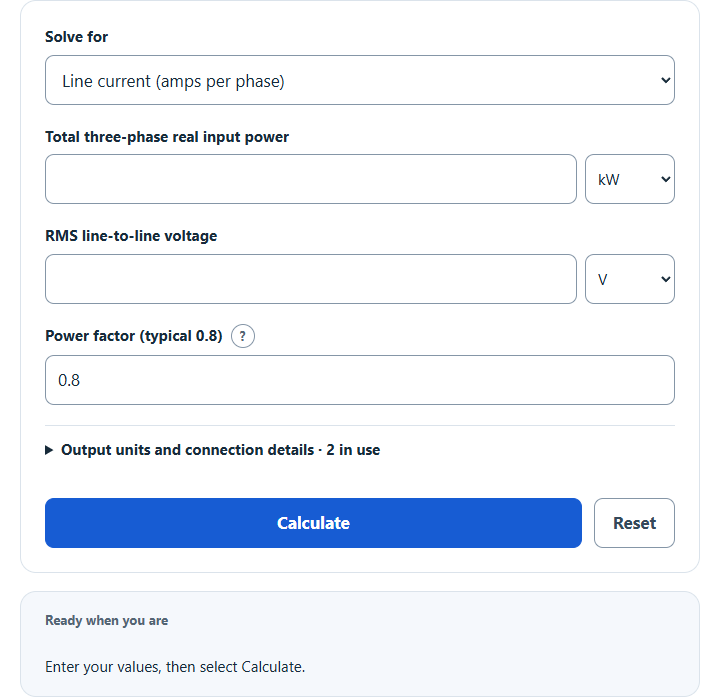

Calculate amps per phase for a three-phase load from kW and line voltage with a typical 0.8 power factor, or solve for power, voltage or power factor.

0.8 is the standard rating basis for motors and generators; use 1 for resistive loads such as heaters, or your measured PF.

Output units and connection details

Calculator Functions

FunctionWhat it doesWhat it requires
Line current (amps per phase)Finds the RMS current in each supply conductor of a balanced three-phase loadRequires the total real power, the line-to-line voltage and the power factor
Total real three-phase powerFinds the real power a balanced three-phase load drawsRequires the line-to-line voltage, the line current and the power factor
Line-to-line voltageFinds the supply voltage that matches a known power and currentRequires the total real power, the line current and the power factor
Power factorFinds the ratio of real power to apparent powerRequires the total real power, the line-to-line voltage and the line current

Power goes in as W, kW or MW, voltage as V or kV and current as mA, A or kA. The power factor starts at 0.8 and can be changed to a measured value or to 1 for a resistive load such as a heater. Every result also lists the apparent power in kVA and the real power per phase, and Line current (amps per phase) adds amps per kW. Choosing a wye or delta connection adds the branch voltage and branch current.

Amps Per Phase Formulas

I = P ÷ (√3 × V × PF) [1]
IRMS line current in each of the three supply conductors (A)
PTotal real input power of the three-phase load (W, so kW × 1,000)
VRMS line-to-line voltage (V)
PFPower factor as a decimal, above 0 and at most 1

The U.S. Department of Energy writes the same relationship as power in kW = V × I × PF × √3 ÷ 1,000, with the voltage and current each averaged over the three phases [1]. Each function below solves it for a different quantity.

Line current (amps per phase)

The formula above applies directly. A 50 kW load on a 400 V supply at a power factor of 0.8 draws 50,000 ÷ (√3 × 400 × 0.8) = 90.21 A in each conductor. Amps per kW is that current divided by the power in kW, here 1.804 A/kW. The three conductor currents are not added together: “amps per phase” is the current in one conductor.

Total real three-phase power

P = √3 × V × I × PF

At 480 V, 100 A and a power factor of 0.85, the load draws √3 × 480 × 100 × 0.85 = 70,667.67 W, or 70.67 kW. A power factor of 0 is accepted here and gives 0 kW of real power.

Line-to-line voltage

V = P ÷ (√3 × I × PF)

A 30 kW load that draws 45 A at a power factor of 0.8 is on a supply of 30,000 ÷ (√3 × 45 × 0.8) = 481.13 V line to line.

Power factor

PF = P ÷ (√3 × V × I)

A load that takes 22.9 kW at 469.7 V and 37 A has a power factor of 22,900 ÷ (√3 × 469.7 × 37) = 0.761. A result above 1 is rejected, because real power cannot exceed apparent power, so one of the three inputs is wrong.

Apparent power and connection details

S = √3 × V × I

S is the apparent power in VA, shown as kVA, and real power per phase is P ÷ 3. In a balanced wye (star) connection each branch sees V ÷ √3 and carries the full line current. In a balanced delta connection each branch sees the full line-to-line voltage and carries the line current ÷ √3.

Limits of This Estimate

  • The formula assumes a balanced load with the same voltage, current and power factor on all three phases. For measured values that differ slightly between phases, the Department of Energy method averages the three readings first [1].
  • Power is electrical input power. A motor nameplate in kW or hp is shaft output, which is lower than the input by the motor efficiency.
  • The result is a steady running current. It does not cover starting current, and it does not size conductors, breakers or fuses or show that an installation meets code.
  • A power factor of 0.8 is a common assumption, not a measurement. The current changes in inverse proportion to the power factor entered.

Sources

  1. U.S. Department of Energy, Determining Electric Motor Load and Efficiency, Equation 1: three-phase power from line-to-line voltage, line current and power factor
