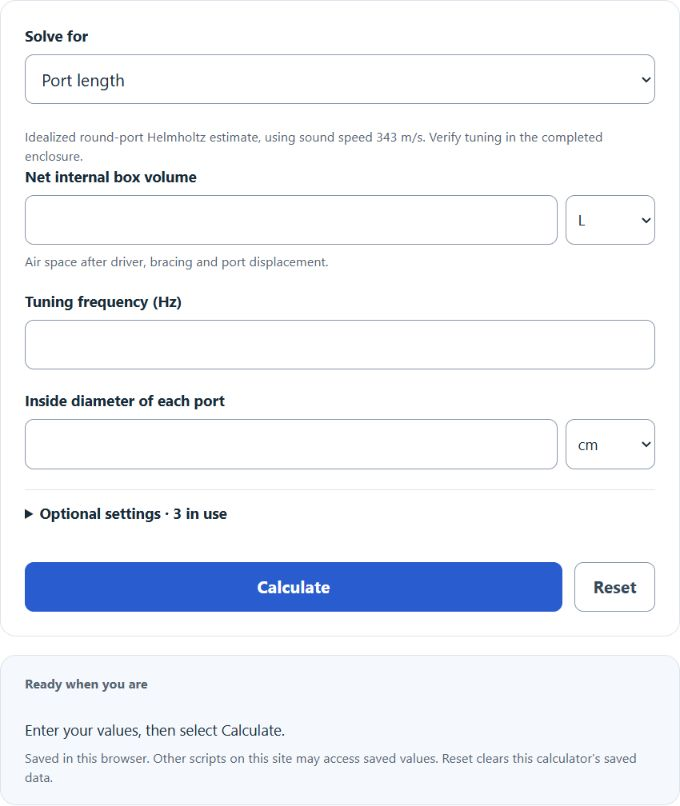

Enter the volume of the speaker box, the cross-sectional area of the port, and the effective port length into the calculator to determine the tuning frequency of a bass reflex (ported) speaker. This calculator can also evaluate any of the variables given the others are known. (It assumes the speed of sound in air is 343 m/s, which is approximately correct at 20 °C.)

Related Calculators

Bass Reflex Formula

The following idealized Helmholtz-resonator formula is commonly used to estimate the tuning frequency of a bass reflex (ported) speaker enclosure.

F_b = \frac{c}{2\pi} \sqrt{\frac{A}{V_b \cdot L_{eff}}}

F_b is the tuning frequency of the bass reflex port (Hz)
c is the speed of sound in air (approximately 343 m/s at 20°C)
A is the cross-sectional area of the port opening (m²)
V_b is the internal (net) volume of the speaker enclosure (m³)
L_eff is the effective acoustic length of the port (m), equal to the physical tube length plus end-correction factors that account for the air mass vibrating just beyond each open end

To calculate the tuning frequency, divide the speed of sound by 2π, then multiply by the square root of the port area divided by the product of the enclosure volume and the effective port length. This formula treats the port and enclosure as a lumped-element Helmholtz resonator, which is accurate when the port dimensions and enclosure size are small relative to the wavelength at the tuning frequency.

What Is a Bass Reflex Speaker?

A bass reflex speaker — also called a ported or vented enclosure — is a loudspeaker cabinet design that uses a carefully sized opening (the port or vent) to extend low-frequency output beyond what a sealed enclosure of the same volume can achieve. The port connects the interior air volume of the cabinet to the outside, creating a Helmholtz resonator. At the tuning frequency, the air in the port vibrates in phase with the front of the driver cone, adding constructive output that boosts bass response in a narrow band around that frequency.

The concept was first patented by Albert L. Thuras of Bell Laboratories in 1932 (U.S. Patent 1,869,178), though practical engineering guidelines did not mature until A.N. Thiele published his foundational paper in 1961 and Richard Small extended the work in the early 1970s. The Thiele-Small parameters — a set of electromechanical driver specifications — made it possible for the first time to predict bass reflex behavior mathematically before building the enclosure, transforming loudspeaker design from a craft into an engineering discipline.

Today, bass reflex is the most widely used loudspeaker enclosure type in consumer audio, professional sound reinforcement, studio monitors, and automotive audio. Its popularity stems from the favorable tradeoff it offers: compared to a sealed box of equal volume, a ported enclosure typically provides 3 dB greater output near the tuning frequency and can achieve lower usable bass extension, at the cost of a steeper rolloff slope (24 dB/octave versus 12 dB/octave for sealed) below tuning and more complex alignment requirements.

How Bass Reflex Enclosures Work

The operating principle of a bass reflex enclosure is rooted in Helmholtz resonance — the same physics that produces a tone when you blow across the top of a bottle. The air inside the cabinet acts as a spring (its compliance is determined by the enclosed volume), while the air in the port acts as a mass (determined by the port’s cross-sectional area and effective length). Together, they form a mass-spring system with a natural resonant frequency — the tuning frequency F_b.

At frequencies well above tuning, the port air mass is too heavy to follow the rapid pressure fluctuations inside the cabinet, so it effectively stays still and the system behaves like a sealed box. At frequencies well below tuning, the port provides a direct acoustic short between the front and rear of the driver, causing cancellation and a rapid loss of output. At the tuning frequency itself, the port air oscillates with maximum velocity, contributing its own sound radiation that adds constructively to the front output of the driver.

A critical and often misunderstood aspect of bass reflex operation is what happens to the driver cone at the tuning frequency. Because the port is handling most of the acoustic output at F_b, the driver cone excursion actually reaches a minimum — the enclosure pressure from the resonating port air effectively unloads the cone. This reduced excursion lowers distortion and thermal stress on the driver at and near tuning, but it also means the driver is acoustically unloaded below tuning. Below F_b, cone excursion increases rapidly with decreasing frequency, and without the restoring force of a sealed air volume behind it, the driver can easily over-excurse. This is why bass reflex systems require a high-pass filter or careful signal management for frequencies below the tuning point.

End Corrections and Effective Port Length

The effective port length (L_eff) used in the Helmholtz formula is not simply the physical length of the port tube. The air vibrating inside the port does not stop abruptly at the tube’s opening — a plug of air just outside each end of the tube oscillates along with the internal air column. This additional vibrating air mass increases the effective acoustic length of the port beyond its physical dimensions. The added length is called the end correction.

For a circular port of radius a, the standard end corrections depend on the mounting conditions. A flanged end (port opening flush-mounted in a large flat surface like the enclosure wall) adds approximately 0.85a to the effective length. An unflanged end (port opening that protrudes into free space or into the interior of the cabinet) adds approximately 0.6a. A typical port mounted flush on the outside of the enclosure and open at the inside face would have L_eff = L_physical + 0.85a (outer flanged end) + 0.6a (inner unflanged end) = L_physical + 1.45a. These values were first derived from Rayleigh’s theoretical analysis and later refined by Levine and Schwinger in 1948 for the unflanged case.

Neglecting end corrections is one of the most common sources of error when calculating bass reflex tuning. For a 75 mm diameter port (a = 37.5 mm), the total end correction adds roughly 54 mm to the effective length. If the physical port length is only 150 mm, ignoring the correction means the effective length is underestimated by 36%, which shifts the predicted tuning frequency upward by approximately 17%. For short ports in particular, end corrections represent a significant fraction of the total effective length and cannot be ignored.

Bass Reflex Alignment Types

Not all bass reflex enclosures are tuned the same way. The relationship between the driver’s Thiele-Small parameters and the enclosure/port dimensions determines the system’s alignment — essentially the shape of its frequency response curve near and below the tuning frequency. Several classical alignments are widely used in loudspeaker engineering, each offering a different tradeoff between bass extension, transient response, and low-frequency output level.

Butterworth B4 (Maximally Flat): This alignment produces the flattest possible amplitude response above the -3 dB point. It is the most commonly used alignment in consumer audio because it delivers extended, even bass without peaks or dips near the cutoff. The B4 alignment requires the enclosure volume and tuning frequency to match specific ratios derived from the driver’s Vas, Fs, and Qts parameters. When properly executed, the response rolls off at exactly 24 dB/octave below tuning with no overshoot in the time domain.

Quasi-Butterworth QB3: This alignment provides slightly less bass extension than B4 but offers superior transient response (tighter, more controlled bass). It is popular in studio monitor designs where time-domain accuracy matters more than absolute low-frequency reach. QB3 alignments typically use a smaller enclosure than B4 for the same driver.

Chebyshev C4: Chebyshev alignments allow a specified amount of ripple in the passband in exchange for a steeper transition band — meaning the bass extends lower before rolling off, but there may be a small peak (typically 0.5 to 1 dB) in the response just above the tuning frequency. C4 is used when maximum bass extension from a given enclosure size is the primary goal and a slight response peak is acceptable.

Extended Bass Shelf (EBS): The EBS alignment trades flat response for maximum low-frequency reach by accepting a gradual downward shelf in the bass response. The output drops gently below a certain frequency but extends much lower before the steep 24 dB/octave rolloff begins. EBS is common in home theater subwoofer designs where room gain (the natural bass boost from room boundaries) compensates for the shelf.

Port Design Considerations

The physical design of the port has a major impact on system performance beyond what the Helmholtz formula alone predicts. Two ports with identical cross-sectional area and effective length will tune the enclosure to the same frequency, but their behavior under high-excursion conditions can differ dramatically.

Port Velocity and Chuffing: As the air in the port oscillates at higher velocities, turbulence forms at the port openings. This turbulence produces audible noise called port chuffing or port noise — a characteristic “whooshing” sound on bass-heavy transients. The threshold for audible turbulence is generally around 15 to 20 m/s peak air velocity in the port. For a given SPL output, port velocity is inversely proportional to port area, so larger port cross-sections produce less chuffing. A minimum port area of about 16 to 20 cm² per liter of enclosure volume is a common rule of thumb for moderate listening levels.

Flared Ports: Flared port openings (trumpet or exponential flares) reduce turbulence at the port ends by gradually accelerating and decelerating the air, which raises the chuffing threshold by 20 to 40% compared to straight-cut ports. Many commercial subwoofers use flared ports for this reason. The downside is that flared ports are more complex to manufacture and the end corrections change compared to straight cylindrical ports.

Slot Ports vs. Round Ports: Slot ports (rectangular cross-section ports built into the enclosure walls) offer practical advantages in compact enclosures. Because a slot port can be folded inside the cabinet, the physical port length can be much longer than would fit with a round tube, enabling lower tuning frequencies. Slot ports also distribute air velocity over a wider area along the slot opening, which can reduce localized turbulence. The tradeoff is that slot ports have higher viscous losses due to their larger surface-area-to-volume ratio, which slightly reduces efficiency. For the Helmholtz calculation, slot ports use A = width × height for the cross-sectional area, and the effective length includes end corrections calculated using the hydraulic radius (2 × width × height / (width + height)) as the equivalent radius.

Bass Reflex vs. Sealed Enclosures

The choice between bass reflex and sealed (acoustic suspension) enclosures is one of the most fundamental decisions in loudspeaker design. Each topology has distinct strengths that make it better suited to certain applications.

Sealed enclosures are simpler to design and build, have a gentle 12 dB/octave rolloff below resonance (making them more tolerant of room placement), and offer better transient response due to the air spring behind the driver providing a controlled restoring force at all frequencies. They are favored in applications where time-domain accuracy is paramount, such as studio monitoring, and in small satellite speakers where a separate subwoofer handles the deep bass.

Bass reflex enclosures, by contrast, offer 3 dB more output near the tuning frequency for the same driver and amplifier power, and can achieve lower -3 dB points for a given enclosure volume. This makes them the preferred choice when maximum bass output or extension is needed without increasing box size or amplifier power. However, the 24 dB/octave rolloff below tuning means that bass reflex systems lose output very rapidly once they pass below the tuning frequency, and the driver becomes mechanically unprotected in that region.

In practice, the decision often comes down to room acoustics. In small rooms where boundary gain (the bass boost from walls, floor, and ceiling) adds 3 to 6 dB below 80 Hz, a sealed enclosure may produce enough perceived bass without a port. In larger rooms or open-plan spaces where boundary gain is minimal, bass reflex designs are usually necessary to achieve satisfying low-frequency performance.

Worked Example: Designing a Ported Bookshelf Speaker

A speaker designer wants to build a ported bookshelf enclosure tuned to 45 Hz using a round port. The internal volume of the cabinet (after accounting for the driver, bracing, and port tube displacement) is 15 liters (0.015 m³). A 50 mm diameter round port will be used (radius a = 0.025 m, area A = π × 0.025² = 0.001963 m²). The port is flush-mounted on the front baffle (flanged outer end, unflanged inner end).

First, rearrange the Helmholtz formula to solve for effective port length: L_eff = A / (V_b × (2πF_b/c)²). Substituting the values: L_eff = 0.001963 / (0.015 × (2π × 45 / 343)²). The term 2π × 45 / 343 = 0.8243 rad/m. Squaring gives 0.6795. Multiplying by 0.015 gives 0.01019. Dividing: L_eff = 0.001963 / 0.01019 = 0.1926 m, or about 19.3 cm.

Next, calculate the end corrections. The flanged (outer) correction is 0.85 × 0.025 = 0.02125 m. The unflanged (inner) correction is 0.6 × 0.025 = 0.015 m. Total end correction is 0.03625 m. The physical port tube length is therefore L_physical = L_eff – end corrections = 0.1926 – 0.03625 = 0.1564 m, or about 15.6 cm. This is a practical length that fits inside a typical bookshelf enclosure with depth of 20 to 25 cm.

To verify, check the port velocity at maximum expected output. If the port moves 0.5 liters of air per cycle at 45 Hz (a moderate level for a bookshelf speaker), the peak volume velocity is approximately 0.5 × 10⁻³ × 2π × 45 = 0.1414 m³/s. Peak velocity through the 0.001963 m² port is 0.1414 / 0.001963 = 72 m/s — well above the 15 to 20 m/s chuffing threshold. This tells the designer that the 50 mm port is too small for high output levels, and a larger port (perhaps 65 to 75 mm) or a flared port should be considered to reduce noise.

Common Mistakes in Bass Reflex Design

Several errors frequently appear in DIY and even professional bass reflex designs, leading to enclosures that underperform or behave unpredictably.

The most common mistake is ignoring end corrections when calculating port length. As discussed above, this leads to a port that is physically too long, which tunes the enclosure lower than intended. For short ports (under 15 cm physical length), the end correction can represent 25 to 40% of the total effective length, making this error significant.

Using net enclosure volume instead of accounting for the space displaced by the driver motor structure, bracing, port tube, and damping material is another frequent error. A 20-liter gross internal volume might have only 14 to 16 liters of actual air space after accounting for these components. Using the gross volume in the Helmholtz formula will overestimate the tuning frequency.

Undersizing the port area is extremely common in compact designs where space is limited. A port that is too narrow produces chuffing noise at moderate listening levels, adds compression to the bass output, and can even create audible whistling tones if the air velocity excites resonant modes in the port tube. The minimum practical port diameter for most applications is 50 mm, and 75 mm or larger is preferred for subwoofers.

Placing the port on the rear of the enclosure without considering wall proximity effects is another pitfall. When a rear-firing port is positioned close to a wall (within one port diameter), the boundary acts as an additional flange that alters the end correction and can shift the tuning frequency. It also creates a pressure buildup that increases port noise. A minimum clearance of one port diameter between the port opening and any boundary surface is a standard recommendation.

Finally, many designers fail to verify that the chosen alignment (B4, QB3, etc.) is achievable with their specific driver. Each alignment requires the driver’s Qts to fall within a specific range. Attempting a B4 alignment with a driver whose Qts is outside the 0.3 to 0.5 range that B4 requires will result in a response with excessive peaking or premature rolloff, regardless of how accurately the enclosure and port are built.
