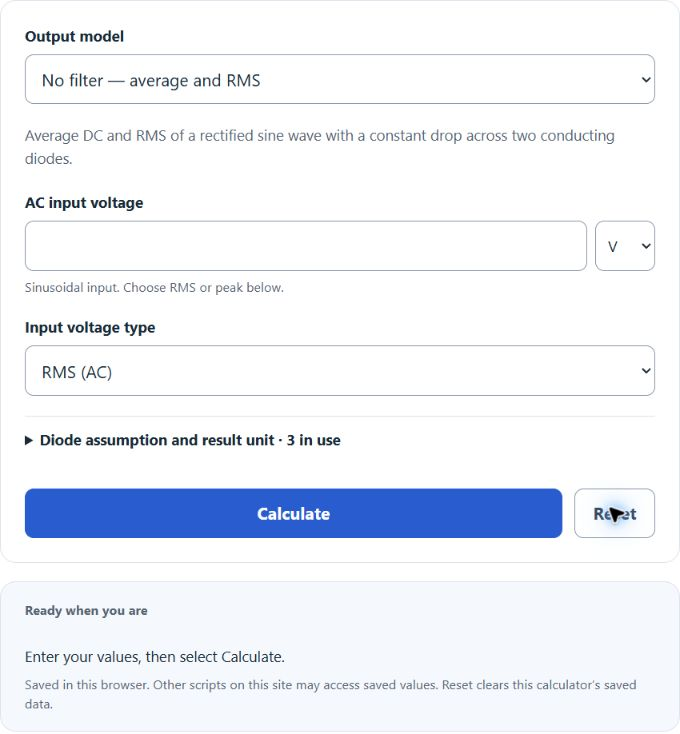

Estimate a bridge rectifier’s average DC, RMS output or capacitor-filtered DC from sinusoidal RMS or peak AC input. Choose no-load, current-load or resistance-load filtering and enter your diode drop assumption.
Related Calculators
- Step Down Voltage Calculator
- Current Limiter Resistor Calculator
- Fusing Transformer Calculator
- True Power Calculator
- All Physics Calculators
Bridge Rectifier Output Voltage Formula
The peak rectified voltage for a sinusoidal input is estimated by subtracting the forward drops of the two conducting diodes. Peak voltage differs from average DC and RMS output:
Vpk is the peak rectified voltage; Vrms is the sinusoidal RMS input; Vd is the assumed drop per diode. No-load capacitor voltage approaches Vpk. Without filtering, the calculator integrates max(0, input peak × sin(angle) − 2Vd) to obtain average and RMS output. The familiar average = 2 × input peak / π and RMS = input peak / √2 apply to ideal diodes. Multiplying the reduced peak by 0.637 is only a rough approximation when diode drops are present.
Diode Forward Voltage Drop by Type
The forward voltage drop (Vd) used in the formula depends on the diode technology selected for the rectifier. This directly impacts the output voltage, and the difference becomes significant at lower input voltages.
| Diode Type | Vd per Diode | Total Bridge Drop (2 x Vd) | Typical Use Case |
|---|---|---|---|
| Standard Silicon (e.g. 1N4007) | 0.7 V | 1.4 V | General-purpose AC/DC supplies, wall adapters |
| Schottky (e.g. 1N5822) | 0.2 – 0.45 V | 0.4 – 0.9 V | Low-voltage, high-efficiency supplies, solar charge controllers |
| Germanium | 0.25 – 0.3 V | 0.5 – 0.6 V | Legacy circuits, low-loss signal rectification |
| Fast Recovery (e.g. UF4007) | 0.8 – 1.0 V | 1.6 – 2.0 V | Switching power supplies, high-frequency rectification |
At 5V AC input, a silicon bridge produces roughly 5.67V peak output, while a Schottky bridge yields about 6.47V. That is about 14% more estimated peak voltage; it is not a 14% efficiency improvement. Efficiency also depends on the load, waveform and losses.
What is a Bridge Rectifier?
A bridge rectifier is a four-diode circuit arranged so that two diodes conduct during each half-cycle of the AC input, steering current through the load in the same direction regardless of polarity. During the positive half-cycle, current flows through diode D1 to the load and returns through D2. During the negative half-cycle, D3 and D4 carry the current along the same path through the load. The result is full-wave rectification: every half-cycle of the input contributes energy to the output, producing a pulsating DC waveform at twice the input frequency.
Compared to a center-tapped full-wave rectifier, the bridge configuration does not require a center-tapped transformer. This reduces transformer size and cost. It also delivers roughly twice the peak output voltage from the same secondary winding, since the full winding voltage is used in each half-cycle rather than half. The trade-off is a higher total diode drop (two diodes in the conduction path instead of one), but for most line-voltage applications this loss is negligible.
Ripple Voltage and Capacitor Sizing
Without a smoothing capacitor, the output of a bridge rectifier is a pulsating DC waveform that drops to zero between peaks. Adding a capacitor in parallel with the load allows the capacitor to charge to the peak voltage and then slowly discharge into the load between peaks, filling in the gaps and producing a much smoother output. The residual oscillation on top of the DC level is called ripple voltage.
For a small-ripple approximation, the filter capacitance associated with a target peak-to-peak ripple is:
C is capacitance in farads, I_load is average DC load current in amps, f is AC frequency in Hz and V_ripple is peak-to-peak ripple. Average DC is approximated by Vpk − ripple/2. For resistance R, the calculator solves DC = Vpk / (1 + 1/(4fCR)) and current = DC/R together. Large ripple reduces this model’s reliability; ripple above the available peak is rejected. Choose a target suited to the circuit.
| Load Current | Mains Freq | Target Ripple | Required Capacitance |
|---|---|---|---|
| 0.5 A | 60 Hz | 1 V | 4,167 uF |
| 0.5 A | 60 Hz | 100 mV | 41,667 uF |
| 1 A | 50 Hz | 1 V | 10,000 uF |
| 0.1 A | 60 Hz | 500 mV | 1,667 uF |
Use capacitor tolerance, aging, ESR, ripple-current rating and worst-case voltage when selecting a real component. ESR adds loss and ripple; it is not simply a reduction in capacitance. Nominal voltage examples do not establish a sufficient component rating. Check source regulation, transients and the manufacturer’s limits.
Common Rectifier Diode Specifications
The 1N400x series is the most widely used family of rectifier diodes in bridge circuits. All members share identical current ratings but differ in their peak inverse voltage (PIV) rating:
| Part Number | PIV (V) | Avg Forward Current | Surge Current (peak) | Illustrative Vd assumption |
|---|---|---|---|---|
| 1N4001 | 50 | 1 A | 30 A | 0.7 V |
| 1N4004 | 400 | 1 A | 30 A | 0.7 V |
| 1N4007 | 1000 | 1 A | 30 A | 0.7 V |
| 1N5822 (Schottky) | 40 | 3 A | 80 A | 0.35 V |
| GBU806 (Bridge Module) | 600 | 8 A | 200 A | 1.0 V |
Bridge modules can simplify assembly, but current and thermal ratings depend on mounting and operating conditions. Select reverse-voltage, average-current and surge ratings from the actual part’s datasheet. The table’s forward drops are illustrative assumptions; actual drop varies with current and temperature. A 1000 V reverse rating does not guarantee suitability for every single-phase application.
Bridge Rectifier Efficiency
Rectifier efficiency is the ratio of DC output power to AC input power. For an ideal unfiltered full-wave sine feeding a resistive load, the ratio of DC-component power to total load power is about 81% (8/π²). This waveform ratio is not an 81% limit on AC-to-DC power-supply efficiency. Real supply efficiency depends on diode, transformer, capacitor and other losses.
With a constant-drop assumption, average bridge conduction loss is approximately P_diode = 2 × Vd × average DC load current. In a capacitor-input supply, diode current flows in charging pulses; individual diode current is not the load current at all times. At 1A with silicon diodes, this amounts to 1.4W of heat dissipated across the bridge. Switching to Schottky diodes at 0.35V each cuts this to 0.7W, a 50% reduction in rectifier loss. In a 12V/1A supply delivering 12W, that 0.7W difference represents roughly a 6% improvement in overall efficiency.
Practical Design Considerations
When selecting components for a bridge rectifier circuit, the diode PIV rating must exceed the peak inverse voltage seen during operation. For a single-phase bridge off a transformer secondary, the peak inverse voltage equals the peak secondary voltage (Vrms x 1.414). Engineers typically select diodes with a PIV rating at least 2x this value for safety margin.
Thermal management is another key factor. Each diode dissipates Vd x I_avg in heat. At higher currents (above 2-3A), heatsinking or forced airflow becomes necessary to keep junction temperatures within safe limits. Pre-packaged bridge modules with metal tabs or bolt-mount packages (KBPC series) are designed for direct heatsink attachment.
For applications requiring tighter voltage regulation than a capacitor filter alone can provide, a linear voltage regulator (such as the LM78xx series) or a switching regulator can be placed after the rectifier and filter stage. A 7812 regulator, for example, requires at least 14.5V at its input to deliver a stable 12V output, which sets the minimum transformer secondary voltage needed for the design. Switching regulators offer higher efficiency (85-95%) but add complexity and potential EMI concerns.
