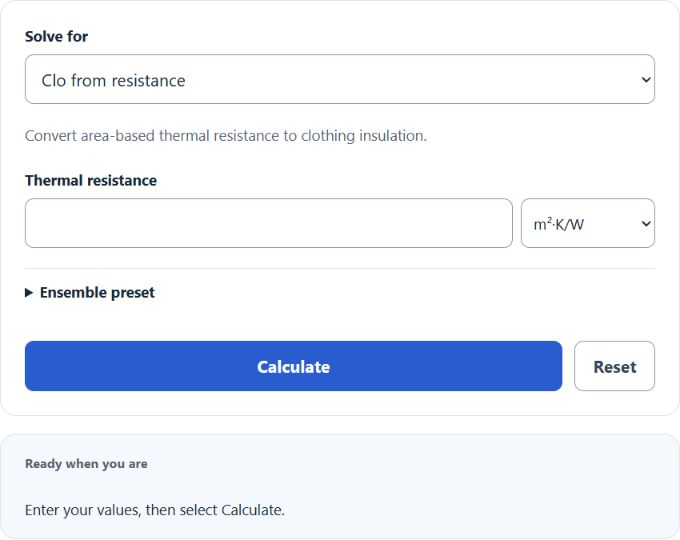

Convert a clo value to thermal resistance in m²·K/W or ft²·h·°F/Btu and back, or estimate an outfit’s clo value by adding typical garment values.
Related Calculators
- Calculator Academy
- Thermal Resistance Calculator
- Rockwool R-Value Calculator
- Heat Loss R-Value Calculator
- Insulation K-Value Calculator
- Body Heat Loss Calculator
- All Business Calculators
Clo Value Formula
The following formula is used to calculate the Clo value. NIST SP 811 conversion factors support the resistance conversion. Indoor presets and specific garment estimates use ASHRAE Fundamentals, Chapter 9, Tables 7 and 9. The simple garment-sum method follows ASHRAE 55-2010 Addendum h (2013). That historical indoor method excludes clothing above 1.5 clo, highly impermeable clothing and sleeping conditions; no Standard 55 compliance assessment is performed.
Variables:
- Clo is the Clo value, which represents the thermal insulation provided by clothing.
- R is the thermal resistance of the material (m²·K/W).
To calculate the Clo value, divide the thermal resistance of the material by 0.155.
What is a Clo Value?
Clo measures clothing insulation: 1 clo equals 0.155 m²·K/W. It does not guarantee comfort at a particular temperature. Fit, air movement, activity and moisture affect effective insulation. The calculator uses 0.1761102 m²·K/W per ft²·h·°F/Btu (international-table Btu); no inch factor belongs in this area-based resistance unit.
How to Calculate Clo Value?
The following steps outline how to calculate the Clo Value.
- First, determine the thermal resistance of the material (R) in m²·K/W.
- Next, gather the formula from above: Clo = R / 0.155.
- Finally, calculate the Clo Value.
- After inserting the variable and calculating the result, check your answer with the calculator above.
Example Problem :
Use the following variable as an example problem to test your knowledge.
Thermal resistance of the material (R) = 0.310 m²·K/W, so clo = 0.310 / 0.155 = 2. This is a unit conversion, not a safe-exposure or comfort rating.
