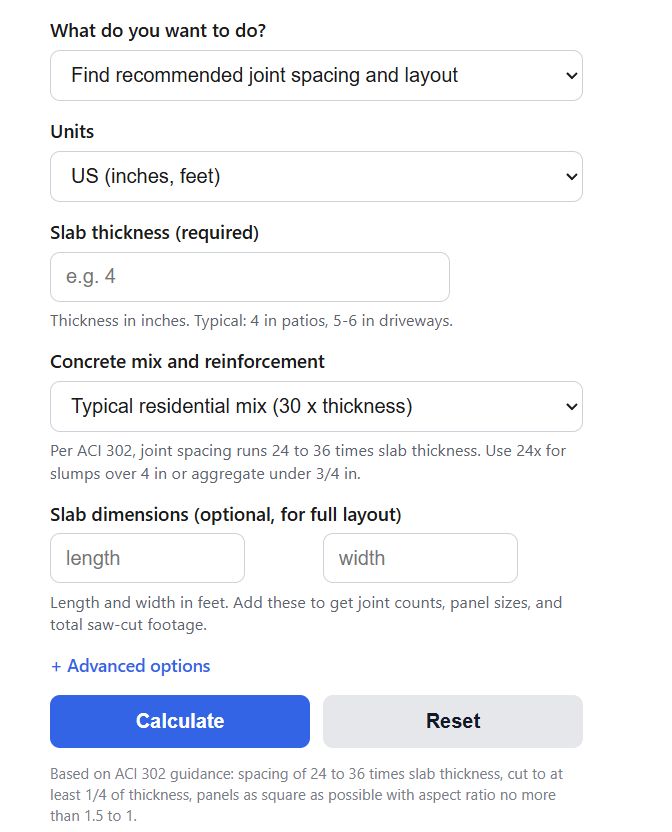

Compare general joint-spacing rules for rectangular slabs on grade, plus conventional groove depth, equal panel counts and interior saw-cut length. This is a planning tool; project design and construction conditions govern.
Concrete Control Joint Spacing Formula
S = (M * T) / 12
D = max(T / 4, 1 inch)
N = ceil(L / S) - 1
- S is the maximum control joint spacing (feet)
- M is the selected planning multiplier, 24 to 36; its suitability must be established for the project
- T is the slab thickness (inches)
- D is the minimum saw cut depth (inches), never less than 1 inch
- N is the number of joints needed across a slab dimension
- L is the slab length or width (feet)
Spacing mode applies the selected multiplier and cap; optional slab dimensions produce the minimum equal subdivisions for that spacing. Elongated panels are flagged rather than automatically approved. Check mode compares both planned dimensions and the unrounded aspect ratio with the selected limits. The default cap is 15 ft; 18 ft and no-cap options are comparisons, not engineering authorization. Conventional groove depth is at least one quarter of thickness and one inch; the one-third option is also available. Early-entry saw systems require their own details.
Joint Spacing and Saw Cut Timing Reference
The first table illustrates the general relationship discussed in NRMCA CIP 6, with the separate 15 ft cap applied. Selecting a multiplier does not establish a mix, reinforcement or structural design. Thickness examples are not design recommendations.
| Slab Thickness | Spacing Range (24x to 36x) | Min Cut Depth | Illustrative use, subject to design |
|---|---|---|---|
| 3.5 in | 7 to 10.5 ft | 1 in | Sidewalks, paths |
| 4 in | 8 to 12 ft | 1 in | Patios, shed slabs |
| 5 in | 10 to 15 ft | 1.25 in | Heavy patios, garage floors |
| 6 in | 12 to 15 ft (capped) | 1.5 in | Driveways, shop floors |
| 8 in | 15 ft cap (uncapped arithmetic: 16–24 ft) | 2 in | Commercial slabs |
Spacing alone does not control cracking if the cut happens too late. Concrete begins shrinking as soon as it sets, and the window for cutting depends heavily on weather. NRMCA describes broad windows of 1–4 hours for early-entry dry cutting and 4–12 hours for conventional saw cutting. These are not guaranteed schedules; setting, raveling and the saw system determine the actual window.
| Method | Broad window after finishing | Application |
|---|---|---|
| Early-entry dry cut | Generally 1–4 hours | Follow the specified saw system and depth |
| Conventional saw | Generally 4–12 hours | Cut when concrete supports sawing without unacceptable raveling, before random cracks |
If the blade tears aggregate out of the cut (raveling), the concrete is still too soft; reassess the setting and sawing conditions without relying on a fixed delay. If random cracks have already appeared, the window has closed.
Example Problems
Example 1: A 4-inch thick patio measures 16 feet by 12 feet using an illustrative 30× multiplier. Spacing is S = (30 * 4) / 12 = 10 feet. The 16-foot length needs ceil(16/10) - 1 = 1 joint, and the 12-foot width needs 1 joint, creating four panels of 8 feet by 6 feet. The aspect ratio is 8/6 = 1.33, which passes the 1.5 limit. The cut depth is 4/4 = 1 inch, and the total saw-cut length is (1 x 12) + (1 x 16) = 28 feet.
Example 2: A 6-inch slab with 16 ft square panels has an uncapped 36× arithmetic limit of 18 ft. With the default 15 ft cap, the proposed spacing exceeds the selected limit. The aspect ratio is 1:1. Conventional quarter-depth arithmetic gives 1.5 inches. These comparisons do not approve a joint plan.
Frequently Asked Questions
What is the difference between a control joint and an expansion joint? A control joint is a shallow groove cut partway through the slab to create a weakened line where shrinkage cracking concentrates as the concrete cures. An expansion joint is a full-depth separation filled with compressible material that lets the slab move against adjacent structures like foundations, curbs, or existing slabs. Control joints manage cracking within a slab; expansion joints manage movement between structures. Most residential slabs need both: control joints across the field and expansion joints wherever the pour meets something fixed.
Does wire mesh or rebar let me skip control joints? No. Reinforcement does not stop concrete from shrinking or cracking; it only holds cracks tightly closed once they form. Reinforcement alone does not authorize a wider spacing multiplier; jointing and reinforcement details must be coordinated in the project design. Even heavily reinforced slabs get control joints unless an engineer has specifically designed a jointless floor with continuous reinforcement.
What happens if control joints are cut too late? Concrete shrinks on its own schedule, and once internal tensile stress exceeds the young concrete's strength, it cracks wherever the slab is weakest, not where you planned to cut. Joints cut after random cracking has started do nothing for the cracks that already exist. In hot or windy weather the window can close within hours of finishing, which is why the timing table above matters as much as the spacing math.
