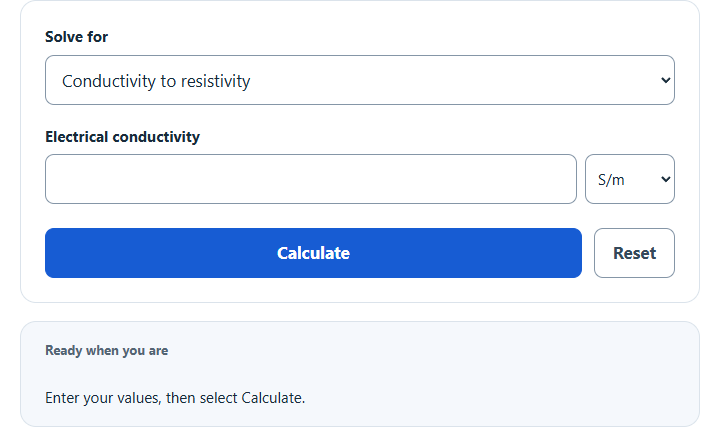

Calculate conductivity or resistivity, find sample resistance and conductance from its dimensions, and estimate water TDS from EC.

Optional settings


Related Calculators

Conductivity Formula

The following formula is used to calculate the electrical conductivity:

ฯƒ = L / (R A)

Variables:

  • ฯƒ (sigma) is the electrical conductivity (siemens per meter)
  • R is the electrical resistance (ohms)
  • A is the cross-sectional area of the material (square meters)
  • L is the length of the material (meters)

To calculate electrical conductivity, divide one by the resistance, and then multiply the result by the length divided by the cross-sectional area of the material.

Resistance and conductance from a material property

Select Sample resistance and conductance, choose whether conductivity ฯƒ or resistivity ฯ is known, and enter the sample length L and cross-sectional area A. For a uniform ohmic conductor, R = L / (ฯƒA) = ฯL / A in ohms and G = 1 / R = ฯƒA / L in siemens. Use material values at the same temperature; contact resistance and nonuniform current flow are not included.

For example, ฯƒ = 1,500 S/m, L = 3 m and A = 0.001 mยฒ give R = 2 ฮฉ and G = 0.5 S. Conductivity describes the material in S/m; conductance describes this particular sample in S. The calculator converts the selected length, area and material units before calculating both outputs.

What is Electrical Conductivity?

Electrical conductivity is a measure of a material’s ability to conduct an electric current. It is the reciprocal of electrical resistivity and is used to characterize materials in terms of their conductive properties. High conductivity indicates that a material allows electric current to flow easily, while low conductivity means the material is more resistant to electric current.

How to Calculate Electrical Conductivity?

The following steps outline how to calculate the electrical conductivity:


  1. First, determine the electrical resistance (R) in ohms.
  2. Next, determine the cross-sectional area of the material (A) in square meters.
  3. Next, determine the length of the material (L) in meters.
  4. Use the formula ฯƒ = L / (R A) to calculate the electrical conductivity (ฯƒ).
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem:

Use the following variables as an example problem to test your knowledge.

Resistance (R) = 2 ohms

Cross-sectional Area (A) = 0.001 square meters

Length (L) = 3 meters. For a uniform conductor, ฯƒ = 3 / (2 ร— 0.001) = 1,500 S/m.
