Calculate how much crawl space vent area and how many foundation vents you need using the 1:150 or 1:1500 code ratio, and check if your existing vents pass.
Crawl Space Vent Formula

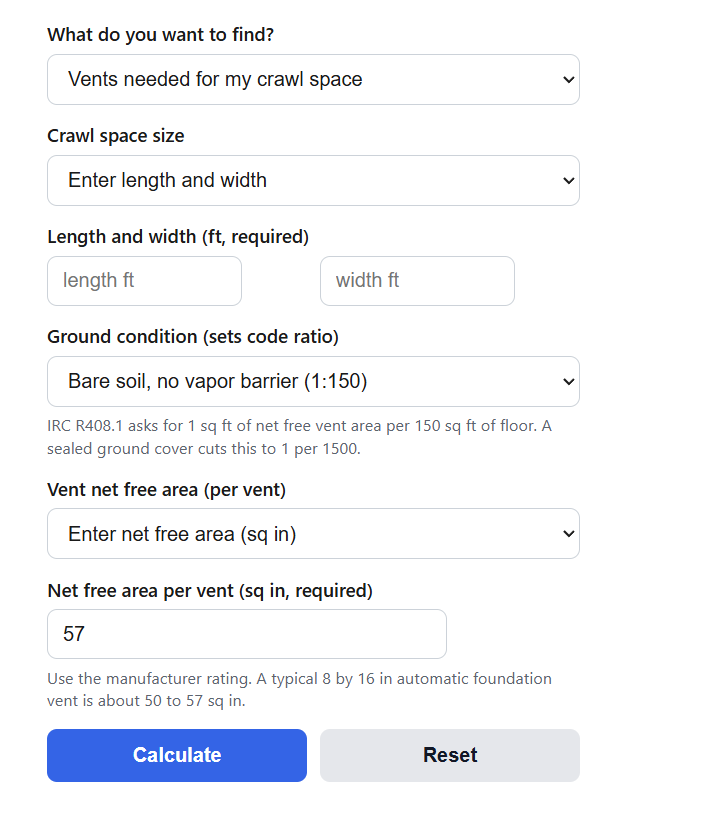

The calculator sizes passive foundation vents from your crawl space floor area and the building code ratio. The required net free vent area is:
Av = Af / R
It then converts that area to square inches and divides by the net free area of one vent to get the number of vents:
N = ceil( Av * 144 / NFA )
Variables:
- Av is the required net free vent area, in square feet
- Af is the crawl space floor area (length times width), in square feet
- R is the code ratio: 150 for bare soil, or 1500 when the ground has an approved vapor retarder and the vents provide cross-ventilation
- NFA is the net free area of one vent, in square inches
- N is the number of vents, rounded up to the next whole vent
Floor area drives the whole result: a bigger footprint needs proportionally more open vent area. The ratio R comes straight from IRC R408.1, which sets 1 square foot of net free area for every 150 square feet of floor, or 1 per 1,500 when a ground cover cuts the moisture load. Dividing by the net free area of a single vent, not its stamped size, is what turns the required area into a real vent count.
When you enter a gross vent size instead of a published rating, the calculator finds the net free area of one vent from its opening and the open percentage of its louvers and screen:
NFA = W * H * (P / 100)
W and H are the gross vent width and height in inches, and P is the percent of that opening left clear by the louvers and insect screen. If you switch the top selector to fan mode, the tool sizes a powered vent from the crawl space volume and a target air change rate instead:
CFM = Af * h * ACH / 60
Af is the floor area, h is the average crawl space height in feet, and ACH is the target air changes per hour. The check mode reuses the required area but compares it against the net free area you already have, which is your vent count times the net free area per vent, and then reports whether you pass or how many vents to add.
Required Vent Area by Crawl Space Size
This table shows the net free vent area required at each code ratio, plus how many small automatic vents (about 50 square inches of net free area each) it takes to meet the 1:150 rule. Use it as a quick check before you size a specific vent.
| Floor area | 1:150 area (no barrier) | 1:1500 area (with barrier) | Vents at 50 sq in (1:150) |
|---|---|---|---|
| 800 sq ft | 5.3 sq ft (768 sq in) | 0.53 sq ft (77 sq in) | 16 |
| 1,000 sq ft | 6.7 sq ft (960 sq in) | 0.67 sq ft (96 sq in) | 20 |
| 1,200 sq ft | 8.0 sq ft (1,152 sq in) | 0.80 sq ft (115 sq in) | 24 |
| 1,500 sq ft | 10.0 sq ft (1,440 sq in) | 1.0 sq ft (144 sq in) | 29 |
| 2,000 sq ft | 13.3 sq ft (1,920 sq in) | 1.33 sq ft (192 sq in) | 39 |
| 2,500 sq ft | 16.7 sq ft (2,400 sq in) | 1.67 sq ft (240 sq in) | 48 |
The next table lists the net free area of common foundation vents. Vent packaging usually shows the gross size, but louvers and insect screen block part of the opening, so the airflow area is smaller. Enter the rated net free area when you have it, or use these typical ranges as a starting point.
| Vent type | Nominal size | Gross opening | Typical net free area |
|---|---|---|---|
| Automatic (bimetal) foundation vent | 8 x 16 in | 128 sq in | 50 to 57 sq in |
| Manual louvered vent, screened | 8 x 16 in | 128 sq in | 60 to 70 sq in |
| Screen only, 1/4 in mesh, no louvers | 8 x 16 in | 128 sq in | 85 to 100 sq in |
| Cast masonry or brick vent | 8 x 16 in | about 110 sq in | 30 to 50 sq in |
Example Problems
Example 1: Estimate how many vents a crawl space needs.
A crawl space is 40 ft by 30 ft, so the floor area is 1,200 sq ft. The soil is bare, so you use the 1:150 ratio. Av = 1,200 / 150 = 8 sq ft, which is 8 times 144 = 1,152 sq in. Using automatic vents rated at 57 sq in each, N = 1,152 / 57 = 20.2, rounded up to 21 vents. Split them across opposite walls and keep one within 3 ft of each corner.
Example 2: See how a ground cover changes the count.
Take the same 1,200 sq ft space, add an approved vapor retarder over the soil, and place the vents for cross-ventilation. The ratio drops to 1:1500, so Av = 1,200 / 1,500 = 0.8 sq ft, or about 115 sq in. By area that is only 3 vents of 57 sq in, but the corner rule still wants a vent near each corner, so you would install at least 4.
Frequently Asked Questions
How many vents does a crawl space need?
Divide the floor area by 150 to get the required net free vent area in square feet, then divide by the net free area of one vent to get the count. A 1,200 square foot crawl space needs 8 square feet, or 1,152 square inches, of net free area, which is about 21 vents rated at 57 square inches each. An approved ground cover lets you use the 1:1500 ratio and far fewer vents, but you still keep one within 3 feet of every corner.
Do I still need vents if the crawl space has a vapor barrier?
A vented crawl space with an approved ground cover can use the reduced 1:1500 ratio instead of 1:150, so it needs much less vent area. You can also seal the crawl space and skip wall vents under the unvented option in IRC R408.3, which instead calls for a continuous vapor retarder plus either conditioned supply air or a dehumidifier. Pick one path and do not leave bare soil with too few vents.
Why does the calculator use net free area instead of the vent size?
Net free area is the part of the opening that actually passes air after the louvers and insect screen. A vent stamped 8 by 16 inches has a gross opening of 128 square inches, but its rated net free area is often only 50 to 70 square inches. Sizing on the gross number would leave the crawl space under-vented, so the calculator works in net free area and lets you enter either the published rating or a gross size with an open percentage.
