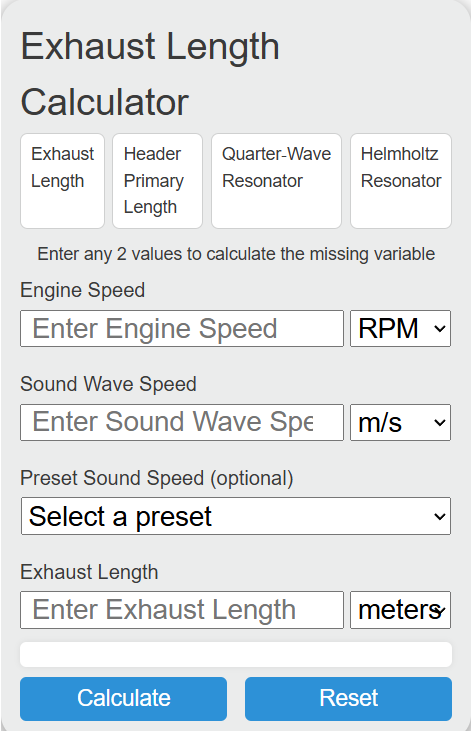

Calculate exhaust length from engine speed and sound wave speed, plus header primary length and resonator sizing for target RPM or frequency.

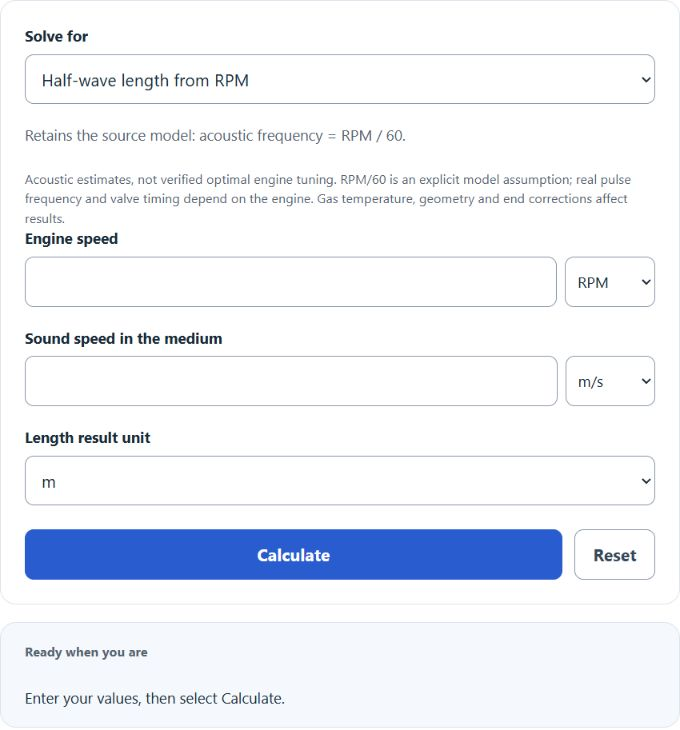

Retains the source model: acoustic frequency = RPM / 60.

Acoustic estimates, not verified optimal engine tuning. RPM/60 is an explicit model assumption; real pulse frequency and valve timing depend on the engine. Gas temperature, geometry and end corrections affect results.

Related Calculators

Exhaust Length Formula

The following formula is used to calculate the half-wave reference length:

L = (c / (2 ร— N)) ร— 60

Variables:

  • L is the half-wave reference length (meters)
  • c is the speed of sound in the exhaust medium (meters per second)
  • N is the engine speed (revolutions per minute)

To calculate the half-wave reference length, divide the speed of sound in the exhaust medium by twice the engine speed, using N/60 to express the assumed frequency in cycles per second.

What is Exhaust Length?

Exhaust length describes an exhaust flow path. This calculator retains a simplified half-wave reference model with acoustic frequency assumed to equal engine RPM divided by 60. It does not determine an optimal engine exhaust or header length: firing frequency, valve timing, gas conditions, collector geometry and reflections require a design-specific model. The quarter-wave and Helmholtz modes provide ideal acoustic estimates with their stated assumptions.

How to Calculate Exhaust Length?

The following steps outline how to calculate the reference Exhaust Length.

  1. First, determine the engine speed (N) in revolutions per minute (RPM).
  2. Next, determine the speed of sound in the exhaust medium (c) in meters per second.
  3. Use the formula L = (c / (2 * N)) * 60 to calculate the half-wave reference length (L).
  4. Finally, calculate the reference Exhaust Length (L) in meters.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem:

Use the following variables as an example problem to test your knowledge.

Engine Speed (N) = 3000 RPM

Sound Wave Speed (c) = 343 m/s (speed of sound in air at 20ยฐC)
