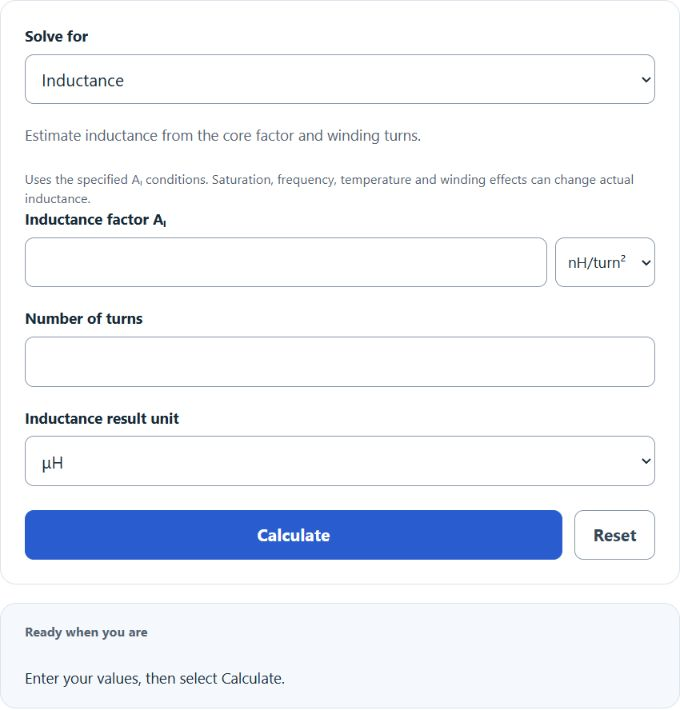

Choose inductance, turns, or A_L value, then enter the two required quantities. Results include unit conversions and calculation details.

Related Calculators

Ferrite Inductor Formula

The following equation is used to calculate the ferrite inductor inductance from the core’s inductance factor (A_L) and the number of turns.

L = A L \times N²

Where L is the inductance (H)
A_L is the inductance factor of the ferrite core (H/turn², often specified as nH/turn² by manufacturers)
N is the number of turns on the ferrite core

To calculate the inductance of a ferrite inductor, multiply A_L by the square of the number of turns. Use the manufacturer’s A_L value under the intended measurement conditions; saturation, frequency, temperature, tolerance and winding effects can change actual inductance.

What is a Ferrite Inductor?

Definition:

Ferrite inductors are a type of inductor known for strong electromagnetic properties. These inductors have a ferrite core that provides them with low electrical conductivity (high resistivity) compared to metallic cores, which helps reduce eddy-current losses.

How to Calculate Inductance of Ferrite Inductor?

Example Problem:

The following example outlines the steps and information needed to calculate the inductance of a ferrite inductor.

First, determine the A_L value (inductance factor). This value is typically provided by the core manufacturer (often in nH/turn²). For this problem, assume A_L = 50 nH/turn².

Next, determine the number of turns of the inductor. In this example, the number of turns is 30.

Finally, calculate the ferrite inductor inductance using the formula above:

L = A_L × N²

L = 50 nH/turn² × (30)²

L = 50 × 900 nH = 45,000 nH = 45 μH
