Calculate gable roof surface area from building length, width, pitch or rafter length, and estimate roofing material with waste factor.
Gable Roof Area Formula

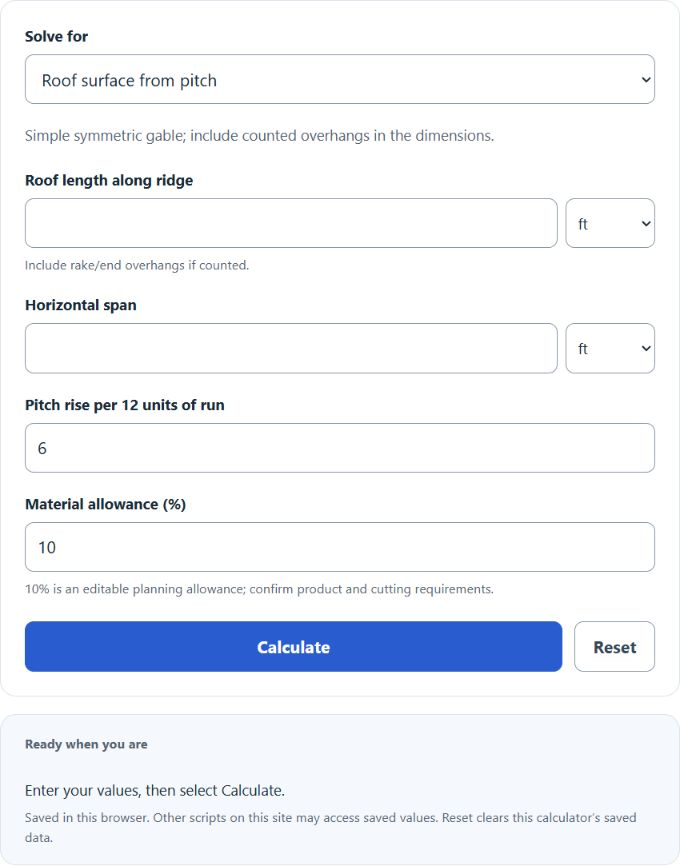

The calculator uses one of three formulas depending on which inputs you have.
Pitch mode (length, width, and rise per 12):
Rafter mode (length and sloped rafter):
Gable end mode (triangular wall area):
- A = total sloped roof area (both planes)
- L = roof length along the ridge, including counted rake/end overhangs
- W = horizontal roof span, including counted eave overhangs
- P = pitch rise per 12 units of run
- R = full sloped length from eave edge to ridge
- H = vertical height of the gable end
- N = positive whole number of matching gable ends, usually 1 or 2
Results assume a simple symmetrical gable. Include counted eave overhangs in the horizontal span or sloped length and rake/end overhangs in the roof length. Other roof planes, dormers, hips and valleys require separate measurements. Ordering area = roof area × (1 + allowance/100). Product coverage and cutting layout determine material quantities.
Reference Tables
Slope factors for common pitches. Multiply your building footprint (length × width) by the factor to get sloped roof area.
| Pitch | Angle | Slope factor |
|---|---|---|
| 3/12 | 14.0° | 1.031 |
| 4/12 | 18.4° | 1.054 |
| 6/12 | 26.6° | 1.118 |
| 8/12 | 33.7° | 1.202 |
| 10/12 | 39.8° | 1.302 |
| 12/12 | 45.0° | 1.414 |
Material allowance depends on the product, cutting layout and roof geometry. The calculator’s editable 10% default is a planning assumption, not a universal waste rate. Confirm the allowance with the manufacturer or installer:
| Roof condition | Allowance guidance |
|---|---|
| Plain gable, 3-tab shingles | Confirm shingle coverage and cutting layout |
| Plain gable, architectural shingles | Confirm shingle coverage and installer allowance |
| Cut-up roof with dormers/valleys | Measure extra roof planes and cutting requirements |
| Metal panels, simple gable | Confirm panel coverage, lengths and offcuts |
Example
A 40 ft long building, 24 ft wide, with a 6/12 pitch:
- Slope factor = √(1 + (6/12)²) = 1.118
- Roof area = 40 × 24 × 1.118 = 1,073 ft²
- With 10% allowance ≈ 1,181 ft², or about 12 roofing squares (using the unrounded slope factor)
- Rafter length per side = 12 × 1.118 = 13.42 ft
Does this include the gable end walls? No. The pitch and rafter modes give roofing surface only. Use the gable end mode for the triangular wall area below the roof.
Should I use the building footprint or add overhang? For counted eave overhangs, use the full sloped eave-edge-to-ridge length in rafter mode or the full horizontal roof span in pitch mode. Include rake/end overhangs in the roof length in either mode. Add both sides where applicable and avoid counting an overhang twice.
