Enter the flow rate, Hazen-Williams coefficient, pipe diameter, and pipe length into the calculator to determine the head loss due to friction in the pipe.

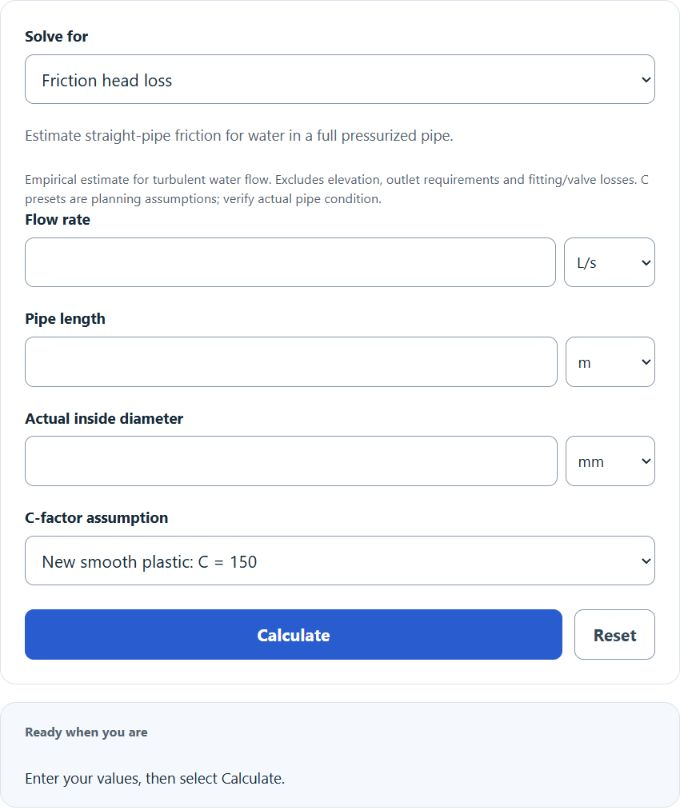

Hazen Williams Equation Calculator

Enter values and leave exactly 1 field empty to calculate it.

Hazen-Williams Equation

The Hazen-Williams equation is used to estimate friction head loss in a full, pressurized pipe carrying water. It is widely used for pipe sizing, pump checks, fire protection hydraulics, irrigation lines, and water distribution systems because it connects flow rate, pipe diameter, pipe length, and pipe roughness in a simple design equation.

h_f = K \frac{L Q^{1.852}}{C^{1.852} D^{4.8704}}

In this relationship, hf is head loss, Q is flow rate, C is the Hazen-Williams roughness coefficient, D is inside pipe diameter, L is pipe length, and K depends on the unit system being used.

Common Forms of the Equation

A common SI form is:

h_f = 10.67 \frac{L Q^{1.852}}{C^{1.852} D^{4.8704}}

Use this form when head loss is in meters, pipe length is in meters, flow rate is in m3/s, and diameter is in meters.

A common U.S. customary form is:

h_f = 4.52 \frac{L Q^{1.85}}{C^{1.85} D^{4.87}}

Use this form when head loss is in feet, pipe length is in feet, flow rate is in gpm, and diameter is in inches.

Small differences in constants and exponents are usually just unit-system and rounding conventions. If you are using a multi-unit calculator, the important part is entering the values in the units you selected and leaving one field blank for the unknown.

Variable Meanings

Variable Description Why It Matters
hf Head loss due to pipe friction Represents the energy lost as water moves through the pipe
Q Flow rate Higher flow increases friction loss rapidly
C Hazen-Williams roughness coefficient Higher C means a smoother pipe and lower loss
D Inside pipe diameter Diameter has the strongest effect on head loss
L Pipe length Longer pipe creates proportionally more loss

How the Inputs Affect Head Loss

h_f \propto \frac{Q^{1.852} L}{C^{1.852} D^{4.8704}}
  • Flow rate: increasing flow raises head loss sharply.
  • Length: doubling pipe length doubles head loss.
  • Diameter: even a modest increase in diameter can reduce loss dramatically.
  • Coefficient C: smoother, newer, or lined pipe generally has a higher C value and less friction.

In practice, diameter usually has the biggest design impact. That is why upsizing a pipe can reduce friction loss far more effectively than small adjustments to other variables.

Rearranged Forms for Solving Any One Unknown

If the calculator lets you leave one field blank, these rearranged forms show what it is solving behind the scenes:

Q = \left(\frac{h_f C^n D^m}{K L}\right)^{1/n}
C = \left(\frac{K L Q^n}{h_f D^m}\right)^{1/n}
D = \left(\frac{K L Q^n}{h_f C^n}\right)^{1/m}
L = \frac{h_f C^n D^m}{K Q^n}

For Hazen-Williams calculations, n is approximately 1.85 and m is approximately 4.87.

Typical Hazen-Williams C Values

The coefficient C depends on pipe material, lining, age, and condition. Typical planning values are:

Pipe Material / Condition Typical C Range
PVC, CPVC, PE, other smooth plastics 140 to 150
Copper or brass 130 to 140
Cement-lined ductile iron 130 to 145
New steel or wrought iron 120 to 140
Concrete pipe 100 to 140
Older rough cast iron or steel 80 to 120

When in doubt, use a conservative C value. Overestimating C can make friction losses look smaller than they really are.

How to Use This Calculator Correctly

  1. Enter the known values for flow rate, pipe length, pipe diameter, and C value.
  2. Leave exactly one field empty for the value you want to calculate.
  3. Use the inside diameter of the pipe, not just the nominal trade size.
  4. Choose a C value that matches the actual pipe material and condition.
  5. Include fittings, valves, and bends by adding equivalent length or by checking minor losses separately.

The result is the friction head loss along the pipe run only. If your system contains many fittings, elevation changes, or pressure requirements at the outlet, those must be considered in the full hydraulic design.

Head Loss vs. Pressure Loss

Head loss is often converted into pressure loss for pump and system calculations.

\Delta P = \rho g h_f

For water in U.S. customary units, a useful shortcut is:

\Delta P_{psi} \approx \frac{h_f}{2.31}

That means every 2.31 feet of water head is about 1 psi.

Example

Suppose water flows at 500 gpm through 1,000 ft of pipe with a Hazen-Williams coefficient of 130 and an inside diameter of 6 inches. Using the U.S. customary form:

h_f = 4.52 \frac{1000 \cdot 500^{1.85}}{130^{1.85} \cdot 6^{4.87}} \approx 8.87 \text{ ft}

This corresponds to a pressure loss of about 3.84 psi across the pipe length. If the same flow were carried in a larger pipe, the friction loss would drop substantially, which is why diameter selection is so important in water system design.

When Hazen-Williams Is a Good Choice

  • Water distribution and service lines
  • Irrigation systems
  • Fire protection piping
  • Preliminary pipe sizing and pump checks
  • Full pipes carrying water under normal operating conditions

When to Use Caution

  • It is an empirical equation, so it is best suited to water and water-like fluids.
  • It is not the best choice for non-water fluids where viscosity matters.
  • It should not be used for partially full gravity pipes or open-channel flow.
  • It can be less appropriate when temperature, fluid properties, or Reynolds number effects are important.

Common Input Mistakes

  • Using nominal pipe size instead of actual inside diameter
  • Selecting a C value that is too optimistic for old or rough pipe
  • Mixing unit systems with the wrong constant
  • Ignoring fittings and valves in the total friction estimate
  • Assuming the equation includes elevation change when it only estimates friction loss
