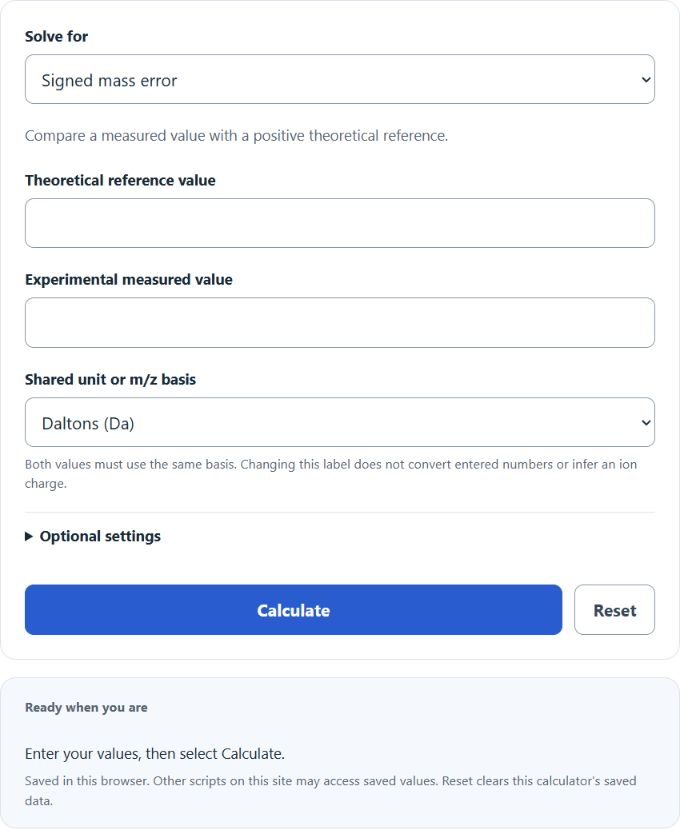

Enter the theoretical and experimental mass values into the calculator to determine the mass error in parts per million (ppm).
Mass Error Formula
Mass error measures how far an observed mass differs from the expected theoretical mass and expresses that difference in parts per million (ppm). In analytical chemistry and mass spectrometry, ppm is preferred because it normalizes the error relative to the size of the mass being measured.
\text{Mass Error (ppm)} = \left(\frac{\text{Experimental Mass} - \text{Theoretical Mass}}{\text{Theoretical Mass}}\right)\times 10^6A useful intermediate quantity is the raw mass difference:
\Delta m = \text{Experimental Mass} - \text{Theoretical Mass}If you need the magnitude only and do not care whether the measured value is above or below the target, use the absolute ppm error:
\left|\text{Mass Error (ppm)}\right|Variable Definitions
- Theoretical Mass – the expected mass from a formula, reference value, or target specification.
- Experimental Mass – the measured mass from an instrument or lab result.
- Mass Error (ppm) – the relative deviation between measured and theoretical mass, scaled by one million.
The calculator can use Daltons (Da), grams (g), kilograms (kg), or milligrams (mg), but both mass inputs must be in the same unit. Because the formula is a ratio, the unit cancels before conversion to ppm.
How to Calculate Mass Error
- Determine the theoretical mass.
- Measure or enter the experimental mass.
- Subtract theoretical mass from experimental mass.
- Divide that difference by the theoretical mass.
- Multiply by 1,000,000 to convert the relative error to ppm.
How to Interpret the Sign
| Result | Meaning |
|---|---|
| Negative ppm | The measured mass is lower than the theoretical mass. |
| 0 ppm | The measured and theoretical masses match exactly. |
| Positive ppm | The measured mass is higher than the theoretical mass. |
In general, a smaller absolute ppm value indicates better agreement between the observed mass and the expected mass.
Rearranged Forms
If you know any two variables, the remaining value can be found with the following rearrangements:
\text{Experimental Mass} = \text{Theoretical Mass}\left(1 + \frac{\text{Mass Error (ppm)}}{10^6}\right)\text{Theoretical Mass} = \frac{\text{Experimental Mass}}{1 + \frac{\text{Mass Error (ppm)}}{10^6}}Example Calculation
Suppose the theoretical mass is 196.083 Da and the experimental mass is 196.078 Da.
\Delta m = 196.078 - 196.083 = -0.005
\text{Mass Error (ppm)} = \left(\frac{-0.005}{196.083}\right)\times 10^6 \approx -25.50This result means the measured mass is approximately 25.50 ppm lower than the theoretical value.
Why ppm Is Used Instead of a Simple Mass Difference
A raw mass difference alone can be misleading because the same absolute difference has a very different impact at small and large masses. Expressing the result in ppm makes the error relative, which allows direct comparison across different compounds, peaks, or measurement ranges.
Common Input Mistakes
| Mistake | Why It Matters | How to Avoid It |
|---|---|---|
| Mixing units | Using g for one input and mg or Da for the other produces an invalid result. | Convert both masses to the same unit before calculating. |
| Reversing theoretical and experimental values | The sign of the ppm error will flip. | Enter the expected value as theoretical and the measured value as experimental. |
| Rounding too early | Small mass differences can create noticeably different ppm values after scaling. | Keep as many decimal places as practical until the final step. |
| Ignoring the sign | You lose information about whether the measurement is high or low. | Use signed ppm for direction and absolute ppm for magnitude only. |
When This Calculator Is Useful
- Checking agreement between a measured mass and a predicted molecular mass
- Evaluating instrument accuracy after a measurement
- Comparing candidate formulas in mass spectrometry workflows
- Verifying whether a result falls within a chosen ppm tolerance window
Practical Notes
- Very small changes in mass can create large ppm shifts, especially at lower masses.
- If you are comparing results across runs, keep the same mass basis and rounding practice each time.
- Use signed ppm when diagnosing bias and absolute ppm when checking closeness to a target.
- If your workflow has an allowed tolerance, compare the absolute ppm error to that limit.
