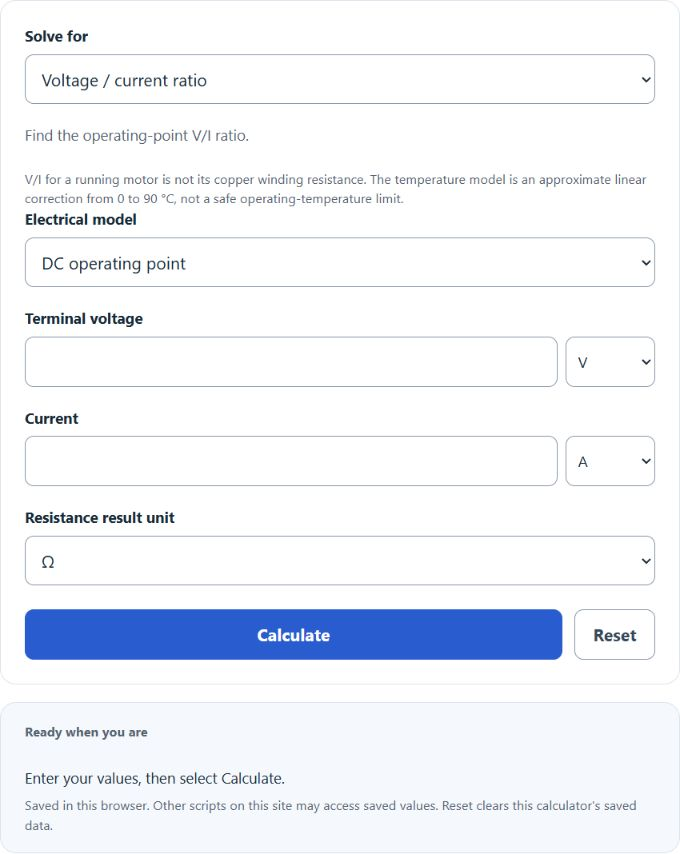

Enter the voltage and current into the calculator to determine the motor’s effective (apparent) resistance at that operating point using the Ohm’s law relationship R = V / I. Note: for a motor that is spinning, V/I is not the winding (DC) resistance because back‑EMF (and, for AC motors, reactance) strongly affects current.
Related Calculators
- Brushless Motor Power Calculator
- Servo Torque Calculator
- Current Limiter Resistor Calculator
- Coil Voltage Calculator
- All Physics Calculators
Motor Resistance Formula
This calculator applies Ohm’s law to estimate a motor’s effective resistance at a specific operating point. If you know any two values—voltage, current, or effective resistance—the third value can be calculated immediately. For a motor that is running, this result is usually an apparent operating resistance, not the same as the motor’s true winding resistance measured with power removed.
R_{eff} = \frac{V}{I}The same relationship can be rearranged when resistance is known and you need voltage or current instead:
V = I \times R_{eff}I = \frac{V}{R_{eff}}Variable Definitions
| Term | Meaning | Typical Units |
|---|---|---|
| Voltage | Electrical potential measured across the motor terminals | V, mV, kV |
| Current | Electrical current flowing into the motor at the same moment the voltage is measured | A, mA, kA |
| Effective Resistance | Operating-point resistance found from measured voltage and current | Ω, kΩ, MΩ |
What the Result Means
The phrase motor resistance can mean different things depending on how the motor is being tested:
| Test Condition | What the Calculator Result Represents |
|---|---|
| Motor de-energized | A value that may be close to actual winding resistance if the measurement is taken directly across the winding with suitable test equipment |
| DC motor at startup or stall | A circuit resistance seen by the supply that is usually lower than the running value because back EMF is minimal |
| DC motor running | An effective resistance influenced by speed, load, and back EMF |
| AC motor running | An apparent resistance based on RMS voltage and RMS current; in practice it behaves more like a simple impedance estimate than pure copper resistance |
This distinction matters because a healthy running motor can show a much higher voltage-to-current ratio than its actual winding resistance. That does not automatically indicate a fault; it often reflects normal motor behavior under load and speed.
How to Calculate Motor Resistance
- Measure the voltage at the motor terminals.
- Measure the current at the same operating condition.
- Use consistent units before calculating.
- Divide the voltage by the current to find effective resistance.
- Interpret the result in context of motor type, load, and whether the motor is stationary or running.
For AC motors, use RMS voltage and RMS current. For the most meaningful comparison, measurements should be taken at the same load, speed, and temperature each time.
Example
If a motor is supplied with 24 volts and draws 2 amperes, the effective resistance is:
R_{eff} = \frac{24}{2} = 12 \ \OmegaIf the effective resistance is 20 ohms and the voltage is 120 volts, the current is:
I = \frac{120}{20} = 6 \ AWhy the Value Changes During Operation
- Back EMF: In many motors, increasing speed creates an opposing voltage that reduces current draw.
- Load changes: Heavier mechanical load usually increases current and lowers the effective resistance value.
- Temperature: Hotter windings generally have higher copper resistance than cold windings.
- AC reactance: In AC motors, inductive effects change the voltage-current relationship.
- Supply variation: Voltage sag, controller behavior, and wiring losses can change the measured result.
Common Uses for a Motor Resistance Calculator
- Checking the relationship between voltage and current at a specific operating point
- Estimating current draw when voltage and effective resistance are known
- Estimating voltage when current and effective resistance are known
- Comparing motor behavior before and after maintenance
- Spotting overload or abnormal operating conditions during troubleshooting
- Learning how Ohm’s law applies to motors in real circuits
Common Mistakes to Avoid
- Assuming the result is always the same as winding resistance
- Using measurements taken at different times instead of the same instant
- Mixing units such as milliamps and amps without converting
- Ignoring the effect of temperature, speed, or load
- Using near-zero current values, which can make the calculated resistance unrealistically large or undefined
- Using supply voltage instead of actual motor terminal voltage when there is significant wiring or controller drop
Practical Interpretation Tips
- A lower effective resistance often corresponds to higher current draw, such as during startup, overload, or mechanical binding.
- A higher effective resistance often appears when the motor is lightly loaded and drawing less current.
- For troubleshooting, compare readings under the same operating conditions rather than comparing unrelated measurements.
- For winding checks, use a dedicated winding resistance measurement with the motor powered off.
Frequently Asked Questions
Is this the same as winding resistance?
No. When the motor is energized and operating, the result is usually an effective or apparent resistance based on the measured voltage and current at that moment.
Can this be used for AC motors?
Yes, but the output should be treated as a practical operating estimate from RMS values rather than a pure winding resistance measurement.
What happens if current is zero?
If the current is zero, resistance cannot be calculated with this relationship because division by zero is undefined.
Why does the result change even when the motor is healthy?
Motor speed, load, temperature, controller action, and supply conditions can all change the measured current, which changes the calculated effective resistance.
