Piston To Wall Clearance Calculator

Reviewed By: Patrick Myers (BSME)

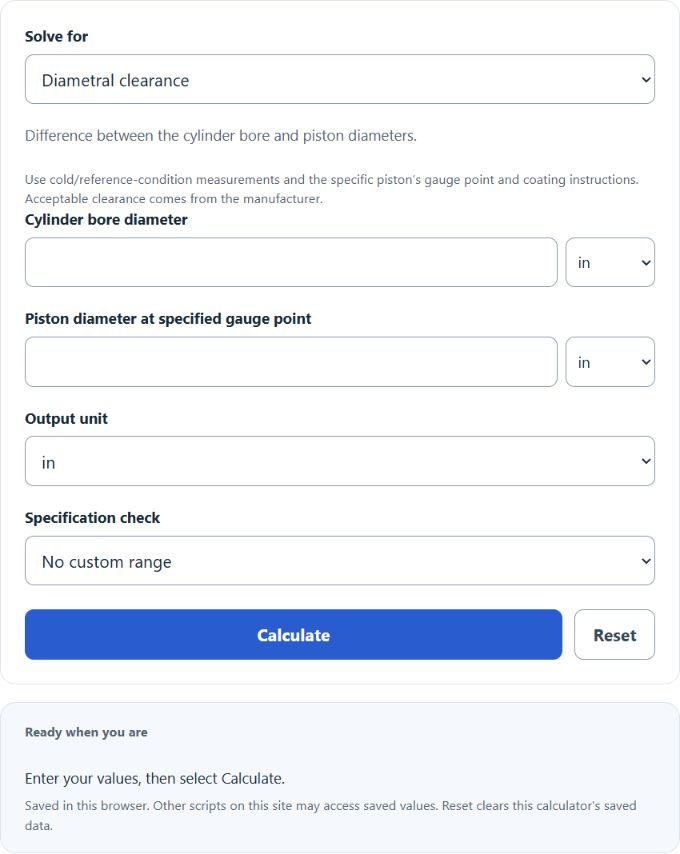

Enter the piston diameter and cylinder diameter into the calculator to determine the piston to wall clearance. This calculator can also evaluate any of the variables given the others are known.

Piston To Wall Clearance Formula

The following formula is used to calculate the piston to wall clearance.

PTWC = CD - PD

Variables:

PTWC is the piston to wall clearance (same units as PD and CD)
PD is the piston diameter (same units as PTWC and CD)
CD is the cylinder diameter (same units as PTWC and PD)

To calculate the piston to wall clearance, subtract the piston diameter from the cylinder diameter. This will give the clearance between the piston and the cylinder wall (as a diametral difference).

Common Piston-to-Wall Clearance Conversion Table (mm, cm, m, in, ft)
Millimeters (mm)	Centimeters (cm)	Meters (m)	Inches (in)	Feet (ft)
0.0127	0.00127	0.0000127	0.0005	0.0000417
0.0254	0.00254	0.0000254	0.0010	0.0000833
0.0381	0.00381	0.0000381	0.0015	0.0001250
0.0508	0.00508	0.0000508	0.0020	0.0001667
0.0635	0.00635	0.0000635	0.0025	0.0002083
0.0762	0.00762	0.0000762	0.0030	0.0002500
0.0889	0.00889	0.0000889	0.0035	0.0002917
0.1016	0.01016	0.0001016	0.0040	0.0003333
0.1143	0.01143	0.0001143	0.0045	0.0003750
0.1270	0.01270	0.0001270	0.0050	0.0004167
0.1397	0.01397	0.0001397	0.0055	0.0004583
0.1524	0.01524	0.0001524	0.0060	0.0005000
0.1651	0.01651	0.0001651	0.0065	0.0005417
0.1778	0.01778	0.0001778	0.0070	0.0005833
0.1905	0.01905	0.0001905	0.0075	0.0006250
0.2032	0.02032	0.0002032	0.0080	0.0006667
0.2159	0.02159	0.0002159	0.0085	0.0007083
0.2286	0.02286	0.0002286	0.0090	0.0007500
0.2413	0.02413	0.0002413	0.0095	0.0007917
0.2540	0.02540	0.0002540	0.0100	0.0008333
* Rounded to 4–7 decimals. Exact factors: 1 in = 25.4 mm, 1 ft = 12 in.

What is a Piston To Wall Clearance?

Piston to wall clearance refers to the small gap between the piston and the cylinder wall in an internal combustion engine. This clearance is crucial for the proper functioning of the engine as it allows for thermal expansion of the piston when the engine is running, prevents the piston from seizing or causing excessive wear, and helps in maintaining a thin layer of lubricating oil. The exact clearance varies depending on the type of engine and the materials used, but it is typically measured in thousandths of an inch.

How to Calculate Piston To Wall Clearance?

The following steps outline how to calculate the Piston To Wall Clearance.

First, determine the piston diameter (PD) in millimeters.
Next, determine the cylinder diameter (CD) in millimeters.
Next, subtract the piston diameter (PD) from the cylinder diameter (CD).
The result is the Piston To Wall Clearance (PTWC).
After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem:

Use the following variables as an example problem to test your knowledge.

piston diameter (PD) = 80.00 mm

cylinder diameter (CD) = 80.05 mm

Follow-Up Calculations

If your forged pistons measure about 0.0035 inch of piston-to-wall clearance on a fresh small-block, a healthy 9.8:1 street engine might still show roughly 180-200 psi on a warm test. If you want to estimate cylinder cranking pressure, it helps you tell whether a low reading is more likely caused by rings, cam timing, or valve sealing than by piston fit alone.

A turbo 383 with around 0.0040 inch of clearance is often paired with a cam on 114° lobe separation, because the wider angle reduces overlap and keeps idle quality more manageable under boost. You can compare cam timing angles to see how moving from 108° to 114° changes overlap, which in turn affects cylinder pressure and how forgiving the tune will be.

If you set forged pistons at about 0.0045 inch clearance because the engine is meant to live at 12 psi, that same boost level might add roughly 100-120 hp on a modest combo. Use the estimate power from boost tool to check whether your boost target is enough for a 450-hp goal, since more boost usually means more heat and a bigger expansion margin to plan for.
