Plasma Frequency Calculator

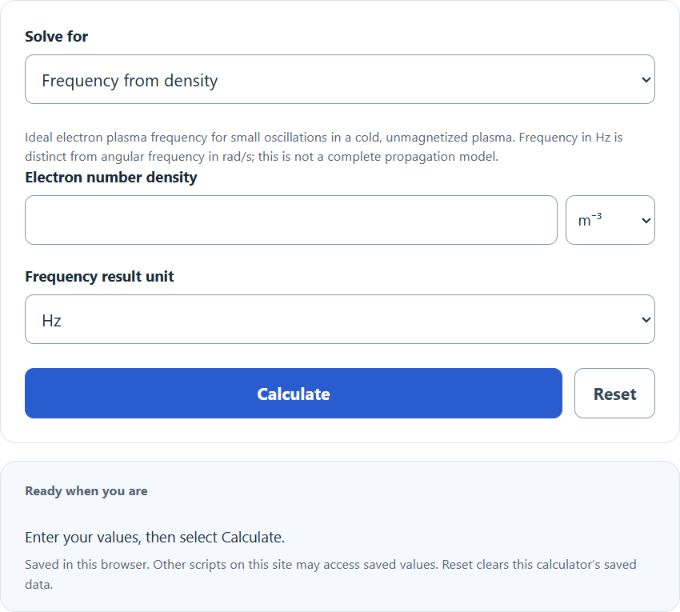

Enter the electron number density of the material into the calculator to determine the plasma frequency.

• All Physics Calculators
• Resonant Frequency Calculator
• Recombination Frequency Calculator

Plasma Frequency Formula

The electron plasma frequency is the natural oscillation rate of electrons after a small displacement from equilibrium. In a cold, unmagnetized plasma, it is set mainly by electron number density, which makes this calculator useful for quick cutoff-frequency, wave-propagation, and plasma-diagnostic estimates.

f_p = \frac{1}{2\pi}\sqrt{\frac{n_e e^2}{\varepsilon_0 m_e}}

• f_p = plasma frequency in hertz (Hz)
• n_e = electron number density
• e = elementary charge
• ε₀ = vacuum permittivity
• m_e = electron mass

If you need angular frequency rather than standard frequency in hertz, use the conversion below.

\omega_p = 2\pi f_p

If plasma frequency is known and you want to recover the corresponding electron number density, rearrange the equation as follows.

n_e = \frac{(2\pi f_p)^2 \varepsilon_0 m_e}{e^2}

How to Use the Calculator

1. Enter the electron number density if you want to calculate plasma frequency.
2. Or enter plasma frequency if you want to solve for electron number density.
3. Leave the physical constants at their default values unless you intentionally need a modified model.
4. Select the correct units before calculating.
5. Interpret the result as an ideal first-order estimate for electron oscillation behavior.

Why Plasma Frequency Matters

Plasma frequency is often treated as a cutoff marker for electromagnetic wave propagation. In the simplest model, waves below the plasma frequency are strongly reflected or attenuated, while waves above it can propagate more easily. That makes the value important in plasma physics, ionospheric studies, RF design, semiconductor optics, and laser-plasma interactions.

Scaling Behavior

The key trend is that plasma frequency grows with the square root of electron density, not linearly. That means density must rise quickly to produce a large frequency change.

• If electron density increases by a factor of 4, plasma frequency doubles.
• If electron density increases by a factor of 100, plasma frequency increases by a factor of 10.
• Doubling plasma frequency requires 4 times the electron density.

With the physical constants inserted, the equation is often written in a compact engineering form.

f_p\,[\text{Hz}] \approx 8.98\sqrt{n_e\,[\text{m}^{-3}]}

f_p\,[\text{Hz}] \approx 8.98\times10^3\sqrt{n_e\,[\text{cm}^{-3}]}

Unit Conversion Notes

Electron density is commonly reported in per cubic meter, per cubic centimeter, or per cubic millimeter. When doing manual calculations, make sure the density unit matches the formula form you are using.

1\ \text{cm}^{-3} = 10^6\ \text{m}^{-3}

1\ \text{mm}^{-3} = 10^9\ \text{m}^{-3}

Example Calculations

If the electron number density is 10¹⁸ m^-3, the plasma frequency is approximately 8.98 GHz.

f_p = \frac{1}{2\pi}\sqrt{\frac{(10^{18})e^2}{\varepsilon_0 m_e}} \approx 8.98\times10^9\ \text{Hz}

If the measured plasma frequency is 100 MHz, the corresponding electron number density is about 1.24 × 10¹⁴ m^-3.

n_e = \frac{(2\pi \cdot 10^8)^2 \varepsilon_0 m_e}{e^2} \approx 1.24\times10^{14}\ \text{m}^{-3}

Quick Reference Values

Assumptions and Limitations

• This calculator is based on the electron plasma frequency, so it uses electron mass rather than ion mass.
• It assumes small oscillations about equilibrium.
• It is most accurate as an idealized estimate for a cold, unmagnetized plasma.
• Real systems can be affected by collisions, temperature, magnetic fields, damping, and geometry.
• For wave-transmission problems, the result is best interpreted as a first-pass cutoff estimate rather than a complete propagation model.

Additional Context

In many applications, plasma frequency is closely related to the idea of critical density. If a signal frequency is fixed, the inverse form of the equation tells you the density at which that signal reaches the plasma cutoff. This is especially useful when comparing laboratory plasmas, ionospheric electron densities, or conductive materials with different free-electron concentrations.

FAQ

What increases plasma frequency?

Higher electron number density increases plasma frequency. Because the relationship is proportional to the square root of density, large density changes are needed for equally large frequency changes.

Is plasma frequency the same as resonant frequency?

Not exactly. Plasma frequency is a collective oscillation property of the electron population, while resonant frequency often depends on geometry, boundaries, or circuit elements.

Can this be used for solids or semiconductors?

Yes, as a useful estimate when the free-electron density is known. Real material behavior can still be modified by band structure, damping, and other material-specific effects.

What happens when an electromagnetic wave is below the plasma frequency?

In the ideal model, the wave does not propagate efficiently through the plasma and is instead strongly reflected or attenuated.
