Enter the local pressure, freestream pressure, and dynamic pressure into the calculator to determine the pressure coefficient. This calculator helps in analyzing the pressure variations on a body in a fluid flow.

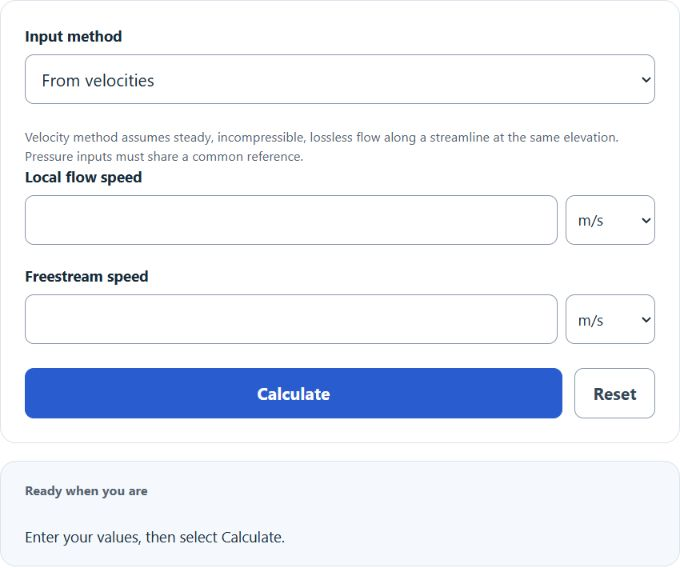

Pressure Coefficient Calculator

Pick the inputs you have. Cp is dimensionless.

From velocities
From pressures
Uses incompressible form: Cp = 1 − (V/V∞)²

Related Calculators

Pressure Coefficient Formula

The pressure coefficient describes how the pressure at a specific point in a flow compares with the freestream reference pressure after being normalized by dynamic pressure. This makes it especially useful for comparing pressure behavior on airfoils, vehicles, pipes, buildings, and other surfaces exposed to moving fluids.

C_p = \frac{P - P_0}{q}

If you need to determine dynamic pressure from flow conditions, use:

q = \frac{1}{2}\rho V^2

Substituting that relationship gives the expanded form:

C_p = \frac{P - P_0}{\frac{1}{2}\rho V^2}

Variable Definitions

Term Meaning Practical Note
Pressure coefficient (Cp) A dimensionless measure of local pressure relative to the freestream. Because it has no units, it is ideal for comparing pressure data across tests and designs.
Local pressure (P) The pressure at the exact point being analyzed. This is usually the static pressure at a surface tap, probe location, or modeled point.
Freestream pressure (P0) The undisturbed reference pressure away from the object or disturbance. Choose a consistent reference location so all coefficient values are comparable.
Dynamic pressure (q) The velocity-based pressure scale for the flow. It must be nonzero, and all pressure inputs should use consistent units.

How to Use the Calculator

  1. Enter the local pressure at the point of interest.
  2. Enter the freestream reference pressure for the surrounding flow.
  3. Enter the dynamic pressure for the same flow condition.
  4. Calculate the result to obtain the pressure coefficient.

The calculator returns a dimensionless value, so the main requirement is consistency: the local pressure, freestream pressure, and dynamic pressure must all be expressed in compatible pressure units.

How to Interpret the Result

Result Type What It Means Typical Interpretation
Positive value Local pressure is higher than the freestream reference. Often associated with deceleration of flow or high-pressure regions on a surface.
Near zero Local pressure is close to the freestream pressure. Indicates little pressure change relative to the reference flow.
Negative value Local pressure is below the freestream reference. Often indicates accelerated flow or suction regions.
Large magnitude The pressure difference is large compared with dynamic pressure. This can signal strong loading, strong acceleration, or a weak dynamic-pressure reference.

Example Calculation

Using a local pressure of 101325 Pa, a freestream pressure of 100000 Pa, and a dynamic pressure of 500 Pa:

C_p = \frac{101325 - 100000}{500}
C_p = 2.65

This result indicates that the local pressure is significantly above the selected freestream pressure relative to the flow’s dynamic pressure scale.

Why Pressure Coefficient Matters

  • Aerodynamics: helps evaluate pressure loading on wings, spoilers, ducts, and vehicle surfaces.
  • Hydrodynamics: supports analysis of hulls, foils, and submerged bodies moving through water.
  • Wind engineering: useful for estimating external pressure behavior on roofs, walls, and structural components.
  • Testing and simulation: makes wind-tunnel, CFD, and field measurements easier to compare because the result is normalized.
  • Design optimization: pressure coefficient distributions help identify high-pressure zones, suction regions, and potential separation behavior.

Common Input Mistakes

  • Mixing pressure types: local and freestream values should be based on the same pressure convention.
  • Using inconsistent units: all pressure values must be entered on the same basis before comparison.
  • Using an incorrect reference pressure: a poor freestream reference changes every calculated coefficient.
  • Entering a very small dynamic pressure: this can create unrealistically large coefficient values.
  • Ignoring flow regime effects: compressibility, turbulence, and measurement location can all affect interpretation.

Practical Notes

  • The pressure coefficient is dimensionless, so it is best used as a comparison metric rather than as a standalone pressure value.
  • For surface studies, calculate the coefficient at multiple points to build a pressure distribution rather than relying on a single location.
  • When comparing designs, keep the reference pressure and dynamic pressure definition consistent across all cases.
  • In low-speed applications, the coefficient is often used to visualize how the flow accelerates and decelerates around a body.

Frequently Asked Questions

Is the pressure coefficient unitless?
Yes. It is a ratio of pressure difference to dynamic pressure, so the pressure units cancel.

Can the pressure coefficient be negative?
Yes. A negative value means the local pressure is lower than the freestream reference pressure.

What happens if dynamic pressure is zero?
The coefficient cannot be evaluated because the formula would involve division by zero.

Do larger values always mean better performance?
No. The ideal result depends on the application. Some designs need high-pressure recovery, while others benefit from controlled low-pressure regions.
