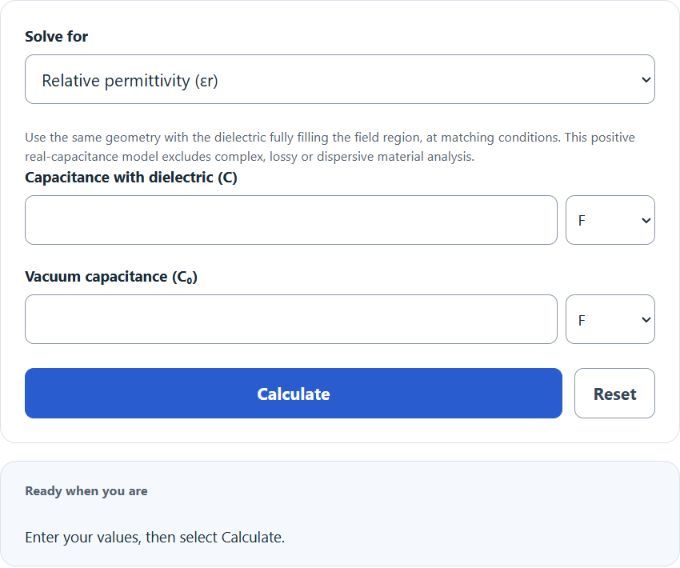

Enter the capacitance of the material and the capacitance in a vacuum into the calculator to determine the relative permittivity. This calculator helps in understanding the dielectric properties of a material.
Related Calculators
- Plasma Frequency Calculator
- Charge Flow Calculator
- Series Current Calculator
- Radio Coverage Calculator
- All Physics Calculators
Relative Permittivity Formula
Relative permittivity measures how strongly a material increases capacitance compared with a vacuum, using the same capacitor geometry. Because it is a ratio, relative permittivity is dimensionless.
\varepsilon_r = \frac{C}{C_0}If you already know the relative permittivity and need to solve for one of the capacitance values, rearrange the relationship like this:
C = \varepsilon_r C_0
C_0 = \frac{C}{\varepsilon_r}Variable Guide
| Symbol | Meaning | Unit |
|---|---|---|
| εr | Relative permittivity of the material, also called the dielectric constant in many engineering contexts. | None |
| C | Capacitance with the material present between the conductors. | F, mF, or µF |
| C0 | Capacitance of the same physical setup if the dielectric were replaced by vacuum. | Same unit as C |
Important: The ratio is only valid when C and C0 refer to the same geometry, plate spacing, and conductor arrangement. Only the dielectric should change.
How to Use the Calculator
- Enter any two known values: C, C0, or εr.
- Make sure both capacitance inputs use the same unit.
- Calculate the missing value.
- Interpret the result:
- A larger relative permittivity means the material increases capacitance more strongly.
- A value of 1 means the material behaves like a vacuum reference.
Why the Ratio Works
Capacitance depends on permittivity and geometry. For a fixed geometry, the material effect can be isolated by comparing the capacitance with the dielectric to the capacitance in vacuum.
C = \frac{\varepsilon A}{d}C_0 = \frac{\varepsilon_0 A}{d}\varepsilon_r = \frac{\varepsilon}{\varepsilon_0}This is why relative permittivity is often used to compare insulating materials in capacitors, sensors, cables, and other electric-field applications.
Result Interpretation
| Condition | What It Means |
|---|---|
\varepsilon_r = 1 |
The material matches the vacuum reference. |
\varepsilon_r > 1 |
The material increases capacitance compared with vacuum. |
| Larger εr | Greater dielectric effect and higher capacitance for the same geometry. |
Examples
Example 1: Solving for Relative Permittivity
If the capacitance with a material is 6 µF and the vacuum capacitance for the same setup is 2 µF:
\varepsilon_r = \frac{6}{2} = 3The material produces three times the capacitance of the vacuum case.
Example 2: Solving for Capacitance with a Material
If the relative permittivity is 4.5 and the vacuum capacitance is 0.8 µF:
C = 4.5 \times 0.8 = 3.6 \,\mu\text{F}Example 3: Solving for Vacuum Capacitance
If the capacitance with the material is 12 mF and the relative permittivity is 2.4:
C_0 = \frac{12}{2.4} = 5 \,\text{mF}Common Mistakes to Avoid
- Mixing units: Do not enter C in one unit and C0 in another unless you convert first.
- Changing geometry: The vacuum capacitance must come from the same capacitor dimensions and spacing.
- Confusing absolute and relative permittivity: Relative permittivity is a ratio; absolute permittivity includes physical units.
- Treating the answer like a percentage: Relative permittivity is a ratio, not a percent.
Related Formula: Absolute Permittivity
If you need the material’s absolute permittivity instead of just the ratio, use the relationship below:
\varepsilon = \varepsilon_r \varepsilon_0
Use relative permittivity when comparing materials. Use absolute permittivity when solving field equations or deriving capacitance directly from geometry.
Where Relative Permittivity Is Useful
- Comparing dielectric materials for capacitor design
- Estimating how insulation changes stored charge and electric field behavior
- Evaluating sensor materials and substrate choices
- Understanding why the same capacitor geometry can produce different capacitance values with different dielectrics
Frequently Asked Questions
Does relative permittivity have units?
No. It is a pure ratio comparing a material’s permittivity to the permittivity of vacuum.
Can I use different capacitance units?
You can use any capacitance unit supported by the calculator, but C and C0 must be in the same unit before the ratio is taken.
Is relative permittivity the same as dielectric constant?
In most introductory and practical engineering use, the two terms are commonly used to mean the same thing.
Why does the calculator only need two values?
The relationship among C, C0, and εr is algebraic, so once any two are known, the third can be solved directly.
