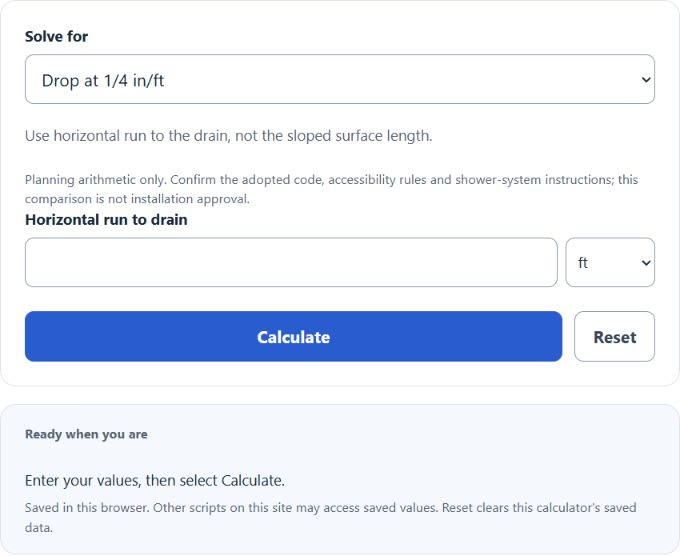

Enter the distance to the drain (the horizontal run) into the calculator to find the minimum required vertical drop based on the common code minimum of 1/4 inch per foot (≈2% slope). You can also check a custom drop against typical recommendations.
Related Calculators
- Concrete Slope Calculator
- Laticrete Grout Calculator
- Tile Labor Cost Calculator
- Cost Per M2 Calculator
- All Construction Calculators
Shower Pan Slope Formula
\text{Drop (in)}=\frac{D(\text{ft})}{4}\\
S_{\text{in/ft}}=\frac{\text{Drop (in)}}{D(\text{ft})}Variables:
- Drop is the vertical drop from the perimeter to the drain (in)
- D is the horizontal distance to the drain (ft)
- S is the slope (in/ft). A common minimum requirement is 0.25 in/ft (1/4 in per foot, ≈2% slope).
For the common minimum slope of 1/4 inch per foot, the required drop in inches can be found by dividing the distance (in feet) by 4. The slope itself is the drop divided by the run (distance).
How to Calculate Shower Pan Slope?
The following steps outline how to calculate a shower pan’s slope and the minimum drop to the drain.
- First, determine the distance to the drain (ft) from the farthest point of the shower floor.
- Next, choose the target slope (a common minimum is 1/4 in per ft).
- Compute the required drop: Drop (in) = D (ft) × 0.25 (equivalently, Drop (in) = D (ft) / 4).
- If you already know your planned drop, compute the slope: S (in/ft) = Drop (in) / D (ft), then compare it with recommendations and your local code.
- After inserting the variables and calculating the result, check your answer with the calculator above.
Example Problem :
Use the following variables as an example problem to test your knowledge.
distance (ft) = 2.5
Minimum required drop (in) = 2.5 × 0.25 = 0.625 in (≈15.9 mm). This corresponds to a slope of 0.25 in/ft (about 1:48 or ≈2.08%).
FAQs
What is the importance of calculating the correct shower pan slope?
The correct shower pan slope is crucial for ensuring proper water drainage, preventing water pooling, and reducing the risk of mold and mildew growth in the bathroom.
Can I calculate the shower pan slope for any shower size?
Yes. The required slope is typically specified (often a minimum of 1/4 inch per foot toward the drain, depending on local code). For any shower size, you can compute the required drop by multiplying the distance to the drain (in feet) by 0.25 in/ft.
What materials are needed for constructing a sloped shower pan?
Materials typically include a pre-slope mortar bed, waterproof membrane, drain assembly, and tile or other finished shower floor material.
Is it possible to adjust the slope after the shower pan has been installed?
Adjusting the slope after installation is difficult and may require significant renovation. It’s best to verify the slope during the initial construction.
