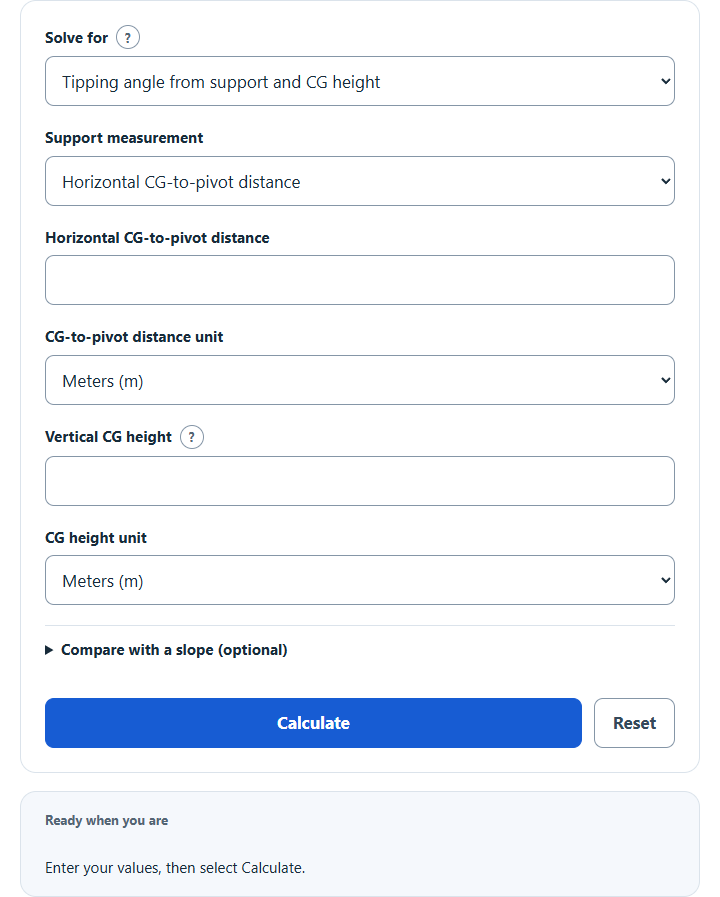

Calculate the tipping angle of an object from its center of gravity height and CG-to-pivot distance, or solve the base width or CG height for a target angle.

Use the geometry in the intended tipping direction. Unit changes reinterpret the entered number; they do not convert it. This static model does not establish a safe operating slope.

Height of the center of gravity above the support plane, not total object height.

Compare with a slope (optional)
Blank compares with level ground (0ยฐ). Enter a slope below 90ยฐ; the comparison is static geometry only.


Related Calculators

Tipping Angle Formula

The calculator uses right-triangle geometry between vertical CG height, horizontal CG-to-pivot distance, and static tipping angle in the chosen direction. It assumes a rigid cross-section and fixed support geometry, without prior sliding or dynamic motion.

TA = arctan((BL) / (H))
BL = H ร— tan(TA)
H = (BL) / (tan(TA))
  • TA = tipping angle
  • BL = horizontal distance from the CG projection to the chosen pivot edge, not full base width
  • H = vertical center-of-gravity height above the support plane, not total object height

CG height and CG-to-pivot distance must use the same length basis before calculation. Select meters, centimeters, feet, or inches independently for each entered length. Unit factors are applied internally, but changing a unit reinterprets the number in its field rather than converting that number. Select the solved-length unit in the inverse modes. A target tipping angle must be strictly above 0ยฐ and below 90ยฐ, and the comparison slope must be at least 0ยฐ and below 90ยฐ.

In direct-edge mode, enter the horizontal distance from the CG projection to the selected tipping edge. In full-base mode, the model uses BL = B/2 โˆ’ o, where B is full base width and o is the CG offset from the midpoint toward that edge. Enter 0 for centered CG. The offset must leave a positive edge distance. Solving for full width uses B = 2 ร— (H ร— tan(TA) + o); the hidden offset is inactive in direct-edge mode.

Tipping Angle Reference Tables

These bands describe geometry only. They are not validated stability ratings or safe-use categories. A wider support distance or lower CG generally increases the static geometric angle, but sliding, dynamic loads, compliance, shifting cargo, and terrain can govern actual behavior.

Tipping angle Geometric interpretation
0ยฐ to 10ยฐ Small CG-to-pivot distance relative to CG height; this is not a measured ease-of-tipping category.
10ยฐ to 25ยฐ CG-to-pivot distance remains below CG height; actual stability needs more than this geometry.
25ยฐ to 45ยฐ CG-to-pivot distance approaches CG height; equal positive dimensions give 45ยฐ.
45ยฐ or more CG-to-pivot distance is at least CG height. No equipment operating limit or safety classification is implied.
If you know this Use this formula
Height and base length TA = arctan(BL / H)
Height and tipping angle BL = H ร— tan(TA)
Base length and tipping angle H = BL / tan(TA)

Example

If the vertical CG height is 2 m and the horizontal CG-to-pivot distance is 0.5 m, then:

TA = arctan((0.5) / (2)) โ‰ˆ 14.04^ยฐ

The ideal static boundary is approximately 14.03624347ยฐ, or 14.04ยฐ rounded to two decimals; the calculatorโ€™s angle answer shows three decimals. This is not a safe operating recommendation. Angular margin is the modeled tipping angle minus the entered comparison slope, and can be positive, zero, or negative. A positive margin alone does not establish safety. The equivalent static lateral factor is BL/H in g, calculated directly; it is not a dynamic rollover prediction. Near a numerical boundary the forward margin sign may be explicitly unresolved, and angles near 90ยฐ are shown with their positive complement rather than falsely reported as 90ยฐ.
