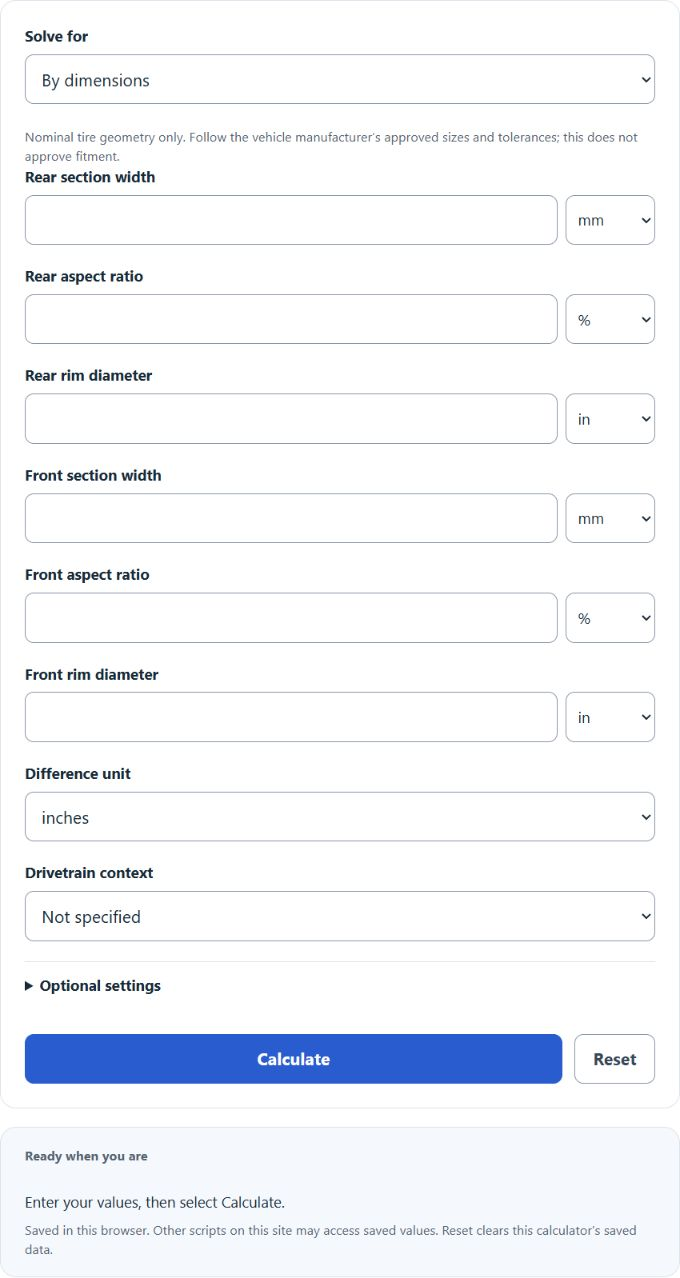

Staggered Tire Calculator

Enter the front and rear tire widths, aspect ratios, and wheel diameters into the calculator to determine the stagger of your tires (difference in overall diameter). This calculator helps in setting up a staggered tire configuration for vehicles.

By Dimensions By Tire Size Code

Enter all values to calculate the stagger (difference in overall diameter)

Quick fill rear (optional) Rear Tire Width (mm) Rear Aspect Ratio (%) Rear Wheel Diameter (inches) Quick fill front (optional) Front Tire Width (mm) Front Aspect Ratio (%) Front Wheel Diameter (inches)

Result Unit Drivetrain type (for guidance) Stagger (difference in overall diameter) Rear Overall Diameter (in) Front Overall Diameter (in) Stagger interpretation

Staggered Tire Formula

The following formula is used to calculate the stagger of tires (rear overall diameter minus front overall diameter):

S = (RW * RA / 100 * 2 / 25.4 + WD_R) - (FW * FA / 100 * 2 / 25.4 + WD_F)

Variables:

S is the stagger (inches)
RW is the rear tire width (mm)
RA is the rear aspect ratio (%)
WD_R is the rear wheel (rim) diameter (inches)
FW is the front tire width (mm)
FA is the front aspect ratio (%)
WD_F is the front wheel (rim) diameter (inches)

To calculate the stagger, subtract the front tire diameter from the rear tire diameter. Each tire’s overall diameter is calculated by multiplying the tire width by the aspect ratio (to get sidewall height in mm), multiplying by 2 (top and bottom sidewalls), dividing by 25.4 (to convert from mm to inches), and finally adding the wheel (rim) diameter in inches.

What is Staggered Tire Configuration?

A staggered tire configuration is when the front and rear tires are different sizes—most commonly a wider rear tire than the front, and sometimes a different wheel diameter as well. This setup is often used in performance vehicles to improve traction and handling, especially during acceleration and cornering. In this calculator, “stagger” refers specifically to the difference in overall tire diameter between the rear and front tires.

How to Calculate Stagger?

The following steps outline how to calculate the stagger of tires:

First, determine the rear tire width (RW) in millimeters.
Next, determine the rear aspect ratio (RA) as a percentage.
Then, determine the front tire width (FW) in millimeters.
After that, determine the front aspect ratio (FA) as a percentage.
Next, determine the rear wheel diameter (WD_R) and front wheel diameter (WD_F) in inches.
Use the formula to calculate the stagger (S).
Finally, compare the calculated stagger with the desired setup for your vehicle.

Example Problem:

Use the following variables as an example problem to test your knowledge.

Rear tire width (RW) = 275 mm

Rear aspect ratio (RA) = 35 %

Front tire width (FW) = 245 mm

Front aspect ratio (FA) = 40 %

Rear wheel diameter (WD_R) = 19 inches; Front wheel diameter (WD_F) = 19 inches

Follow-Up Calculations

With a common stagger like a 225/45R18 front tire and a 255/35R18 rear tire, the rear diameter is about 0.95 inches smaller, or roughly 3.7%, so a vehicle calibrated for the larger tire will travel a different distance per revolution. If you want to check the odometer offset, that mismatch tells you whether your speedometer will read high or low and how much the trip meter can drift over a long drive.

A staggered setup that makes your driven tires about 3% taller can turn an indicated 70 mph into roughly 72.1 mph, and at a 1.5-second reaction time that adds about 4.4 feet before you even start braking. You can estimate the distance you cover while reacting to see how a small tire-size mismatch slightly stretches your safety margin at highway speeds.

A 3,400 lb car launching at 0.9 g can shift roughly 765 lb to the rear axle, which is one reason many performance cars run wider rear tires in a staggered layout. If you want to estimate how much load moves rearward, that number helps you decide whether the rear tire size you chose has enough grip for hard acceleration without overwhelming the fronts in normal driving.
