Calculate motor RPM from voltage and Kv, solve for voltage or Kv, adjust for winding voltage drop, and estimate geared output speed.

Use 1 for direct drive, 5 for a 5:1 reduction, or 0.5 for a 1:2 speed increase.

Optional settings

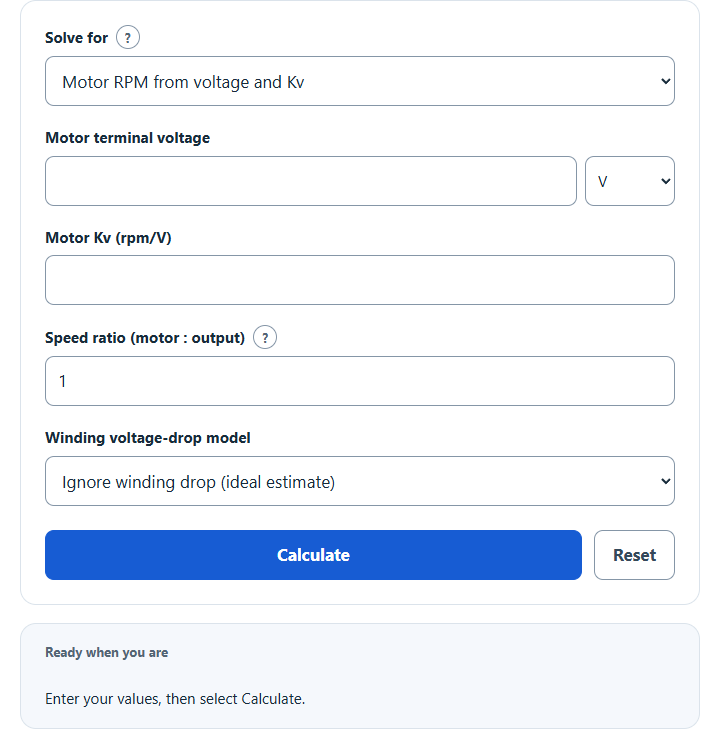

Calculator Functions

FunctionWhat it doesWhat it requires
Motor RPM from voltage and KvFinds the speed of a DC or brushless motor from its voltage and speed constantRequires the motor terminal voltage and the motor Kv in rpm per volt
Voltage from RPM and KvFinds the voltage a motor needs to reach a target speedRequires the motor shaft speed and the motor Kv
Kv from RPM and voltageFinds the speed constant of a motor from a measured speed and voltageRequires the motor shaft speed and the motor terminal voltage

Every function also takes a speed ratio between the motor and the output: 1 for direct drive, 5 for a 5:1 reduction. The winding voltage-drop setting either ignores the drop, for an ideal no-load estimate, or includes current × resistance, which adds fields for motor current and effective winding resistance. Voltage can be in V, mV or kV and speed in rpm, rps or rad/s.

Voltage to RPM Formulas

n = Kv × (V − I × R)
nMotor shaft speed (rpm)
KvSpeed constant of the motor (rpm per volt)
VVoltage at the motor terminals (V)
IMotor current (A)
REffective winding resistance (Ω)

Kv ties the speed of a motor to its back-EMF voltage [1], which is the terminal voltage less the I × R drop in the winding. With the drop ignored the formula becomes RPM = Kv × V, the no-load speed, which rises in proportion to voltage [2]. Under load, speed falls in a straight line as torque increases [2]. The output speed after gearing is n ÷ ratio.

Motor RPM from voltage and Kv

A 1,000 Kv motor on 12 V turns at 1,000 × 12 = 12,000 rpm with no load. Drawing 10 A through a 0.05 Ω winding drops 0.5 V, which leaves 1,000 × 11.5 = 11,500 rpm. Through a 5:1 reduction the 12,000 rpm becomes 2,400 rpm at the output.

Voltage from RPM and Kv

V = n ÷ Kv + I × R

A 500 Kv motor needs 6,000 ÷ 500 = 12 V to reach 6,000 rpm at the shaft, plus the winding drop when one is entered. The speed entered here is the motor shaft speed, before any gearing.

Kv from RPM and voltage

Kv = n ÷ (V − I × R)

A motor measured at 11,100 rpm with no load on 11.1 V has a Kv of 11,100 ÷ 11.1 = 1,000 rpm per volt.

How to Calculate Motor RPM

For a DC or brushless motor, multiply the voltage at the motor by its Kv rating: RPM = Kv × V. Subtract I × R from the voltage first for a speed under load, and divide by the gear ratio for the output speed. An AC induction motor works differently, because its speed is set by the supply frequency and the number of poles: synchronous speed = 120 × frequency ÷ poles [3]. A 4-pole motor on 60 Hz has a synchronous speed of 1,800 rpm and runs slightly slower under load, for example 1,750 rpm, a difference called slip [3]. This calculator covers the Kv formula only.

Limits of This Estimate

  • With the winding drop ignored the result is a no-load speed. Friction, load and controller losses make a real motor turn slower.
  • The voltage is the voltage at the motor, which is lower than the battery voltage when a speed controller runs below full throttle.
  • Kv, current and resistance have to follow the same convention. Brushless motor data may quote phase or line values, and winding resistance rises as the motor heats up.
  • Kv here means rpm per volt, not kilovolts. The result is not a safe operating voltage or a speed rating for the motor.
