Calculate wainscoting panel count, spacing and material cost from your wall length, with typical height, panel and stile sizes filled in to edit.
Wainscoting Formula

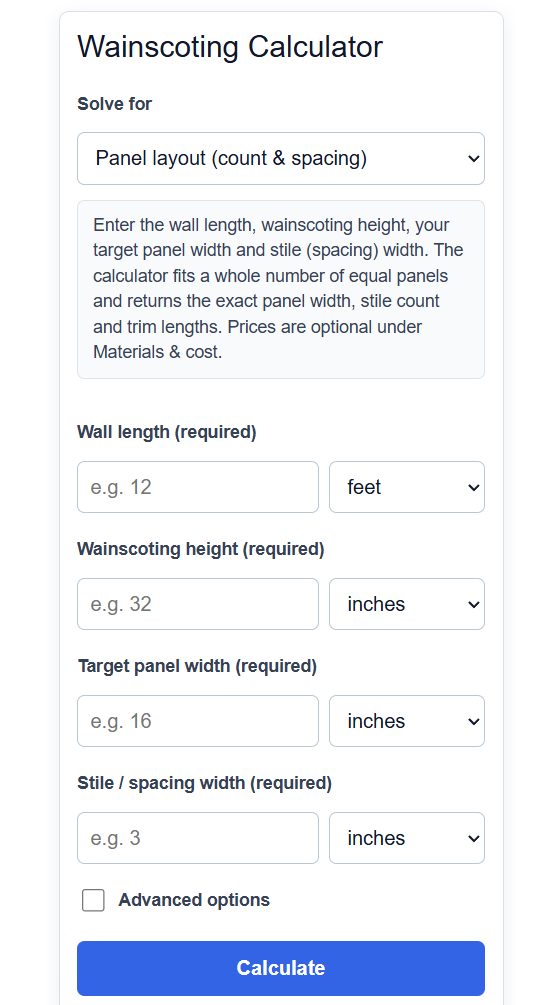

The calculator has two modes. The panel layout mode spaces the panels evenly across the wall, and the materials and cost mode adds up the trim and prices that layout.
Panel layout uses these formulas:
N = max(1, round((L - S) / (W + S)))
P = (L - (N + 1) * S) / N
- N = number of panels on the wall
- P = actual width of each panel (in)
- L = wall length (in)
- W = your target panel width (in)
- S = stile / spacing width, the vertical board between panels (in)
The first formula selects the nearest whole number of panels (at least one; positive halves round up) using your target panel width and the spacing you want between them. The second formula then takes that whole panel count and re-solves for the exact panel width so the panels and stiles fill the wall with no leftover gap. There is always one more stile than there are panels, so the number of stiles is N + 1.
In the materials and cost mode the same layout is run; then each trim run and price is totaled:
Cost = (N*M)*Pp + ((N+1)*M)*Ps + Lr*Pr + Lc*Pc + Lb*Pb
- M = identical wall count; Pp = price per panel; Ps = price per full-height stile. Lr, Lc and Lb are total linear feet across all walls, including the selected continuous-material allowance.
- Lr = rail length (top and bottom), equal to 2 x L per wall
- Lc = chair rail / cap length, equal to L per wall
- Lb = baseboard length, equal to L per wall
- Pr, Pc, Pb = price per linear foot for rail, cap and baseboard
Stile material length is (N + 1) x wainscoting height per wall. This uses full-height stiles with full-length rails laid over them. The continuous-material allowance applies to trim lengths and panel area; panel and stile piece counts are unchanged. The identical-wall count multiplies the estimate. Subtract twice the rail width from the panel opening height. Blank prices count as zero, so missing prices produce a partial USD estimate; labor, tax, fasteners and stock-board cutting are excluded.
Typical Wainscoting Dimensions
Use these common ranges as a starting point for the height, panel width and stile inputs.
| Element | Typical range | Notes |
|---|---|---|
| Wainscoting height | 32 to 36 in | Often set near one third of wall height |
| Panel width | 12 to 18 in | Wider panels read more formal |
| Stile / spacing width | 2 to 4 in | The vertical board between panels |
| Rail width | 2.5 to 3.5 in | Top and bottom horizontal boards |
Panel width is a target, not a fixed value. The calculator nudges it slightly up or down so the run divides evenly.
Reading the Results
| Result | What it means |
|---|---|
| Panels per wall | Whole number of frames that fit the wall |
| Actual panel width | Exact width to build or cut each panel |
| Stiles per wall | Vertical boards needed, always panels + 1 |
| Linear feet of trim | Rail, cap and baseboard length to buy |
| Panel field area | Square footage to size paint or sheet goods |
Example Problems
Example 1. A wall is 120 in long. You want a 15 in target panel width with 3 in stiles.
N = round((120 – 3) / (15 + 3)) = round(117 / 18) = round(6.5) = 7 panels. Stiles = 7 + 1 = 8. Actual panel width P = (120 – 8 x 3) / 7 = (120 – 24) / 7 = 96 / 7 = 13.71 in. So you build 7 panels at about 13.71 in wide separated by 8 stiles.
Example 2. A wall is 96 in long with a 14 in target panel and 2 in stiles.
N = round((96 – 2) / (14 + 2)) = round(94 / 16) = round(5.875) = 6 panels. Stiles = 7. Actual panel width P = (96 – 7 x 2) / 6 = (96 – 14) / 6 = 82 / 6 = 13.67 in.
FAQ
What is a stile in wainscoting? A stile is the vertical board that separates one panel from the next and frames the ends of the run. Because the panels sit between stiles, you always need one more stile than the panel count. The stile width is what the calculator treats as the spacing between panels.
Why is my actual panel width different from the width I entered? The width you enter is a target. A wall almost never divides into a whole number of panels at an exact width, so the calculator rounds to the nearest whole panel count and then recomputes the panel width so the panels and stiles fill the wall evenly. The result is a clean layout with matching panels instead of one odd-sized panel at the end.
How tall should wainscoting be? A common choice is 32 to 36 in, and many installers set the height to about one third of the wall height for balance. Chair-rail height wainscoting usually lands around 32 in, while full or three quarter height styles go taller. Enter whatever height suits the room and the calculator handles the panel and trim math from there.
