Calculate baffle cut percentage, length, or width from any two values in inch, foot, cm, or meter units for shell-and-tube exchanger design.
Related Calculators
- CV Flow Calculator
- Head Loss Calculator
- Chiller Approach Temperature Calculator
- TDH (Total Dynamic Head) Calculator
- All Construction Calculators
Baffle Cut Percentage Formula
The linear baffle cut percentage is cut-away height L divided by reference diameter W, multiplied by 100. Measure height perpendicular to the cut edge, not along its chord. Conventional shell-based definitions use shell inside diameter; follow your design specification. This is not the removed-area percentage.
To solve for the baffle cut length:
To solve for the baffle width:
- BCP = baffle cut percentage, expressed as a percent
- L = cut-away height
- W = reference diameter or width

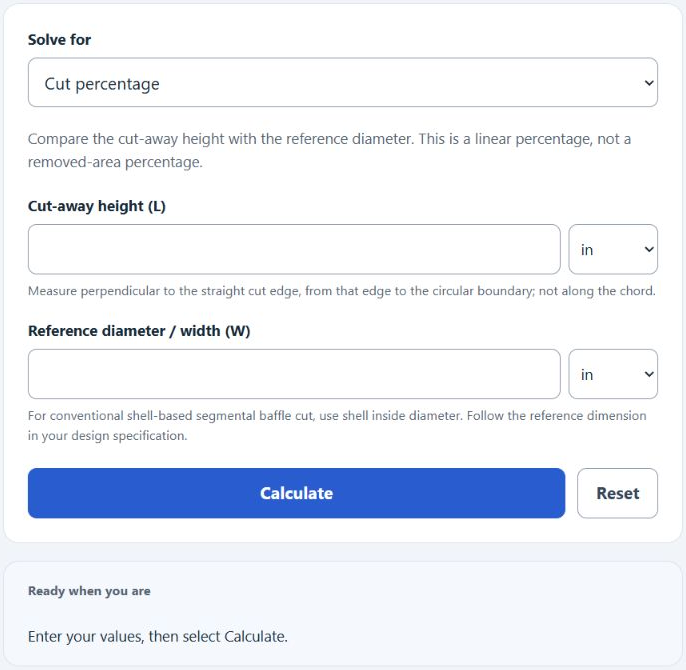

Select the value to solve for and enter the two displayed quantities. If you enter baffle cut length and baffle width, it calculates the percentage. If you enter width and percentage, it calculates the cut length. If you enter length and percentage, it calculates the required width.
Length and width can be entered in inches, feet, centimeters, or meters. The calculator converts both dimensions to the same base unit before applying the formula, then converts the result back to the selected output unit.
Illustrative Baffle Cut Percentages
| Baffle Cut Percentage | General Interpretation | Example Cut on 20 in Width |
|---|---|---|
| 15% | Relatively small cut | 3 in |
| 20% | 20% linear-height example | 4 in |
| 25% | 25% linear-height example | 5 in |
| 30% | Larger cut | 6 in |
| 40% | Large cut, check against design requirements | 8 in |
Length Unit Conversion Factors
| Unit | Equivalent in Inches | Use in Calculation |
|---|---|---|
| in | 1 in | Base unit |
| ft | 12 in | Multiply feet by 12 |
| cm | 0.3937007874 in | Multiply centimeters by 0.3937007874 |
| m | 39.3700787402 in | Multiply meters by 39.3700787402 |
Example Problems
Example 1: Calculate baffle cut percentage
You have a baffle cut length of 5 in and a baffle width of 20 in.
The baffle cut percentage is 25%.
Example 2: Calculate baffle cut length
You have a baffle width of 600 mm equivalent to 60 cm, and you want a 25% baffle cut. Using centimeters:
The baffle cut length is 15 cm.
FAQ
What does baffle cut percentage mean?
Baffle cut percentage is the cut length expressed as a percentage of the baffle width. For example, a 25% baffle cut means the cut length is one quarter of the baffle width.
Do the length and width need to use the same unit?
No. You can enter length and width using different units, such as inches for length and centimeters for width. The calculation still requires both dimensions to be compared in the same unit, so the values are converted internally before the percentage is calculated.
Can the baffle cut percentage be greater than 100%?
The calculator rejects cut height greater than the reference diameter. Check the units and dimensions. Zero and 100% are geometric endpoints, not usable design recommendations. Thermal performance, pressure drop and mechanical suitability are not assessed.
