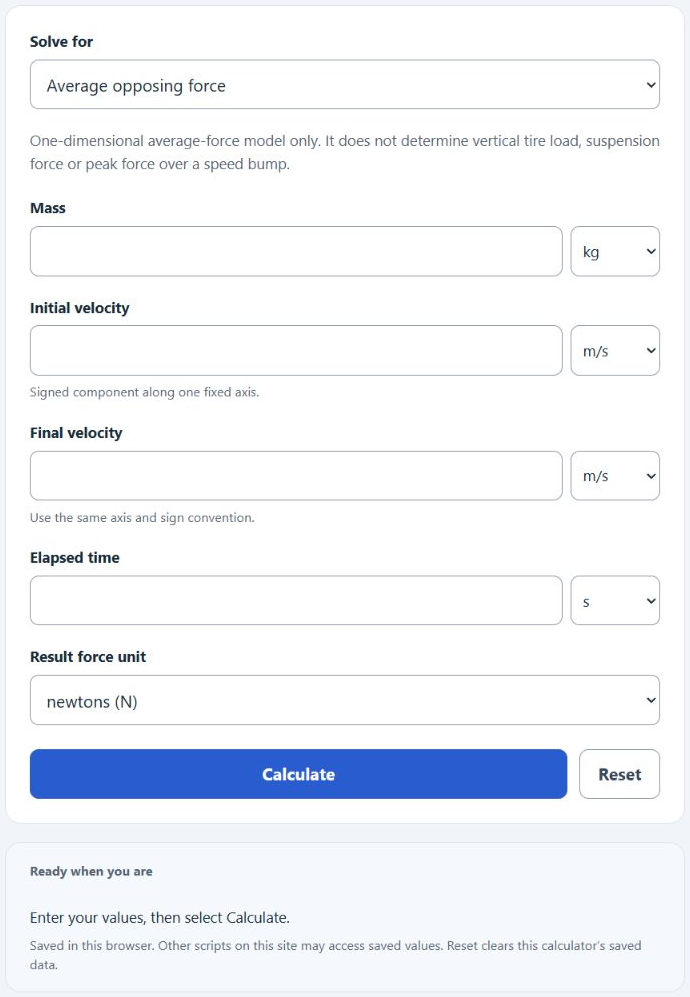

Choose average opposing force, mass, time, or velocity and enter the four known values. This one-dimensional momentum model does not calculate vertical tire load, suspension force or peak impact force.
Speed Bump Load Formula
The calculator uses the impulse-momentum relationship for a constant mass along one fixed axis. Its signed quantity F = m(vi − vf)/t is the negative of average net force along that axis. It cannot isolate speed-bump contact force from braking, gravity or other forces, or predict vertical wheel loads.
Rearranged forms used by the explicit solve modes:
- F = signed average opposing force, the negative of net force along the chosen positive axis
- m = mass
- vi = initial velocity before the speed change
- vf = final velocity after the speed change
- t = positive elapsed time for the measured velocity change
The calculator converts all inputs to base SI units before calculating: kilograms for mass, meters per second for velocity, seconds for time, and newtons for load. It then converts the answer back to the unit you selected.
Select the value to solve for, enter the remaining values and choose the result unit. Velocities and force are signed; mass and elapsed time must be positive. Unit changes convert the current quantities.
Speed Bump Load Units and Result Checks
Use these tables to check units and interpret the sign of the result.
| Quantity | Supported units | Base unit used in formula | Conversion to base unit |
|---|---|---|---|
| Mass | kg, lb | kg | 1 lb = 0.45359237 kg |
| Velocity | m/s, ft/s, mph | m/s | 1 ft/s = 0.3048 m/s; 1 mph = 0.44704 m/s |
| Time | seconds, minutes | seconds | 1 min = 60 s |
| Bump load | N, lbf | N | 1 lbf = 4.4482216152605 N |
| Condition | What it means |
|---|---|
| Initial velocity is greater than final velocity | F is positive because the signed velocity decreases; the average net force along the positive axis is negative. |
| Initial velocity equals final velocity | The calculated average net force is zero. Contact forces can still act during the interval. Mass or elapsed time cannot be uniquely recovered from zero force and no velocity change. |
| Final velocity is greater than initial velocity | F is negative because the signed velocity increases; the average net force along the positive axis is positive. |
| Shorter contact time | For the same mass and speed change, the calculated average load increases. |
Speed Bump Load Example Problems
Example 1: Calculate bump load
A 1500 kg vehicle slows from 5 m/s to 3 m/s while contacting a speed bump for 0.25 s.
The average opposing-force value is 12,000 N, about 2,698 lbf. This represents the total momentum change along the selected axis, not an isolated bump contact load.
Example 2: Calculate contact time
A 2000 lb mass changes velocity from 10 mph to 7 mph with an average opposing force of 900 lbf. Using rounded SI conversions for illustration:
- 2000 lb ≈ 907.184 kg
- 10 mph = 4.4704 m/s
- 7 mph = 3.12928 m/s
- 900 lbf ≈ 4003.399 N
The contact time is about 0.3039 seconds.
Speed Bump Load FAQ
Is the bump load the same as the vehicle weight?
No. Vehicle weight is the gravitational force on the vehicle. This calculator derives an average net-force component from a velocity change; it does not determine the vertical tire-road reaction or peak suspension force. Those require additional geometry and dynamic modeling.
Why does a shorter contact time increase the load?
The same change in momentum must happen in less time. Since force equals change in momentum divided by time, reducing the contact time increases the average force when mass and velocity change stay the same.
Should you use total vehicle mass or wheel mass?
Use the constant mass of the system whose velocity component is measured. Do not divide total vehicle mass among wheels and interpret this result as wheel contact load: suspension, tire deformation, gravity and other forces are not separated by this equation.
