Convert CFM to square feet of floor area using a typical 1 CFM per square foot rate or your own, or find the CFM needed for a room’s square footage.

1 CFM per ft² is a common rough sizing rule, not a design standard. Use your project’s rate if you have one.

Optional settings

CFM to Square Feet Formula

The following formula is used to estimate the floor area that a given airflow can serve based on a selected airflow rate per square foot.

A (ft²) = airflow (CFM) ÷ entered project rate R (CFM/ft²). The ACH alternative is A = CFM × 60 ÷ [ACH × average ceiling height (ft)].

Variables:

  • A is the estimated area in square feet (ft²)
  • CFM is the airflow in cubic feet per minute
  • R is the airflow rate in CFM per square foot

To calculate the square footage served, divide the total airflow in CFM by the desired airflow rate in CFM per square foot.

What is a CFM to Square Feet Conversion?

This calculation estimates floor area for a supplied project design rate. CFM is volume per minute and square feet is area, so there is no direct unit conversion. The example rates below illustrate the arithmetic; they are not ventilation recommendations for particular room types. Higher airflow or a lower entered rate increases the calculated area.

  • 0.5 CFM/ft²: illustrative lower rate; not a ventilation recommendation
  • 1.0 CFM/ft²: illustrative reference rate; not an office or residential standard
  • 1.5–2.0 CFM/ft²: illustrative higher rates; suitability depends on the project
  • 3.0 CFM/ft² and above: illustrative larger rate; not a prescribed level

How to Calculate CFM to Square Feet?

The following steps outline how to calculate square feet from airflow in CFM.

  1. First, determine the total airflow in cubic feet per minute (CFM).
  2. Next, choose the airflow rate requirement in CFM per square foot.
  3. Then divide the airflow by the selected airflow rate using the formula A = CFM / R.

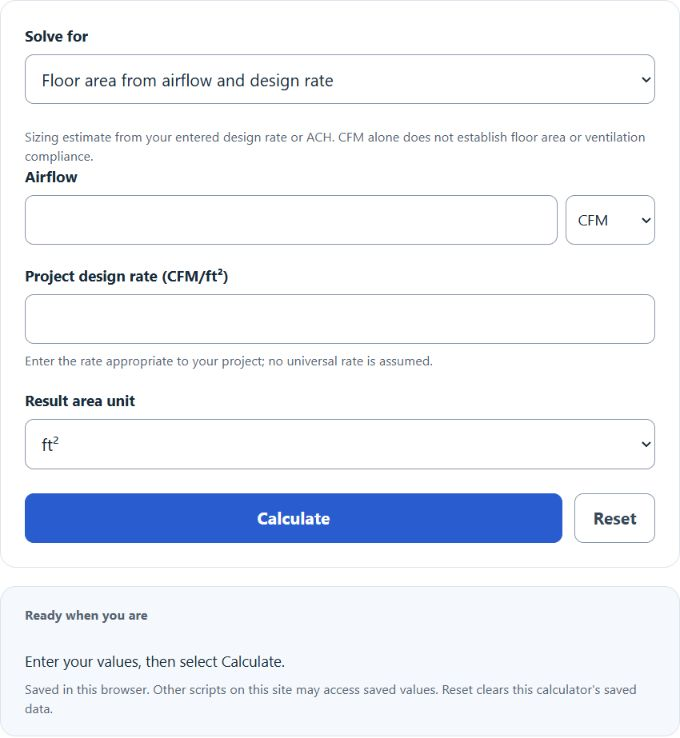

  4. After calculating the result, compare your answer with the converter above.

Example Problem:

Use the following variables as an example problem to test your knowledge.

Airflow (CFM) = 400

Airflow Rate (R) = 1.5 CFM/ft²

Area (A) = 400 / 1.5 = 266.67 ft²

CFM to Square Feet Conversion Table

The table shows floor area for an illustrative 400 CFM and five entered rate assumptions using A = CFM ÷ R. The example is not a ventilation design or code-compliance determination.

CFM per ft² Illustrative assumption Area Served by 400 CFM (ft²)
0.5 CFM/ft² Example rate 0.5 800 ft²
1.0 CFM/ft² Example rate 1.0 400 ft²
1.5 CFM/ft² Example rate 1.5 266.67 ft²
2.0 CFM/ft² Example rate 2.0 200 ft²
3.0 CFM/ft² Example rate 3.0 133.33 ft²

Ventilation design can depend on occupancy, use, pollutant sources, outdoor-air fraction and air distribution as well as floor area. Use the airflow basis and rate required for the actual project. The ACH calculation relates flow to room volume; it does not by itself establish acceptable air quality or compliance.
