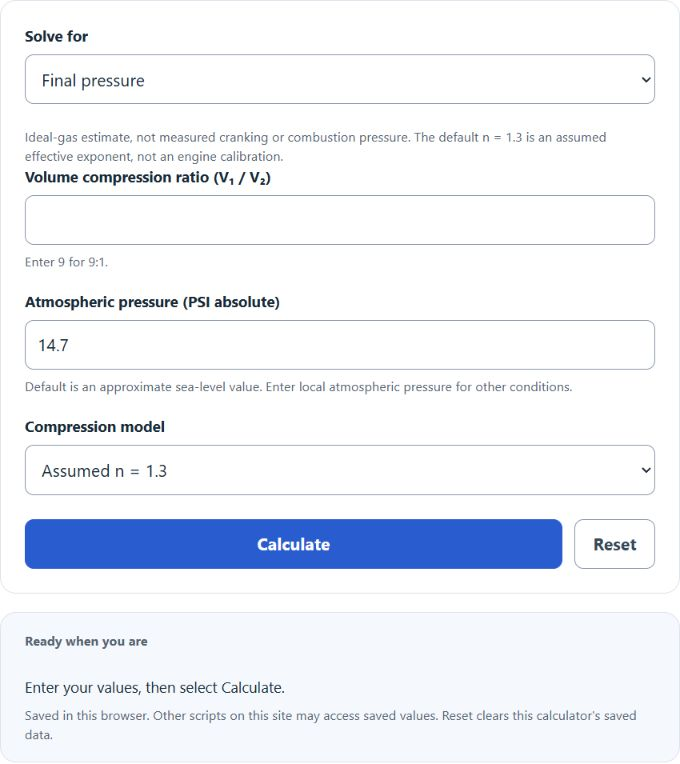

Estimate ideal-gas compression pressure from a volume compression ratio, atmospheric pressure and a selected polytropic exponent, or reverse-solve the ratio from gauge or absolute PSI. This is not a measured cranking-pressure prediction.
Compression Ratio to PSI Formula
The model uses Pabsolute = Patmosphere × rⁿ and Pgauge = Pabsolute − Patmosphere, where r is the initial/final volume ratio. The default n = 1.3 is an assumed effective exponent; n = 1 is isothermal, while n = 1.4 approximates isentropic ideal air at ordinary temperatures.
- Pcyl is the final absolute pressure
- Patm is the atmospheric pressure
- (X/Y) is the compression ratio
What is a Compression Ratio?
Compression ratio refers to the ratio of the volume of an engine cylinder when the piston is at its lowest point (bottom dead center) to the volume when the piston is at its highest point (top dead center). It is a crucial parameter in internal combustion engines, as it directly affects the engine’s performance and efficiency.
A higher compression ratio means that the air-fuel mixture in the cylinder is compressed to a smaller volume before ignition. It can improve ideal-cycle efficiency, but actual power and economy also depend on fuel, combustion control and engine design; higher compression does not guarantee either outcome.
Compression Ratio to PSI Example
How to calculate psi from compression ratio?
The following example goes over the steps required to convert a compression ratio into pounds per square inch (PSI).
The first step in determining the psi is to determine the compression ratio. In this case, the compression ratio is a simple 2:1 = 2/1 = 2.
Next, determine the pressure that the engine is working at. In this case, the engine is running at standard atmospheric pressure which is equal to 14.696 PSI at sea level.
Finally, calculate the PSI using the formula above:
Pabsolute = Patmosphere × r^n; select n = 1.4 for this example.
Pabsolute = 14.696 × 2^1.4 ≈ 38.783 PSI absolute.
Pgauge = 38.783 − 14.696 ≈ 24.087 PSI above atmosphere.
FAQ
What factors can affect the compression ratio in an engine?
Several factors can affect the compression ratio, including the piston design, the size of the combustion chamber, and any modifications made to the engine. Changes in these areas can lead to variations in the compression ratio, impacting engine performance and efficiency.
Why is a higher compression ratio beneficial for engine performance?
A higher compression ratio can improve ideal-cycle thermal efficiency, but actual performance depends on engine design, combustion control and fuel knock resistance. It does not guarantee more power or improved fuel economy.
Can converting compression ratio to PSI help in diagnosing engine issues?
This simplified model cannot diagnose engine knock, pre-ignition or a mechanical fault. Real cranking pressure also depends on valve timing, heat transfer, leakage, speed and test conditions. Compare a measured compression test with the manufacturer’s procedure and specifications.
Is there a limit to how high the compression ratio should be in an engine?
While higher compression ratios can improve engine efficiency and performance, there is a limit to how high it should be. Excessively high compression ratios can lead to engine knocking, increased wear on engine components, and other mechanical issues. The optimal compression ratio depends on the engine design, fuel type, and intended use of the vehicle.
Ideal-gas relation: Pabsolute = Patmosphere × rⁿ. Gauge pressure = Pabsolute − Patmosphere. Here r = V₁/V₂ and n is the selected polytropic exponent.
