Calculate missing rebar development length, stress, or bond stress from any 3 values, including nominal diameter and design load stress, with units.

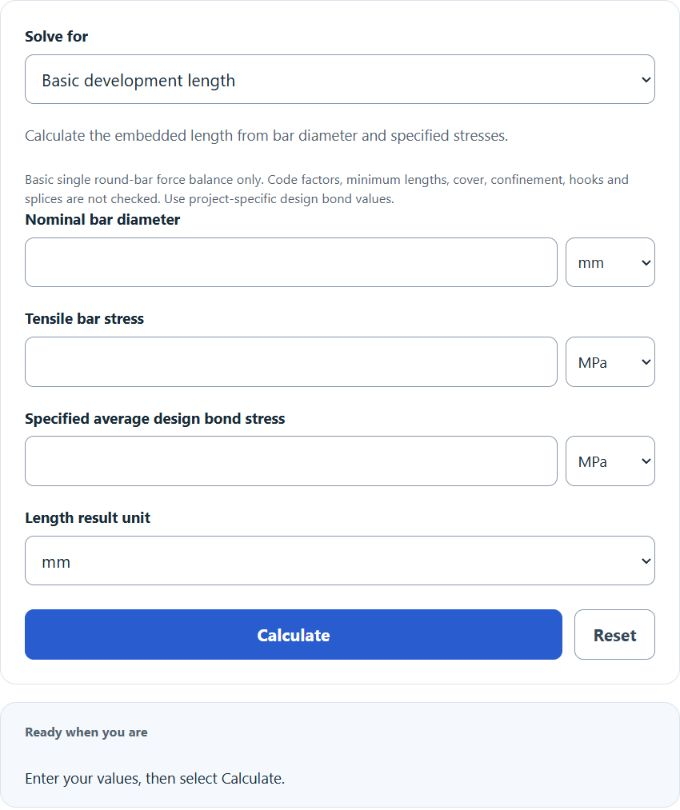

Development Length Calculator

Enter any 3 values to calculate the missing variable

Development Length Formula

The development length calculation is based on the balance between the tensile force in a reinforcing bar and the bond resistance between the bar and concrete.

L_d = (d_b*σₛ) / (4*₍bd))
  • Ld = development length
  • db = nominal diameter of the rebar
  • σs = stress in the bar at design load
  • τbd = design bond stress

The same relationship can be rearranged to solve for any missing variable:

d_b = (4*₍bd)*L_d) / σₛ
σₛ = (4*₍bd)*L_d) / d_b
₍bd) = (d_b*σₛ) / (4*L_d)

The calculator lets you enter any 3 of the 4 values. It converts the entered length units to meters and stress units to pascals, applies the appropriate rearranged formula, then converts the result back to the unit you selected.

Common Rebar Diameter Reference

Use this table to check typical nominal bar diameters before entering a value.

Bar size Nominal diameter Nominal diameter
#3 0.375 in 9.5 mm
#4 0.500 in 12.7 mm
#5 0.625 in 15.9 mm
#6 0.750 in 19.1 mm
#8 1.000 in 25.4 mm
#10 1.270 in 32.3 mm

Stress Unit Conversion Reference

The formula works when bar stress and bond stress use the same base stress unit. The calculator handles these conversions internally.

Unit Equivalent in pascals Common use
Pa 1 Pa Base SI stress unit
kPa 1,000 Pa Low stress or pressure values
MPa 1,000,000 Pa Concrete and steel design values
psi 6,894.76 Pa US customary stress values
ksi 6,894,760 Pa Rebar yield stress values in US units

Example Calculations

Example 1: Calculate development length

Suppose the nominal rebar diameter is 20 mm, the stress in the bar is 415 MPa, and the design bond stress is 1.6 MPa.

L_d = (d_b*σₛ) / (4*₍bd))
L_d = (20*415) / (4*1.6)
L_d = 1296.875 mm

The required development length is about 1296.9 mm, or 1.297 m.

Example 2: Calculate design bond stress

Suppose the nominal rebar diameter is 16 mm, the stress in the bar is 500 MPa, and the development length is 1000 mm.

₍bd) = (d_b*σₛ) / (4*L_d)
₍bd) = (16*500) / (4*1000)
₍bd) = 2 MPa

The design bond stress is 2 MPa.

FAQ

What is development length?

Development length is the length of reinforcing bar needed to transfer stress between the steel and the surrounding concrete through bond. If the embedded length is too short, the bar may not be able to reach the intended design stress before slipping or pulling out.

Why is the factor 4 used in the formula?

The factor 4 comes from comparing the tensile force in a round bar to the bond force along its perimeter. The steel force is based on the bar area, and the bond resistance is based on the surface area over the embedded length. For a circular bar, simplifying that relationship gives the term db / 4.

Can stress and bond stress be entered in different units?

Yes. You can enter bar stress and bond stress in different supported units, such as MPa and psi. The calculator converts both values to pascals before applying the formula. For manual checks, keep both stresses in compatible units and use the same length unit for diameter and development length.
