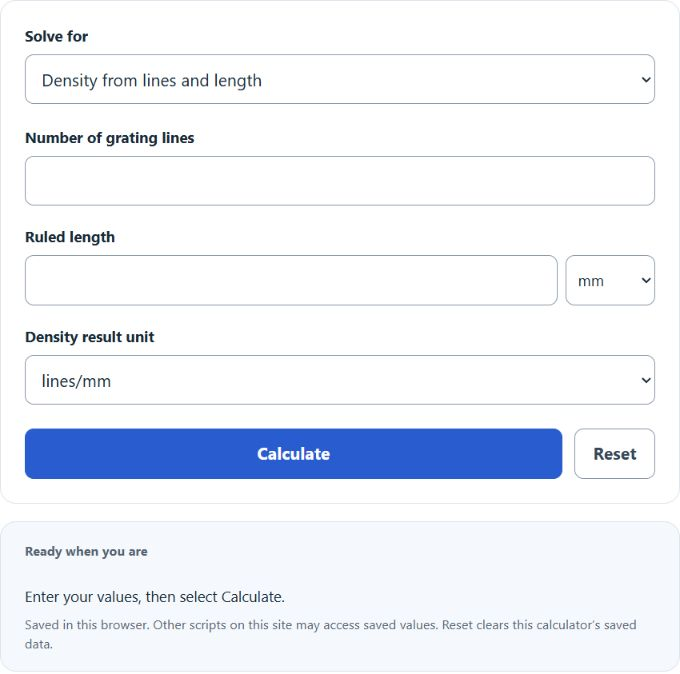

Calculate grating density, total length, or number of grating lines from any two values with unit conversions for mm, cm, m, in, and ft.
Customize This Calculator
Build your own version. Describe what you want changed, added, or compared.
- All Density Calculators
- All Construction Calculators
- Concrete Density Calculator
- Specific Volume to Density Calculator
Grating Density Formula
The grating density calculator uses the relationship between the number of grating lines, the total grating length, and the line density. In base units, length is converted to millimeters and density is converted to lines per millimeter.
- N = number of grating lines
- D = grating density, usually in lines/mm
- L = total length of the grating, usually in mm
If you enter the total length and grating density, the calculator finds the total number of grating lines. If you enter the number of lines and the grating density, it finds the required length. If you enter the number of lines and the total length, it finds the grating density.
The calculator also converts between length units and density units. For example, centimeters, meters, inches, and feet are converted to millimeters before the formula is applied.
Common Grating Density Unit Conversions
These conversions show how density units relate to lines per millimeter, which is the base unit used in the calculation.
| Density Unit | Equivalent in lines/mm |
|---|---|
| 1 line/mm | 1 line/mm |
| 1 line/cm | 0.1 lines/mm |
| 1 line/m | 0.001 lines/mm |
| 1 line/in | 0.03937 lines/mm |
| 1 line/ft | 0.003281 lines/mm |
Length Unit Conversions Used for Grating Calculations
Length is converted to millimeters before calculating density or line count.
| Length Unit | Equivalent in millimeters |
|---|---|
| 1 mm | 1 mm |
| 1 cm | 10 mm |
| 1 m | 1000 mm |
| 1 in | 25.4 mm |
| 1 ft | 304.8 mm |
Example Problems
Example 1: Find the number of grating lines
You have a grating that is 50 mm long with a density of 600 lines/mm.
The grating has 30,000 lines.
Example 2: Find the grating density
You have 12,000 grating lines spread across a total length of 2 cm.
First convert 2 cm to millimeters:
Then calculate density:
The grating density is 600 lines/mm.
FAQs
What does grating density mean?
Grating density is the number of lines or grooves per unit of length. A density of 600 lines/mm means there are 600 grating lines in every millimeter of length.
How do you calculate grating density?
Divide the number of grating lines by the total grating length. For example, if a grating has 10,000 lines over 25 mm, the density is 10,000 ÷ 25 = 400 lines/mm.
Why do units matter in a grating density calculation?
The length and density units must match. If density is in lines/mm, the length should be in mm before multiplying or dividing. If you use centimeters or inches, convert them first or use the unit selector to handle the conversion.
