Calculate circular head gasket volume from bore or circumference and compressed thickness, or estimate static compression ratio using measured engine geometry.
Head Gasket Volume Formula
The following formula is used to calculate the head gasket volume (per cylinder) added by the gasket thickness and gasket bore (approximating the gasket opening as a cylinder).
- Where HGV is the head gasket volume (in^3) per cylinder
- B is the gasket bore (diameter) (in)
- T is the compressed thickness (in)
How to Calculate Head Gasket Volume?

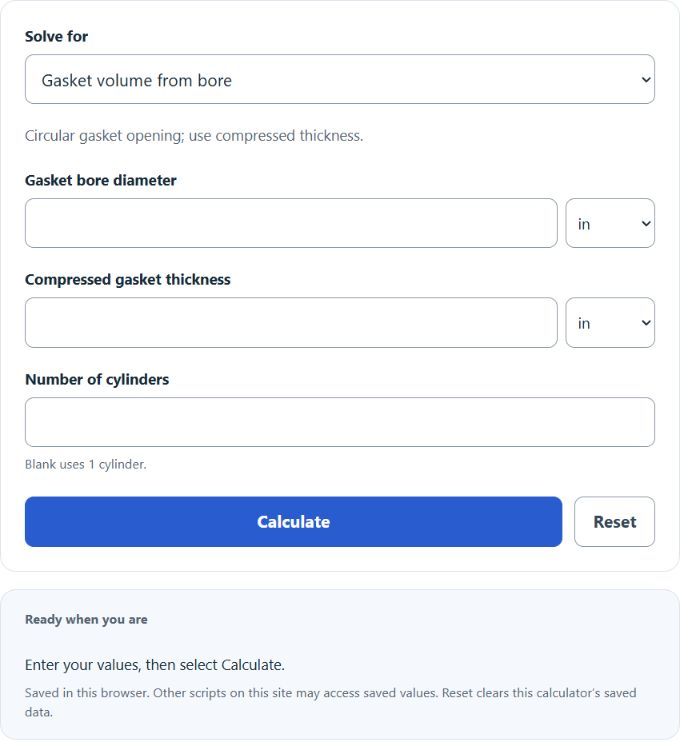

The following example uses the Gasket volume from bore mode. Enter the dimensions and their units; number of cylinders is optional and blank uses one. In Static compression ratio mode, blank deck and piston volumes use zero; a positive piston volume is a dome and a negative volume is a dish. Nominal quench distance is a geometry estimate, not an assembled clearance check.
Example Problem #1
- First, determine the compressed thickness (in).
- The compressed thickness (in) is given as 0.25.
- Next, determine the gasket bore (diameter) (in).
- The gasket bore (in) is given as 4.
- Finally, calculate the head gasket volume using the formula above.
HGV = (pi/4) * B^2 * T
Inserting the values from above yields:
HGV = (pi/4) * 4^2 * 0.25 = 3.142 (in^3)
FAQ
What is a head gasket and why is its volume important?
A head gasket is a critical sealing component found between the engine block and the cylinder head in an internal combustion engine. Its primary function is to seal the cylinders to ensure maximum compression and avoid leakage of coolant or engine oil into the cylinders. The volume associated with the head gasket (from its bore and compressed thickness) is important because it affects the compression ratio of the engine, which in turn influences the engine's efficiency, performance, and emissions.
How does changing the thickness of a head gasket affect engine performance?
Changing the thickness of a head gasket can alter the engine's compression ratio. A thicker gasket increases the volume between the cylinder and the piston at top dead center, lowering the compression ratio. Power, efficiency and emissions also depend on combustion, tuning and operating conditions. A thinner gasket raises the geometric compression ratio but reduces nominal piston-to-head clearance; verify manufacturer clearance and fuel requirements before changing gasket thickness.
Can I calculate the head gasket volume for any engine type using this formula?
The formula used here (HGV = (ฯ/4) ยท Bยฒ ยท T) is applicable when the gasket opening is reasonably approximated as a circle (where B is the gasket bore diameter and T is the compressed thickness). For engines with non-circular or complex sealing shapes, you may need a different method (for example, using the actual measured area of the gasket opening and multiplying by thickness).
