Convert kilowatts to dBW, dBm, or dBkW and calculate the matching decibel level from a power input using the selected reference value.

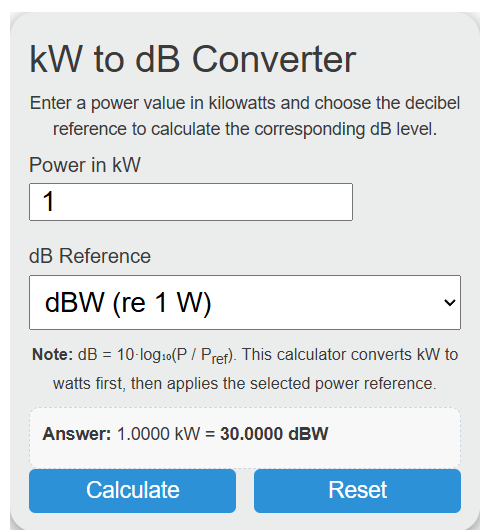

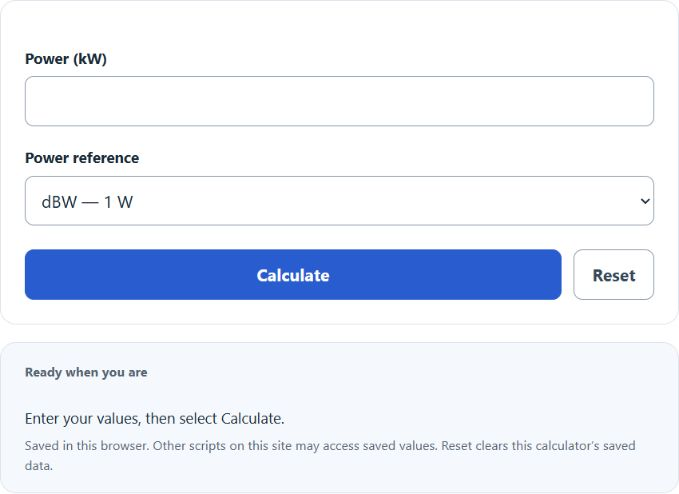

kW to dB Converter

Enter a power value in kilowatts and choose the decibel reference to calculate the corresponding dB level.

Note: dB = 10·log₁₀(P / Pref). This calculator converts kW to watts first, then applies the selected power reference.

kW to dB Formula

The following formula is used to convert a power level into decibels relative to a selected reference power.

dB = 10 log10(P / P_ref)

When the power is entered in kilowatts, first convert it to watts using:

P(W) = 1000 × kW

Variables:

  • dB is the decibel power level
  • P is the power in watts
  • Pref is the reference power in watts

To calculate the decibel value, convert kilowatts to watts, divide by the selected reference power, and take 10 times the base-10 logarithm of that ratio.

What is kW to dB Conversion?

kW to dB conversion changes a linear power measurement into a logarithmic one. Kilowatts measure actual power directly, while decibels show how large that power is relative to a chosen reference. This is useful in radio frequency systems, amplifiers, transmitters, and signal analysis because logarithmic scales make it easier to compare very large or very small power values.

Common references include 1 watt for dBW, 1 milliwatt for dBm, and 1 kilowatt for dBkW.

  • For dBW: dBW = 10 log10(P[W])
  • For dBm: dBm = 10 log10(P[W] / 0.001) = dBW + 30
  • For dBkW: dBkW = 10 log10(P[W] / 1000)

How to Convert kW to dB?

The following steps outline how to convert kilowatts to decibels.

  1. First, determine the power level in kilowatts.
  2. Next, convert the power from kilowatts to watts by multiplying by 1000.
  3. Select the desired reference power, such as 1 W for dBW, 1 mW for dBm, or 1 kW for dBkW.
  4. Apply the formula dB = 10 log10(P / Pref).
  5. Check your result with the calculator above.

Example Problem:

Use the following variables as an example problem to test your knowledge.

Power = 1 kW

Power in watts = 1000 W

dBW = 10 log10(1000 / 1) = 30 dBW

dBm = 10 log10(1000 / 0.001) = 60 dBm

dBkW = 10 log10(1000 / 1000) = 0 dBkW

kW to dB Conversion Table

The following table shows several example conversions from kilowatts to watts, dBW, and dBm.

Power (kW) Power (W) Level in dBW Level in dBm
0.001 kW 1 W 0 dBW 30 dBm
0.01 kW 10 W 10 dBW 40 dBm
0.1 kW 100 W 20 dBW 50 dBm
1 kW 1000 W 30 dBW 60 dBm
10 kW 10,000 W 40 dBW 70 dBm

In practical applications, engineers may switch between kW, W, dBW, and dBm depending on the system being analyzed. Understanding the kW to dB relationship makes it easier to compare equipment ratings and signal power across different formats.
