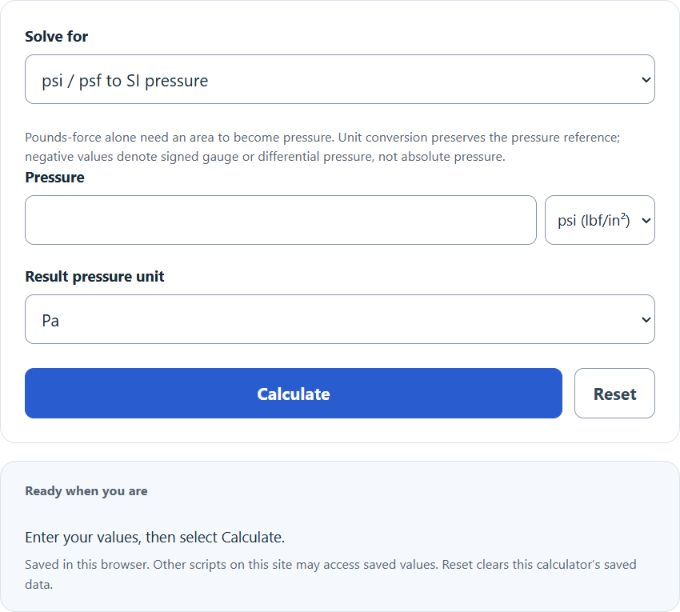

Convert psi and psf to Pa, or Pa to psi, psf, kPa, MPa and bar, and find pressure from force and area with this lbs to pascals calculator.
Lbs to Pascals Formula
- psi — pounds-force per square inch (lbf/in²)
- psf — pounds-force per square foot (lbf/ft²)
- F — force in newtons (1 lbf ≈ 4.4482216 N)
- A — area in square meters
- Pa — pascal, equal to 1 N/m²
“Lbs” in pressure context refers to pounds-force, not pounds-mass. The conversion is exact under standard gravity (9.80665 m/s²). Use psi when the area is given in square inches and psf when in square feet. For raw force divided by area, convert both to SI units before dividing.
Reference Tables
Common psi values converted to pascals and related SI units:
| psi | Pa | kPa | bar |
|---|---|---|---|
| 1 | 6,894.76 | 6.895 | 0.0689 |
| 14.7 (approximately 1 atm) | 101,353 | 101.35 | 1.013 |
| 30 | 206,843 | 206.84 | 2.068 |
| 100 | 689,476 | 689.48 | 6.895 |
| 500 | 3,447,379 | 3,447.38 | 34.47 |
| 1000 | 6,894,757 | 6,894.76 | 68.95 |
Illustrative pressure contexts; atmospheric pressure is absolute, while duct, tire and hydraulic readings are commonly gauge or differential. Unit conversion preserves that reference and does not add atmospheric pressure:
| Range | Typical context |
|---|---|
| < 1 kPa | Duct static pressure, small fans |
| ~101 kPa | Sea-level atmospheric pressure |
| 200–500 kPa | Tire and water-system pressures |
| 1–10 MPa | Hydraulic systems, boilers |
| > 10 MPa | High-pressure industrial equipment |
Worked Examples
Example 1 — psi to Pa: Convert 25 psi to pascals.
25 × 6894.757293 = 172,368.93 Pa (≈ 172.37 kPa).
Example 2 — Force and area: A 500 lbf load rests on a 4 in² pad.
F = 500 × 4.4482216 = 2224.11 N. A = 4 × 0.00064516 = 0.00258064 m². P = 2224.11 / 0.00258064 = 861,845 Pa (≈ 0.862 MPa or 125 psi).
Example 3 — psf to Pa: A roof load of 40 psf equals 40 × 47.880259 = 1,915.21 Pa.
FAQ
Is “lbs” the same as lbf? No. lb measures mass; lbf measures force. Pressure units like psi and psf mean lbf per unit area. Mass alone cannot be converted to pascals.
Why is 1 psi not exactly equal to a round number of pascals? The inch and pound-force have exact metric definitions (1 in = 0.0254 m, 1 lbf = 4.4482216152605 N). Their ratio gives an exact rational conversion factor with a repeating decimal expansion; 6894.757293 Pa/psi is rounded.
How do I convert pascals back to psi? Divide by 6894.757293. For example, 101,325 Pa ÷ 6894.757293 ≈ 14.696 psi.
