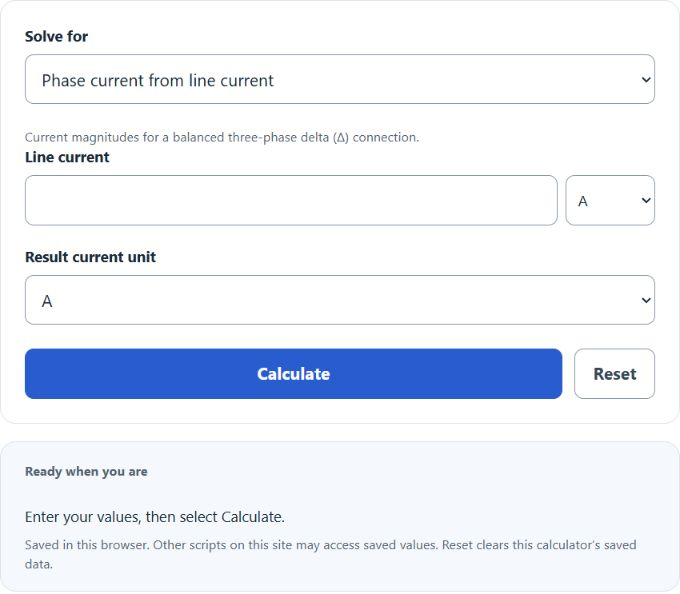

Enter the line current (amps) for a balanced 3‑phase delta (Δ) system into the calculator to determine the phase (winding) current.
- All Physics Calculators
- All Electrical Calculators
- 3 Phase Current Calculator
- Line Current Calculator
Phase Current From Line Current Formula (3‑Phase Δ)
The following formula is used to calculate the phase current from the line current in a balanced 3‑phase delta (Δ) connection.
Ip = IL / SQRT(3)
- Where Ip is the phase (winding) current (amps)
- IL is the line current (amps)
To calculate the phase current in a balanced delta (Δ) system, divide the line current by the square root of 3. (In a balanced wye (Y) system, the line current equals the phase current: Ip = IL.)
| Line Current (A) | Phase Current (A) |
|---|---|
| 0.5 | 0.289 |
| 1 | 0.577 |
| 2 | 1.155 |
| 3 | 1.732 |
| 5 | 2.887 |
| 7.5 | 4.330 |
| 10 | 5.774 |
| 12 | 6.928 |
| 15 | 8.660 |
| 20 | 11.547 |
| 25 | 14.434 |
| 30 | 17.321 |
| 40 | 23.094 |
| 50 | 28.868 |
| 60 | 34.641 |
| 75 | 43.301 |
| 100 | 57.735 |
| 150 | 86.603 |
| 200 | 115.470 |
| 300 | 173.205 |
| *Balanced 3-phase Δ system: I_phase = I_line ÷ √3 ≈ I_line ÷ 1.732. | |
How to Calculate Phase Current From Line Current?
The following example problem outlines how to calculate the phase current from line current in a balanced 3‑phase delta (Δ) system.
Example Problem #1:
- First, determine the line current (amps). In this example, the line current is measured to be 61 A.
- Finally, calculate the phase current using the formula above:
Ip = IL / SQRT(3)
Inserting the values from above and solving the equation with the input values gives:
Ip = 61 / SQRT(3) = 35.22 (amps)
FAQ
What is the significance of using the square root of 3 in calculating phase current from line current?
The √3 factor comes from the 120° phase displacement in a balanced 3‑phase system and the way line quantities are formed from phase quantities (phasor/vector relationships). Which quantity gets the √3 factor depends on the connection:
- Delta (Δ): current relationship: Iline = √3 · Iphase (so Iphase = Iline/√3)
- Wye (Y): voltage relationship: Vline = √3 · Vphase (while Iline = Iphase)
Can the formula for calculating phase current from line current be used for single-phase systems as well?
No, the formula Ip = IL / SQRT(3) is specifically designed for balanced three-phase delta (Δ) power systems. In single-phase systems, the line current is equal to the phase current, so this formula does not apply. Single-phase systems do not involve the √3 factor because they do not have the same 3-phase (120°) relationships.
How does the phase current calculation impact electrical engineering and design?
Calculating phase current from line current is crucial in electrical engineering and design for several reasons. It helps in the proper sizing of electrical components such as wires, transformers, and circuit breakers, ensuring they can handle the expected current load without overheating or failing. Additionally, understanding the relationship between line and phase currents is essential for the efficient distribution of power in three-phase systems, which are commonly used in industrial and commercial settings due to their efficiency and stability.
