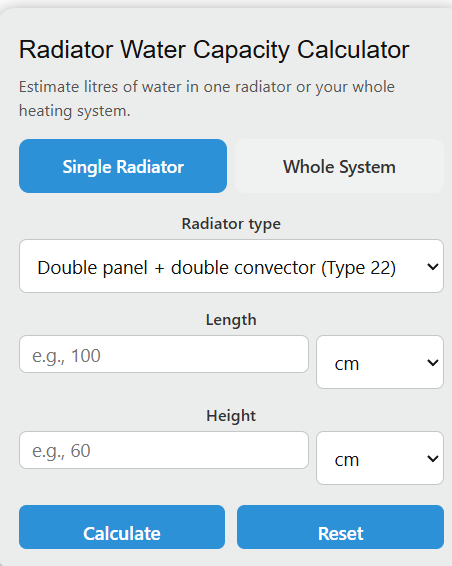

Enter the radiator details into the calculator to estimate water capacity (or a related missing dimension). For the most accurate value, use the manufacturer’s published “water content” when available.
Related Calculators
- Fuel Tank Capacity Calculator
- Oil Change Calculator
- Internal Car Temperature Calculator
- Supercharger RPM Calculator
- All Automotive Calculators
Radiator Water Capacity Formula
In the Basic tab, the calculator uses a simple rectangular-volume approximation (useful only if you have a reasonable estimate of the effective internal water depth).
WRC \approx (L \times H \times D) / 1000
- Where WRC is the estimated water volume (liters)
- L is the length (cm)
- H is the height (cm)
- D is the effective internal water depth used for the approximation (cm)
To calculate the rectangular-approximation water volume, multiply the dimensions in centimeters to get cm³, then divide by 1000 to convert cm³ to liters. For most real radiators, manufacturer water-content data (or a radiator-type-specific estimate such as the Panel Radiator or Cast Iron Sections tabs) is more reliable than a simple box approximation.
What is a Radiator Water Capacity?
Definition:
Radiator water capacity (also called water content) is the amount of water/coolant the radiator holds internally when filled. It depends on the radiator’s internal channels and construction, so it is typically best obtained from the manufacturer’s specifications or estimated using radiator-type data (for example, liters per section for cast iron radiators).
How to Calculate Radiator Water Capacity?
Example Problem:
The following example outlines the steps and information needed to calculate a rectangular-approximation water volume (Basic tab).
First, determine the length. In this example, the length is 120 cm.
Next, determine the height. In this example, the height is 50 cm.
Then, choose an effective internal water depth for the approximation. In this example, D = 3 cm.
Finally, calculate the water volume using the formula above:
WRC ≈ (L × H × D) / 1000
WRC ≈ (120 × 50 × 3) / 1000
WRC ≈ 18 liters
FAQ
Why does the Basic tab use an “effective depth” input?
A true radiator’s water capacity depends on internal channels/tubes and cannot be determined reliably from external height and length alone. The Basic tab is a simple rectangular-volume approximation, so it requires an assumed effective internal depth. If you want a radiator-type-specific estimate, use the Panel Radiator or Cast Iron Sections tabs, or check manufacturer specifications.
How accurate is the calculated water capacity?
Accuracy depends on the method. The Panel and Cast Iron tabs use typical water-content estimates for those radiator categories (still not universal). The Basic tab is a rough geometric approximation and can be significantly different from a real radiator’s internal water content.
Can this formula be used for all types of radiators?
No. The rectangular-approximation formula is not a general radiator water-content formula. Different radiator designs (panel, column/cast iron, convectors, fan coils, etc.) have different internal volumes, so manufacturer water-content data or a type-specific estimate is recommended.
