Calculate reflected points across the x-axis, y-axis, origin, y = x, y = -x, x = k, or y = k for single points or lists of coordinates at once.

Reflection Rule Formula

The following formula is used to calculate the coordinates of a point after reflection.

For reflection in the x-axis: R(x, y) = (x, -y)

For reflection in the y-axis: R(x, y) = (-x, y). For reflection in the line y = x: R(x, y) = (y, x). Variables:

  • R(x, y) is the reflected point
  • (x, y) is the original point

To calculate the reflection of a point in the x-axis, keep the x-coordinate the same and change the sign of the y-coordinate. For reflection in the y-axis, change the sign of the x-coordinate and keep the y-coordinate the same. For reflection in the line y = x, swap the x and y coordinates.

How to Find the Line of Reflection

Select Find line of reflection and enter the original point (x, y) and its reflected point (xโ€ฒ, yโ€ฒ). The mirror line is the perpendicular bisector of the segment between them. It crosses the segment at its midpoint, M = ((x + xโ€ฒ) รท 2, (y + yโ€ฒ) รท 2).

For points with different y-coordinates, the mirror slope is m = โˆ’(xโ€ฒ โˆ’ x) รท (yโ€ฒ โˆ’ y). The line through the midpoint has equation y = mx + b, where b = My โˆ’ mMx. A horizontal segment gives a vertical mirror line x = Mx, and a vertical segment gives a horizontal mirror line y = My. If the points coincide, any line through that point leaves it in place, so there is no unique mirror line.

For example, (2, 1) and (6, 3) have midpoint (4, 2) and mirror slope โˆ’2. Their line of reflection is y = โˆ’2x + 10.

Graphing Reflections

In Single point or Multiple points, the result plots the original coordinates as circles and their images as squares. The dashed line shows the mirror. For the Origin option, the cross marks the center of the 180ยฐ rotation. If a point stays in place, its two markers overlap. In Multiple points mode, read the coordinate table for the values of each pair.

What is a Reflection Rule?

A Reflection Rule in mathematics, specifically in geometry, refers to a transformation that creates a mirror image of a shape or figure across a specific line of reflection. This rule states that each point of the original figure and its image are the same distance from the line of reflection. Essentially, the line of reflection acts as a mirror where the original figure and its reflection are identical in size and shape, but are opposite in orientation. The calculatorโ€™s origin option is a point reflection: a 180ยฐ rotation that preserves orientation, rather than a reflection across a line.

How to Calculate Reflection Rule?

The following steps outline how to calculate the Reflection Rule using the given formula:

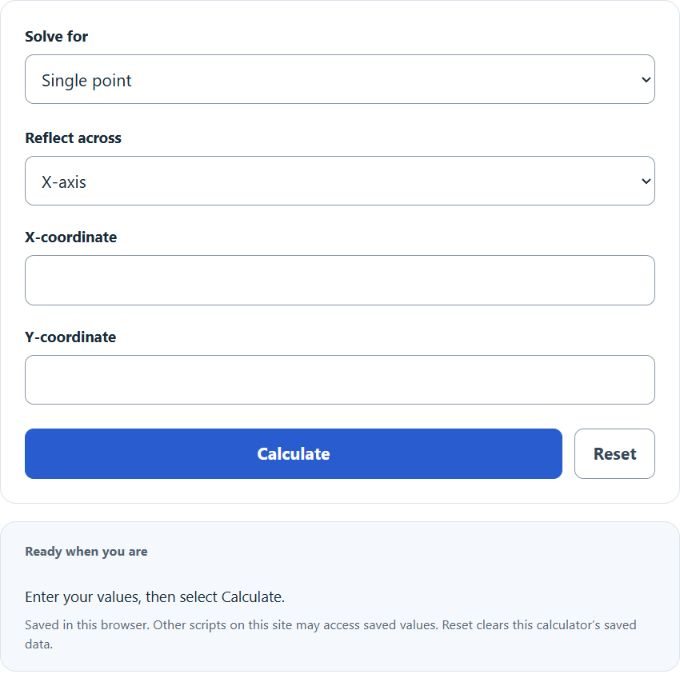

  1. First, select the transformation and single-point or multiple-point mode. For x = k or y = k, enter the line constant k.
  2. Next, enter the original point (x, y), or one coordinate pair per line in Multiple points mode.
  3. Apply the corresponding formula to calculate the reflected point (R(x, y)).
  4. Finally, determine the coordinates of the reflected point (R(x, y)).
  5. After applying the formula and calculating the result, check your answer with the given examples.

Example Problem:

Use the following variables as an example problem to test your knowledge:

Type of reflection: Reflection in the x-axis

Original point (x, y) = (3, 5)

Apply the formula: R(x, y) = (x, -y)

Reflected point (R(x, y)) = (3, -5)
