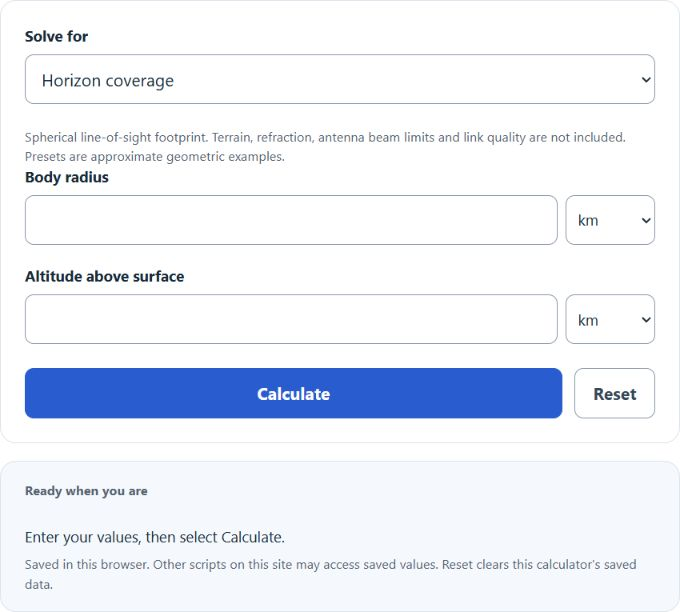

Calculate satellite coverage area, coverage percentage, footprint range, diameter, and central angle from body radius, altitude, and elevation angle.

Spherical line-of-sight footprint. Terrain, refraction, antenna beam limits and link quality are not included. Presets are approximate geometric examples.

Satellite Coverage Area Formula

The following two example problems outline the steps and information needed to calculate the Satellite Coverage Area.

p = 50d / (R + d); area = 2πR²(1 − cos α); α = acos(R / (R + d))

Variables:

  • p is the percentage of the whole spherical surface visible at the geometric horizon (0° minimum elevation)
  • R is the radius of the sphere/Earth
  • d is the distance of the satellite from the surface

Choose the value to solve for, then enter the visible inputs in consistent units. Horizon coverage is p = 50d/(R+d) percent. Surface area is 2πR²(1 − cos α). For minimum elevation e, α = acos([R/(R+d)] cos e) − e, with angles in radians. This spherical geometric footprint excludes terrain, atmospheric refraction, antenna beam limits and link quality.

How to Calculate Satellite Coverage Area?

The following steps outline how to calculate the Satellite Coverage Area.

  1. First, determine the radius of the sphere/Earth.
  2. Next, determine the distance of the satellite from the surface.
  3. Next, use horizon coverage p = 50d/(R+d), with R and d in the same units.
  4. Finally, calculate the Satellite Coverage Area.
  5. After inserting the variables and calculating the result, check your answer with the calculator above.

Example Problem :

Use the following variables as an example problem to test your knowledge.

radius of the sphere/Earth = 300

distance of the satellite from the surface = 200

p = 50 × 200/(300+200) = 20%. The central half-angle is acos(0.6) ≈ 53.1301° and the spherical surface cap area is 72,000π ≈ 226,194.6711 square units.
