Calculate well water flow rate in gallons per minute from a bucket fill test or pressure tank refill time, with results in GPM, L/min or m³/h.

Optional settings

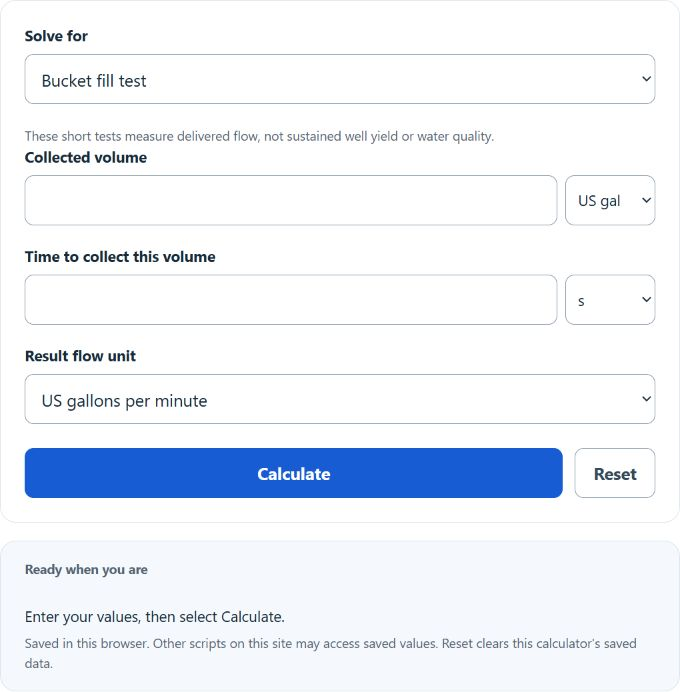

Calculator Functions

FunctionWhat it doesWhat it requires
Bucket fill testFinds the delivery rate at an outlet from a timed container fillRequires the collected volume and the time taken to collect it
Pressure-tank refill testFinds the average rate at which the pump refills the pressure tankRequires the usable tank drawdown volume and the pump-on refill time

Volume can be entered in US gallons or liters and time in seconds or minutes. The result is shown in US gallons per minute, liters per minute, cubic meters per hour or US gallons per hour, with the other three listed beside it.

Well Water Flow Rate Formulas

Q = V ÷ t × 60
QFlow rate (US gallons per minute)
VVolume of water measured (US gallons)
tTime taken (seconds)

Bucket fill test

V is the water collected and t is the fill time. A 5-gallon bucket that fills in 30 seconds is 5 ÷ 30 × 60 = 10 gallons per minute. The extension procedure uses a bucket with a marked 5-gallon line and a timer, and divides the volume by the fill time in minutes [1]. A long hose, or one narrower than the pipe, restricts the flow, and the rate is highest when nothing else is drawing water from the system [1].

Pressure-tank refill test

V is the water the tank delivers between the pump switching off and switching back on, and t is how long the pump then runs to refill the tank with every outlet closed. Only about 20 percent of a pressure tank’s capacity is usable water: a 42-gallon tank delivers about 8 gallons before the pump starts [2]. A pump that refills those 8 gallons in 60 seconds is delivering 8 ÷ 60 × 60 = 8 gallons per minute. Entering the tank’s full capacity, or timing the whole off-and-on cycle, gives a wrong rate.

Limits of This Estimate

  • Both tests measure what the pump and plumbing deliver over a few minutes. Well yield is the highest rate a well can be pumped without drawing the water level down to the pump intake [2], and only a sustained pumping test shows it.
  • A water system is adequate when it can meet peak demand for at least two hours. A low-yielding well can still do that with enough storage [2].
  • The refill test does not work on a variable-speed or constant-pressure pump, or while a leak or an open tap is drawing water.
  • One US gallon is 3.785411784 liters. The tests say nothing about water quality.
  • The pressure-tank refill test is a field shortcut and not a standardized procedure. These estimates are based on the best available data and estimations.

Sources

  1. Alabama Cooperative Extension System, NPTC Tools of the Trade: Measuring Water Flow Rate: the bucket test: marked 5-gallon bucket, timed fill, volume divided by time, and what restricts the reading
  2. Penn State Extension, Using Low-Yielding Wells: what well yield means, usable water in a pressure tank, and meeting peak demand
